Polaris™ Ins 2 Port 3/0 OS
SKU: #305244
Part: #ITO-3/0
UPC: 662381950062
Polaris™ Ins 2 Port 3/0 OS
SKU: #305244
Part: #ITO-3/0
UPC: 662381950062
Description

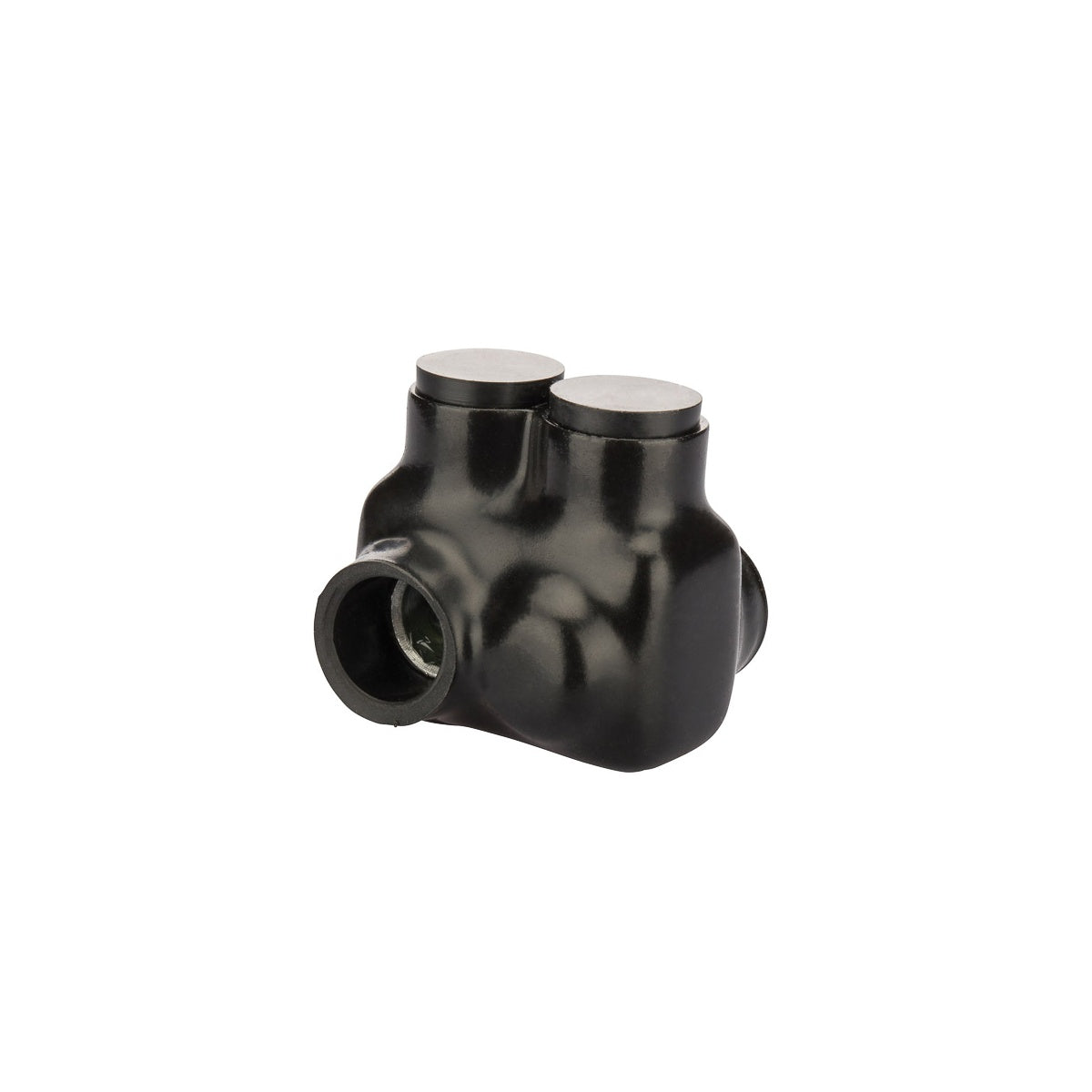

Polaris™ Ins 2 Port 3/0 OS Wire Termination Connector
The Polaris™ Insulated Tap Connector, model ITO-3/0, is designed for wire termination applications in electrical distribution and lighting solutions. It provides a secure, dual-port connection for 3/0 to 6 AWG Class B & C wires, suitable for use by electrical distributors and switchgear suppliers requiring reliable wire and cable connections. The connector features plastisol insulation and an aluminum body, offering abrasion and chemical resistance with UV stability, supporting use in environments rated up to 90°C.
Specifications
- Application: Wire Termination
- Number of Conductors: 2
- Number of Poles: 1
- Wire Type: Class B & C
- Material: Aluminum
- Finish: Plastisol Insulated
- Color: Black
- Length: 1.84 in
- Width: 1.87 in
- Height: 1.87 in
- Product Weight: 0.1900 lb
- Environmental Conditions: 90 °C
- Manufacturer: NSI Industries
- Manufacturer Part #: ITO-3/0
- UL Listing: UL 486B Wire Connector (Dry location)
- Temperature Rating: Rated 600V, 90 °C, cold temperature rated to -45 °C
Features
- Dual rated for use with copper and aluminum cables
- Pre-insulated with plastisol for abrasion and chemical resistance
- UV resistant and will not support combustion
- Off-set dual-sided entry design for flexible wire connection
- Suitable for connecting two wires from opposite sides of the connector
