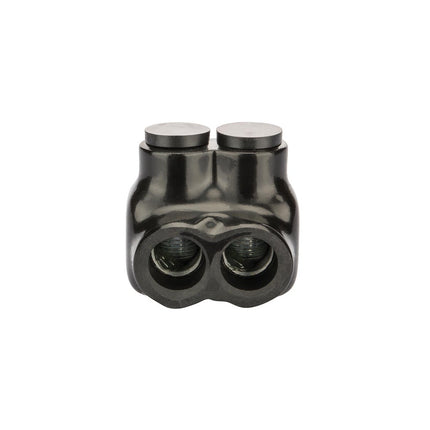

Polaris™ Ins 2 Port 3/0
SKU: #305193
Part: #IT-3/0
UPC: 662381950055
Polaris™ Ins 2 Port 3/0
SKU: #305193
Part: #IT-3/0
UPC: 662381950055
Description

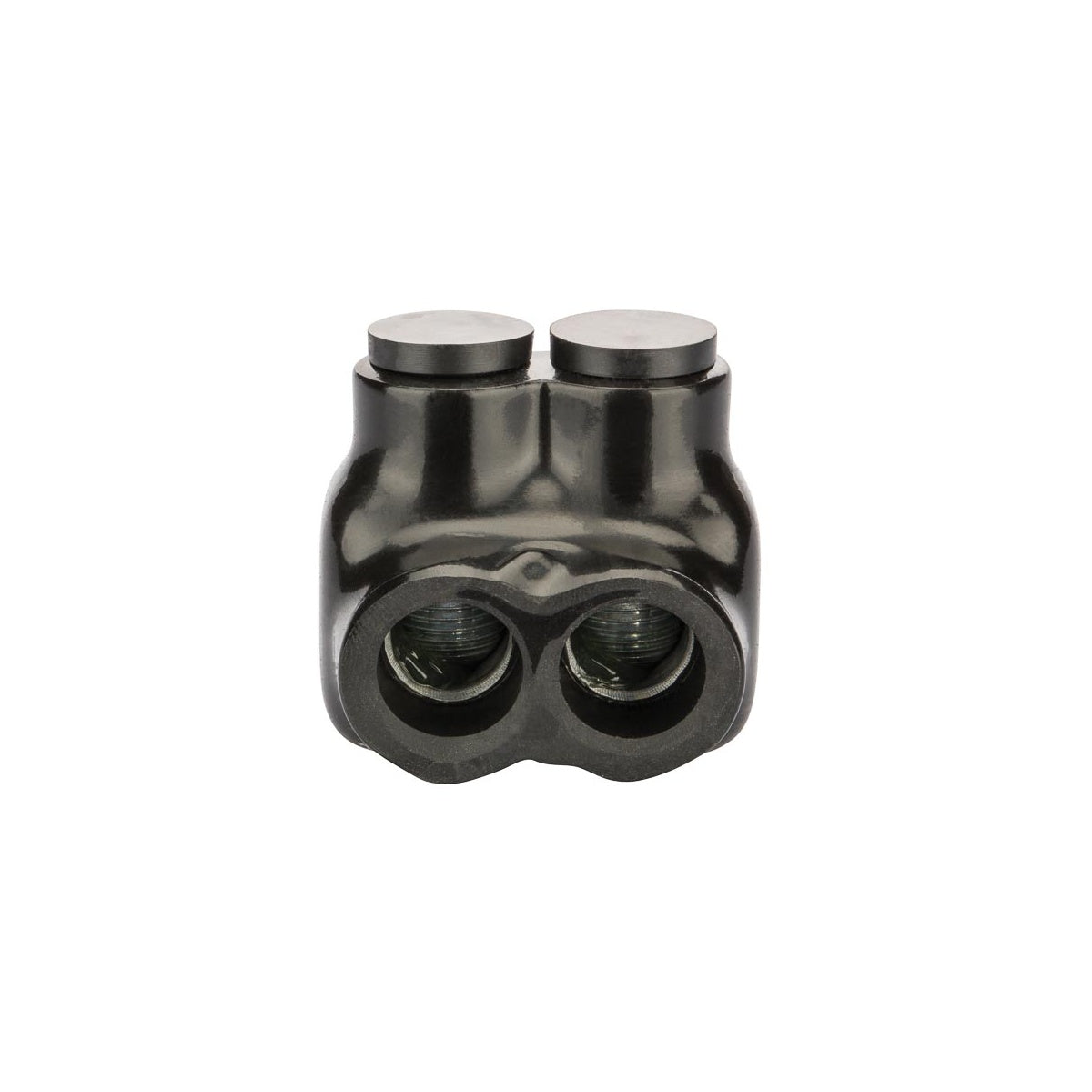

Polaris™ Ins 2 Port 3/0 Pre-Insulated Tap Connector
The Polaris™ Ins 2 Port 3/0 is a pre-insulated tap connector designed for wire termination applications. Manufactured by NSI Industries, this connector supports dual-rated copper and aluminum cables (Class B & C) and is suitable for use by electrical distributors and switchgear suppliers requiring reliable wire and cable connections. It is engineered for secure, abrasion-resistant, and UV-resistant connections in dry locations, rated for operation up to 90°C and 600V.
Specifications
- Application: Wire Termination
- Material: Aluminum
- Finish: Plastisol Insulated
- Color: Black
- Number of Conductors: 2
- Number of Poles: 1
- Wire Type: Class B & C (Dual rated for copper and aluminum cables)
- Environmental Conditions: 90°C temperature rating
- Dimensions (L x W x H): 1.84 in x 1.75 in x 1.87 in
- Product Weight: 0.1900 lbs
- Manufacturer Part #: IT-3/0
- UL Listing: UL Listed 486B Wire Connector (Dry location)
Features
- Insul-Tap connector suitable for connecting two wires
- Single-sided entry for wire connection
- Abrasion and chemical resistant
- UV resistant
- Will not support combustion
- Cold temperature rated to -45°C
