Polaris™ Ins 2 Port 250
SKU: #305187
Part: #IT-250
UPC: 662381950079
Polaris™ Ins 2 Port 250
SKU: #305187
Part: #IT-250
UPC: 662381950079
Total Price: $33.62 per each Sold in increments of 1 each
Description

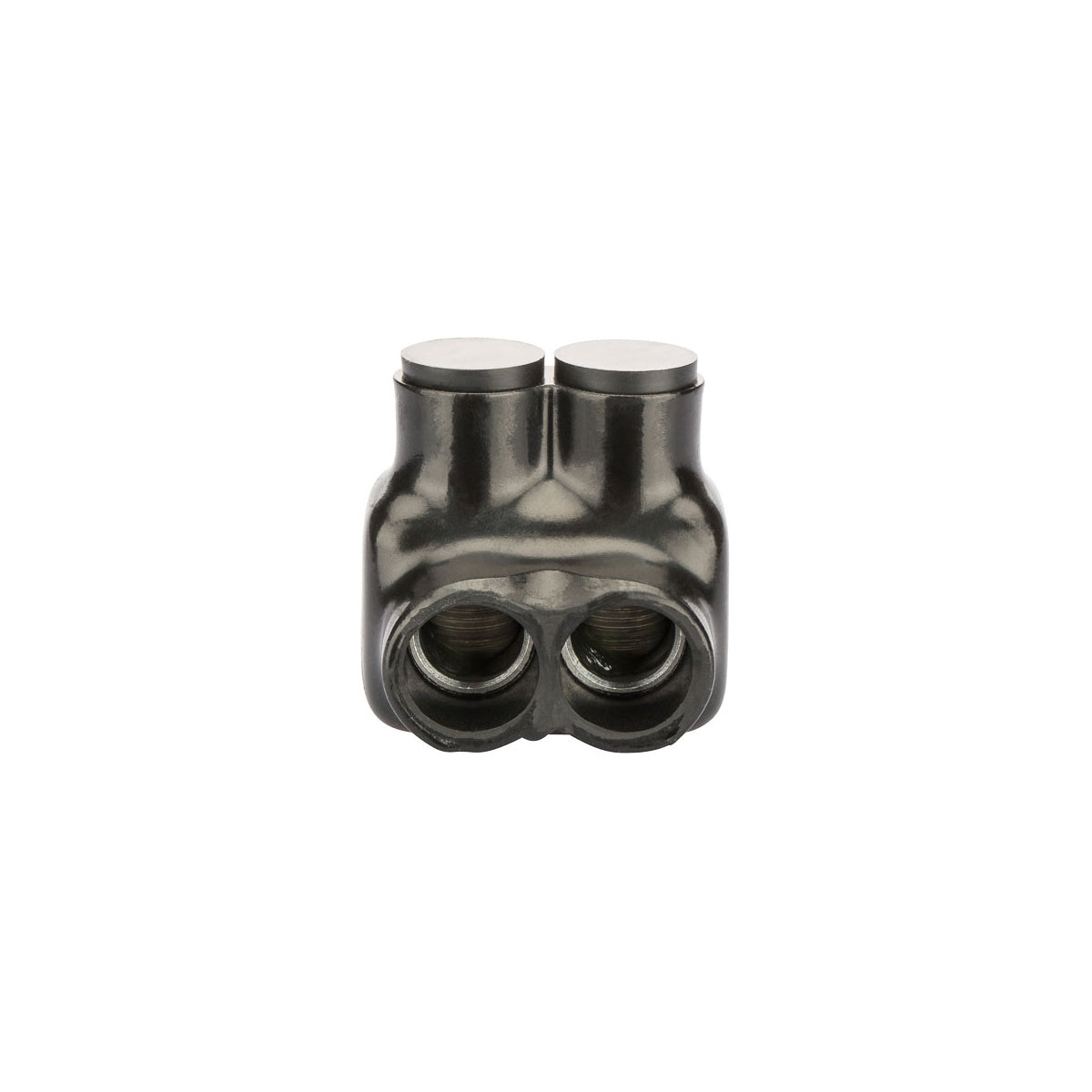

Polaris™ Ins 2 Port 250 Pre-Insulated Tap Connector
The Polaris™ Ins 2 Port 250 is a dual-sided entry pre-insulated tap connector designed for wire termination applications. It is suitable for connecting two wires, specifically supporting wire sizes from 250 MCM to 6 AWG. This connector is ideal for electrical distributors and switchgear suppliers requiring reliable wire and cable connection solutions. Its design allows access from both sides with removable plugs to close unused ports, enhancing versatility in lighting solutions and electrical installations.
Specifications
- Application: Wire Termination
- Material: Aluminum
- Finish: Plastisol Insulated
- Color: Black
- Number of Conductors: 2
- Number of Poles: 1
- Wire Type: Class B & C
- Environmental Conditions: 90°C
- Length: 2.12 in
- Width: 2.25 in
- Height: 2.25 in
- Product Weight: 0.2400 lb
- Manufacturer: NSI Industries
- Manufacturer Part #: IT-250
- UL Listing: UL Listed 486B Wire Connector (Dry location), rated 600V, 90°C
Features
- Dual-sided entry with removable access plugs for unused ports
- Insulated with abrasion and chemical resistant Plastisol
- UV resistant and will not support combustion
- Suitable for copper and aluminum cables (dual rated)
- Cold temperature rated to -45°C
