Polaris™ Ins 2 Port 1/0
SKU: #305184
Part: #IT-1/0
UPC: 662381950031
Polaris™ Ins 2 Port 1/0
SKU: #305184
Part: #IT-1/0
UPC: 662381950031
Total Price: $20.69 per each Sold in increments of 1 each
Description

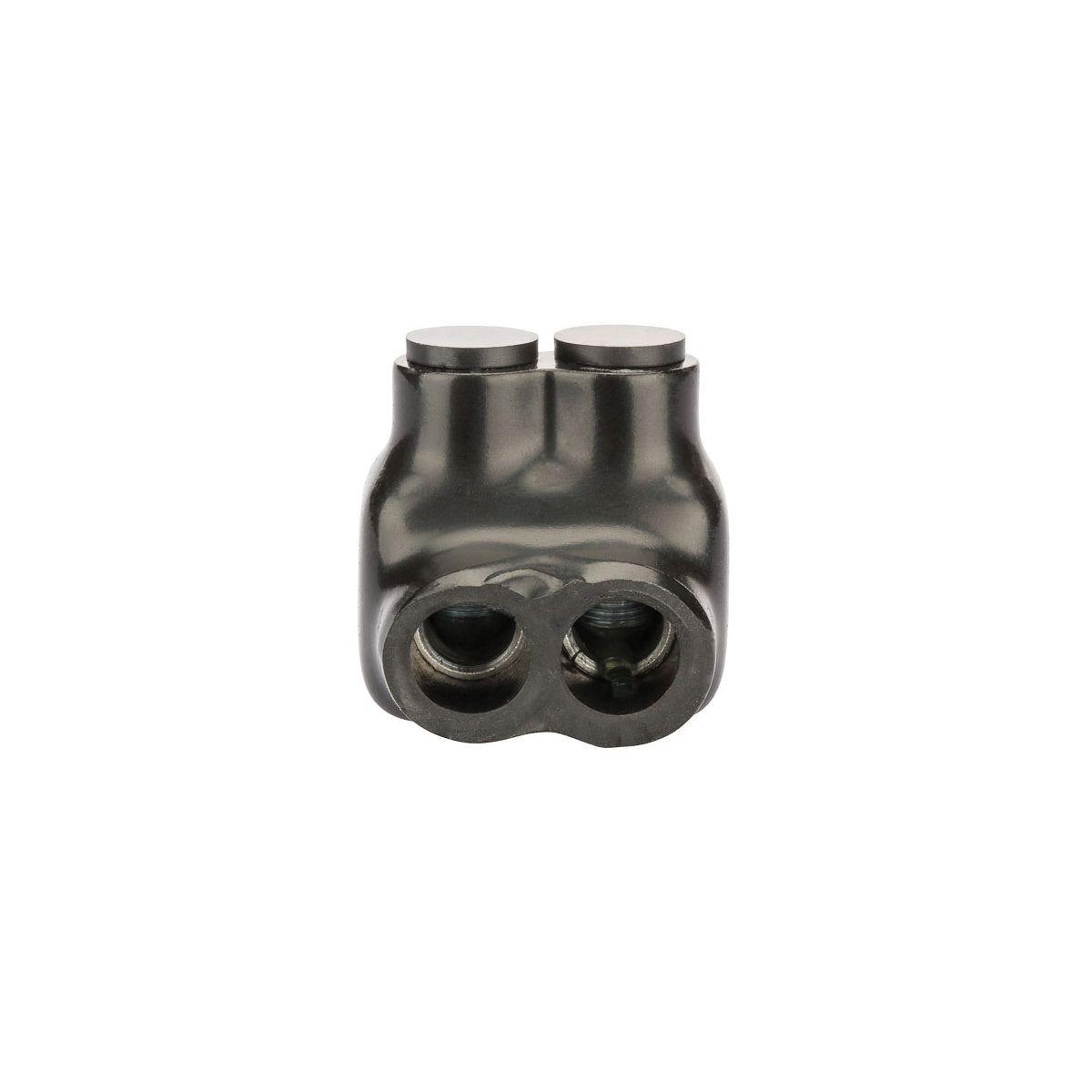

Polaris™ Ins 2 Port 1/0 Pre-Insulated Connector
The Polaris™ Ins 2 Port 1/0 is a pre-insulated wire termination connector designed for securely connecting two wires in electrical distribution and lighting solutions. Manufactured by NSi Industries, this connector is suitable for use with Class B & C wire types, accommodating wire sizes from 1/0 to 14 AWG. It is ideal for electrical distributors and switchgear suppliers requiring reliable, abrasion-resistant connectors for wire and cable applications.
Specifications
- Application: Wire Termination
- Material: Aluminum
- Finish: Plastisol Insulated
- Color: Black
- Number of Conductors: 2
- Number of Poles: 1
- Wire Type: Class B & C
- Environmental Conditions: 90 °C
- Dimensions (L x W x H): 1.62 in x 1.62 in x 1.75 in
- Product Weight: 0.1300 lbs
- Manufacturer Part #: IT-1/0
Features
- UL Listed 486B wire connector for dry locations
- Cold temperature rated to -45 °C, rated for 600V and 90 °C operation
- Dual rated for use with copper and aluminum cables
- Abrasion and chemical resistant
- UV resistant and will not support combustion
- Suitable for connecting two wires from the same side of the connector
- Pre-insulated with plastisol for enhanced safety and durability
