Polaris™ HD Ins Multi-Tap 750 8 Port DSE
SKU: #304886
Part: #IPLDH750-8
UPC: 662381926555
Polaris™ HD Ins Multi-Tap 750 8 Port DSE
SKU: #304886
Part: #IPLDH750-8
UPC: 662381926555
Description

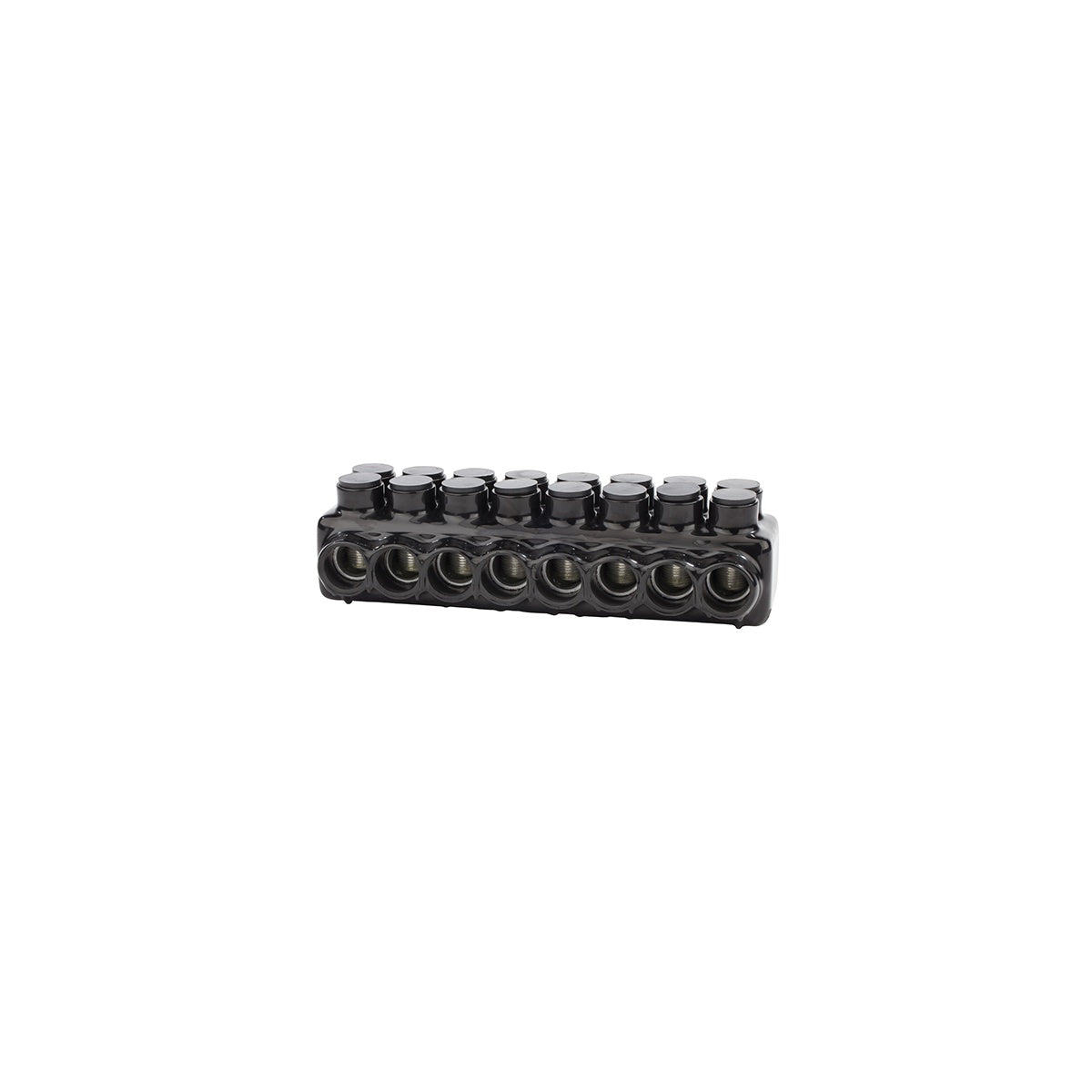

Polaris™ HD Ins Multi-Tap 750 8 Port DSE – Insulated Multi-Cable Connector
The Polaris™ HD Insulated Multi-Tap 750 8 Port Dual Side Entry connector by NSI Industries is designed for wire termination applications in electrical distribution and lighting solutions. This insulated multi-cable connector block supports dual-sided wire entry, accommodating Class B and C wire types up to 750 MCM, making it suitable for use by electrical distributors and switchgear suppliers requiring reliable, UL-listed wire and cable connectors.
Specifications
- Application: Wire Termination
- Material: Aluminum
- Finish: Plastisol Insulated
- Color: Black
- Number of Conductors: 8
- Number of Poles: 1
- Wire Type: Class B & C
- Environmental Conditions: Rated to 90°C
- Dimensions (L x W x H): 12.08 in x 4.46 in x 3.3 in
- Product Weight: 6.6 lbs
- Manufacturer Part #: IPLDH750-8
Features
- UL 486B Listed for Copper or Aluminum Class B, C conductors
- Pre-insulated with high dielectric strength plastisol for electrical insulation
- Dual side wire entry ports with removable plugs for unused ports
- Abrasion and chemical resistant, UV resistant plastisol coating
- Cold temperature rated to -45°C, suitable for harsh environments
- Eliminates the need for additional taping or covers
- Versatile configurations including mountable and stacked options
- Designed to save installation time and cost by simplifying wire termination
