Polaris™ HD Ins Multi-Tap 750 4 Port DSE
SKU: #304864
Part: #IPLDH750-4
UPC: 662381926517
Polaris™ HD Ins Multi-Tap 750 4 Port DSE
SKU: #304864
Part: #IPLDH750-4
UPC: 662381926517
Description

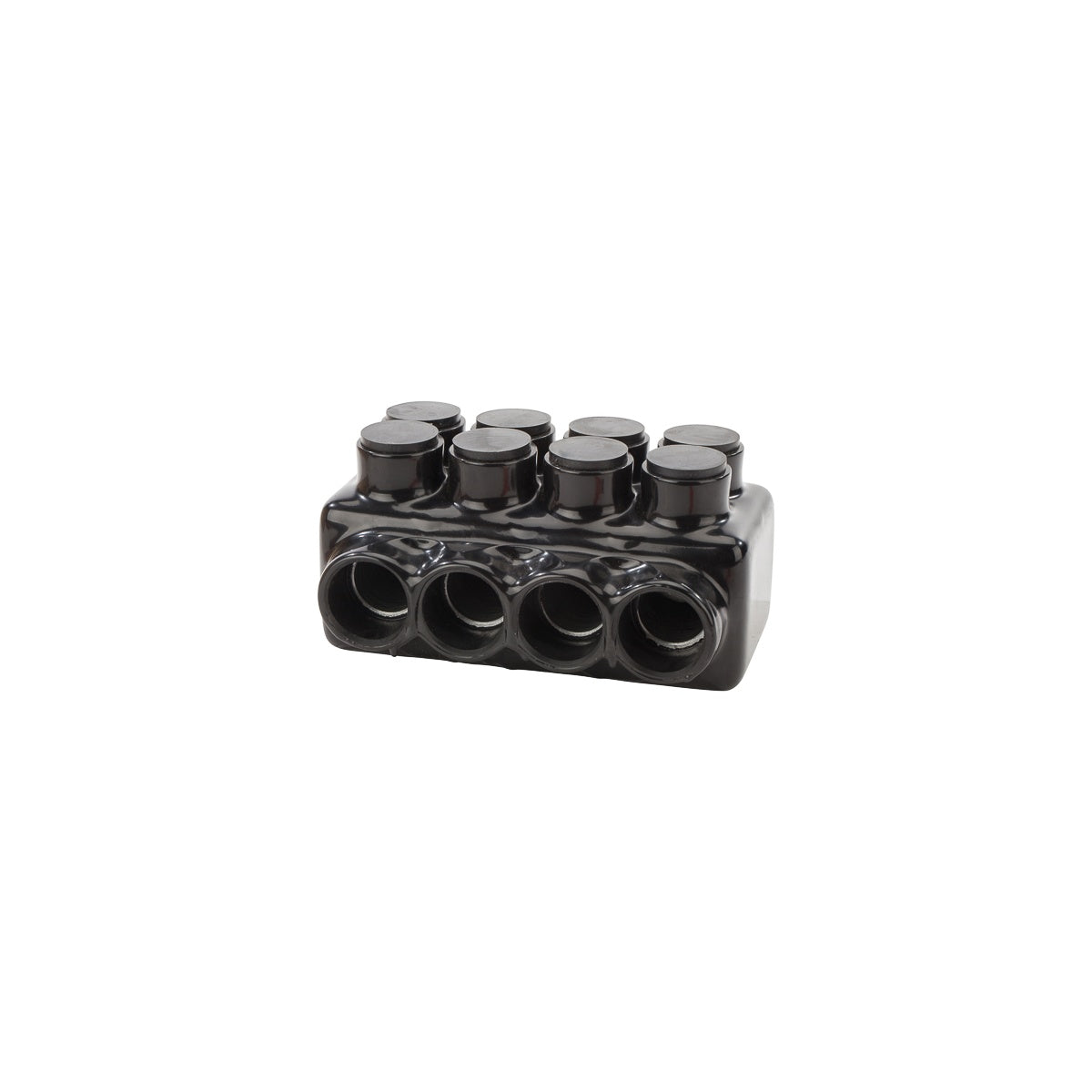

Polaris™ HD Ins Multi-Tap 750 4 Port DSE – Insulated Multi-Cable Connector
The Polaris™ HD Insulated Multi-Tap 750 4 Port Dual Side Entry connector is designed for wire termination applications, providing a reliable solution for electrical distributors and switchgear suppliers. It supports Class B & C wire types and is suitable for use with copper and aluminum conductors. This connector is ideal for lighting solutions and wire and cable installations requiring multi-port connections with high dielectric strength insulation.
Specifications
- Application: Wire Termination
- Material: Aluminum
- Finish: Plastisol Insulated
- Color: Black
- Number of Conductors: 4
- Number of Poles: 1
- Wire Type: Class B & C
- Environmental Conditions: 90 °C
- Voltage Rating: 600V
- Dimensions: 6.389 in (Length) x 4.46 in (Width) x 3.3 in (Height)
- Product Weight: 3.37 lbs
- Manufacturer: NSI Industries
- Manufacturer Part #: IPLDH750-4
Features
- UL 486B Listed for Copper or Aluminum Class B, C conductor
- Pre-insulated with high dielectric strength plastisol for electrical insulation
- Dual side entry wire ports allow access from either side
- Supplied with removable plugs to close unused entry ports
- Abrasion and chemical resistant plastisol coating
- UV resistant black plastisol that will not support combustion
- Cold temperature rated to -45°C for harsh environments
- Dual rated for use with copper and aluminum cables providing cost flexibility
- Eliminates the need for taping or additional insulation materials
- Suitable for harsh vibration-prone conditions due to tough impervious plastisol
- Customizable UL listed direct burial and submersible connector options available
