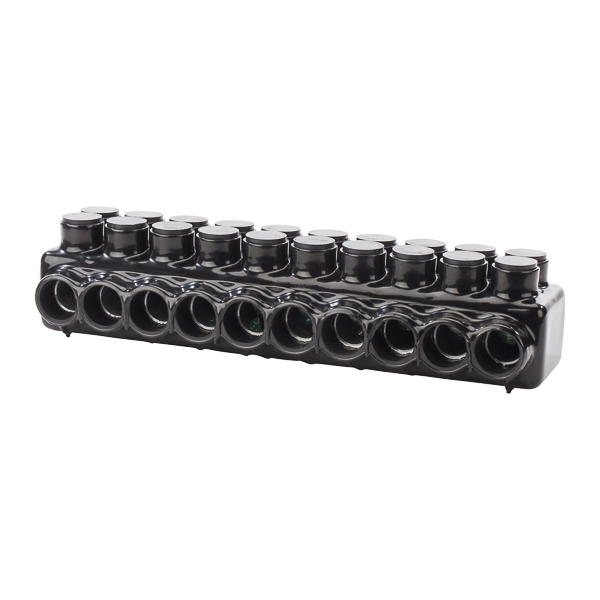

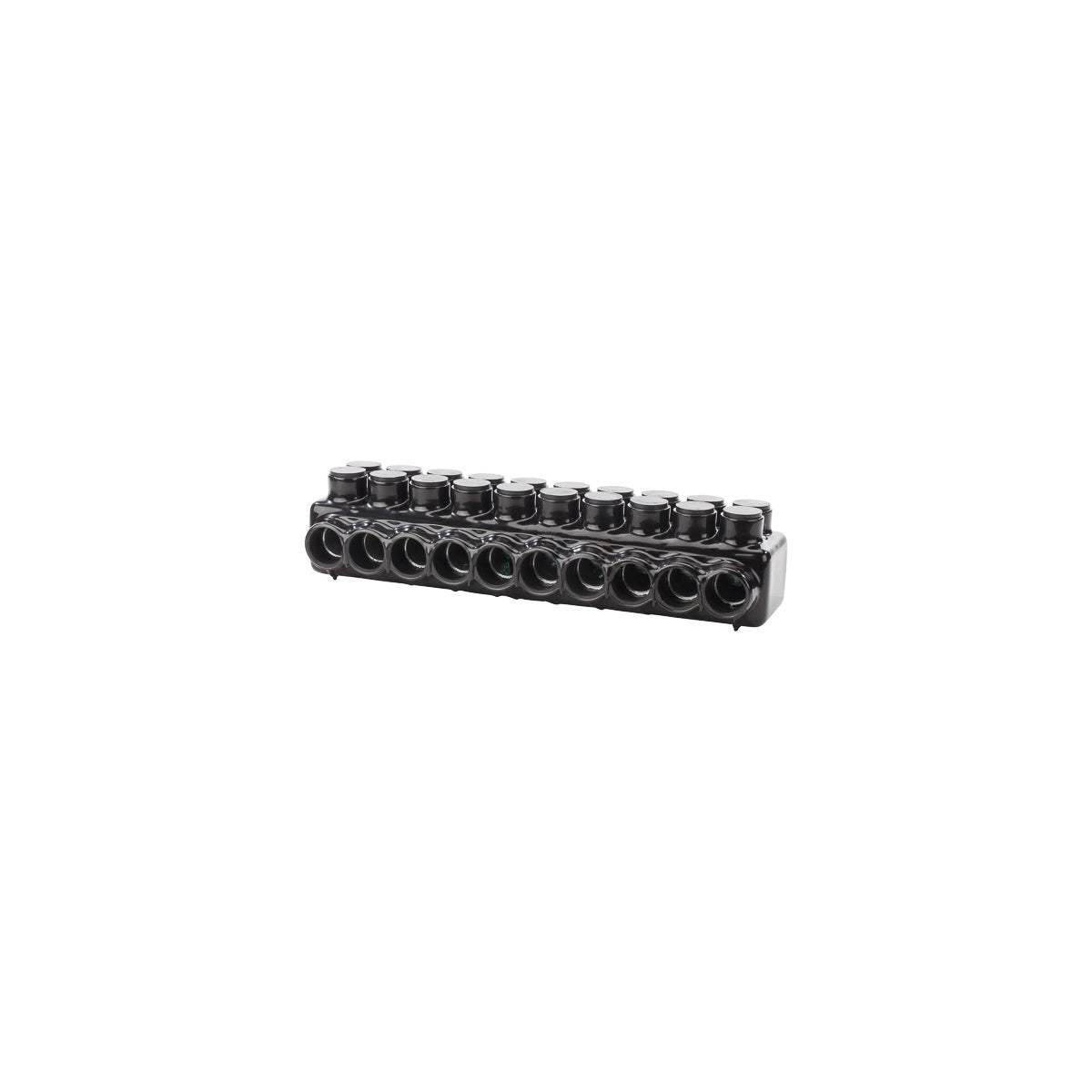

Polaris™ HD Ins Multi-Tap 750 10 Port DSE Wire Termination Connector

The Polaris™ HD Insulated Multi-Tap 750 10 Port Dual Side Entry connector by NSI Industries is designed for wire termination applications in electrical distribution and lighting solutions. This insulated multi-cable connector block accommodates Class B & C wire types, providing a reliable and durable connection for copper and aluminum conductors. It is suitable for use by electrical distributors and switchgear suppliers seeking efficient, pre-insulated wire and cable connectors that reduce installation time and cost.

Specifications

• Manufacturer: NSI Industries
• Manufacturer Part #: IPLDH750-10
• Application: Wire Termination
• Number of Conductors: 10
• Number of Poles: 1
• Wire Type: Class B & C
• Material: Aluminum
• Finish: Plastisol Insulated
• Color: Black
• Dimensions (L x W x H): 14.6 in x 4.46 in x 3.3 in
• Product Weight: 8.2 lbs
• Environmental Conditions: Rated for 90°C
• UPC: 662381926579

Features

• UL 486B Listed for copper or aluminum Class B, C conductors
• Pre-insulated with high dielectric strength black plastisol for abrasion and chemical resistance
• Dual side entry wire ports with removable plugs for flexible wiring configurations
• Cold temperature rated to -45°C and UV resistant
• Eliminates the need for taping or additional insulation
• Tough plastisol insulation suitable for harsh vibration-prone environments
• Rated 600V, 90°C for reliable electrical performance
• Customizable UL listed direct burial and submersible connectors available
