Polaris™ Grey Multi-Tap 1 2 Port
SKU: #305229
Part: #ITG-1
UPC: 662381951465
Polaris™ Grey Multi-Tap 1 2 Port
SKU: #305229
Part: #ITG-1
UPC: 662381951465
Total Price: $31.89 per each Sold in increments of 1 each
Description

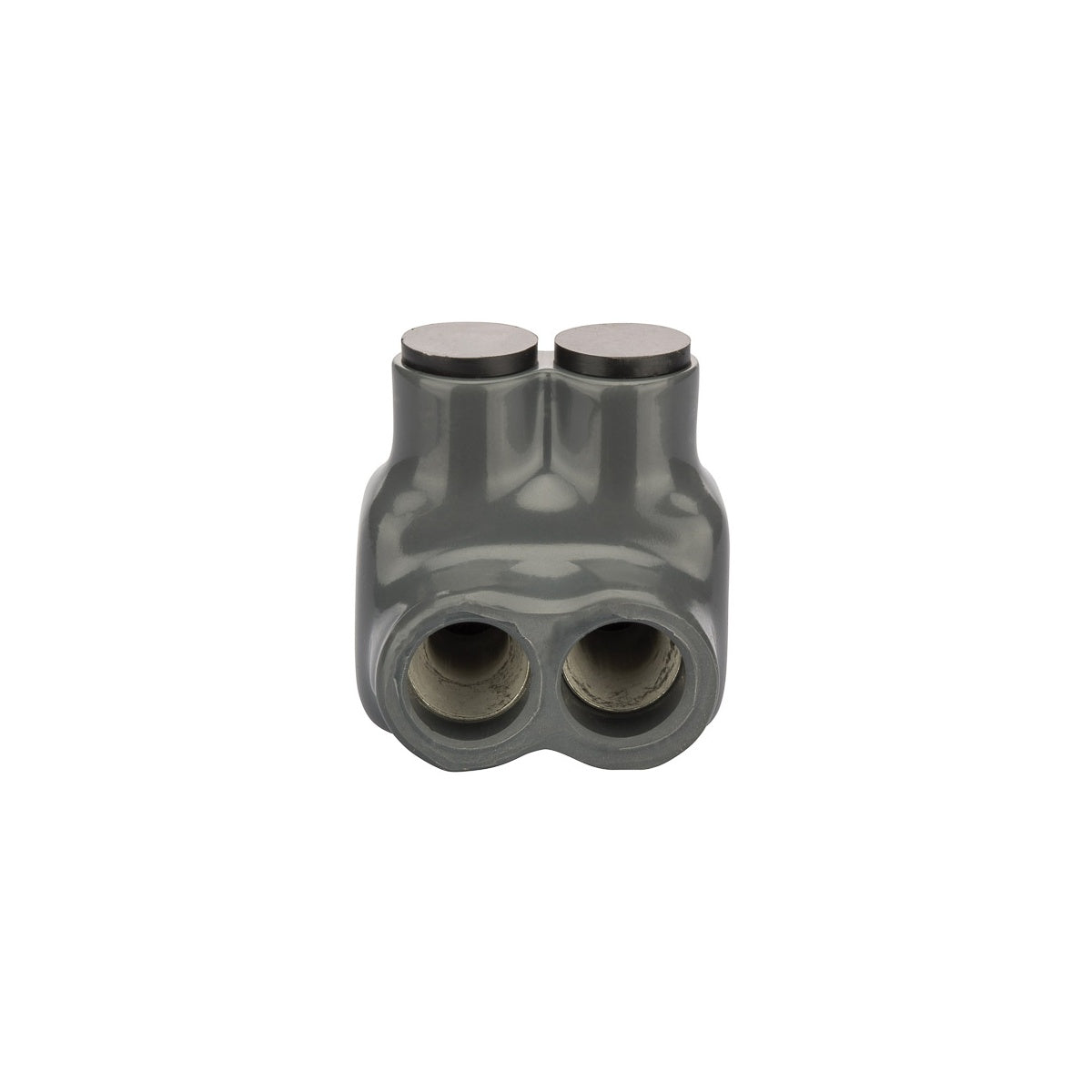

Polaris™ Grey Multi-Tap 1 2 Port Wire Connector
The Polaris™ Grey Multi-Tap 1 2 Port connector by NSI Industries is designed for wire termination applications, specifically engineered for fine-stranded copper conductors. This pre-insulated, multi-port connector provides a reliable and easy solution for electrical distributors and lighting solutions suppliers handling flexible and extra-flexible copper wire types such as B, C, D, K, M, and I classifications. It is suitable for use in cable trays, troughs, wireways, raceways, ducts, and motor junction boxes, offering a safe and efficient connection that protects conductor strands during tightening.
Specifications
- Application: Wire Termination
- Material: Aluminum
- Finish: Plastisol Insulated
- Color: Grey
- Number of Poles: 1
- Number of Conductors: 2
- Wire Type: B, C, D, K, M, I
- Environmental Conditions: 90 °C
- Dimensions (L x W x H): 1.6 in x 1.55 in x 1.75 in
- Product Weight: 0.1300 lbs
- Manufacturer: NSI Industries
- Manufacturer Part #: ITG-1
Features
- Designed for fine-stranded copper cables only
- Protects fine strands and maintains conductor shape during tightening
- Enables safe and easy connection and termination of fine-stranded cables
- Insulated with high dielectric strength plastisol for mechanical protection
- Abrasion and chemical resistant, cold temperature rated to -45 °C
- UL Listed for use with fine-stranded, flexible, and extra-flexible copper conductors
- Reusable and ideal for motor replacement, cable trays, troughs, wireways, raceways, and ducts
- Unique sleeve design reduces stress on conductor and prevents strand breakage
