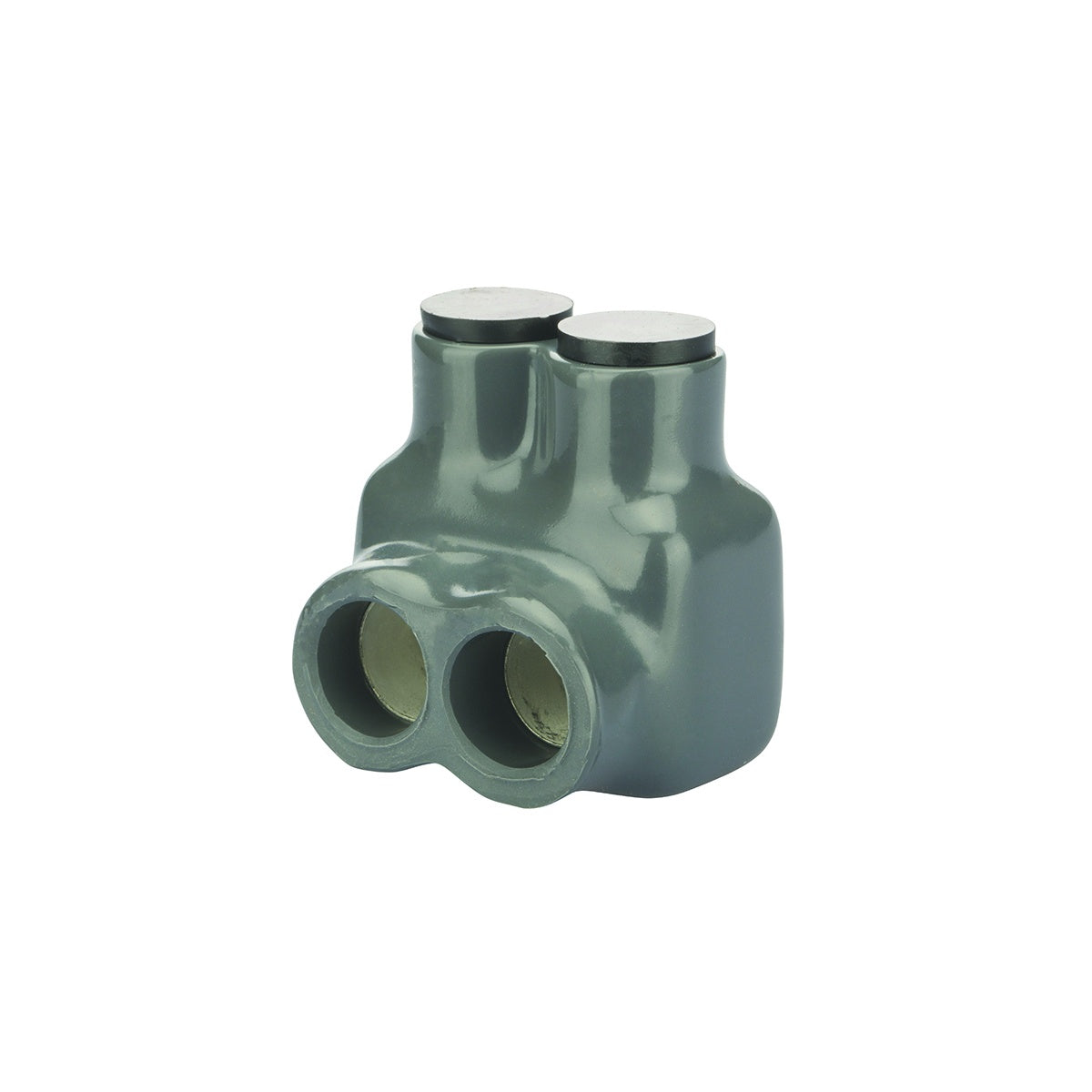

Polaris™ Grey Multi-Tap 1/0 2 Port Wire Connector

The Polaris™ Grey Multi-Tap 1/0 2 Port connector by NSI Industries is designed for wire termination applications involving fine-stranded copper conductors. It is suitable for use by electrical distributors and switchgear suppliers requiring reliable connections in lighting solutions, wire and cable assemblies, and motor replacement setups. This connector supports wire types B, C, D, K, M, and I and is optimized for fine-stranded cables to maintain conductor integrity and ease of maintenance.

Specifications

• Application: Wire Termination
• Material: Aluminum
• Finish: Plastisol Insulated
• Color: Grey
• Number of Conductors: 2
• Number of Poles: 1
• Wire Type Compatibility: B, C, D, K, M, I
• Environmental Conditions: Rated for 90°C
• Dimensions (L x W x H): 1.85 in x 1.6 in x 1.81 in
• Product Weight: 0.1900 lb
• Manufacturer: NSI Industries
• Manufacturer Part #: ITG-3/0

Features

• Protects fine strands and maintains conductor shape during tightening
• Enables easy and safe connection and termination of fine-stranded cables
• Sleeve design eliminates strand breakage and reduces conductor stress
• Unique sleeves provide reliability comparable to compression connections with easier installation
• Abrasion and chemical resistant with cold temperature rating to 45°C
• UL Listed for fine-stranded, flexible, and extra flexible copper cables
• Customizable to handle any combination and number of fine-stranded wires between 14 AWG and 3/0 AWG
• Ideal for repetitive motor replacement, cable trays, throughs, wireways, raceways, and ducts
