Poke-Through Cover, (2) Door-In-Door Flip Lids, Brass
SKU: #35588
Part: #PT526-B
UPC: 078477381007
Poke-Through Cover, (2) Door-In-Door Flip Lids, Brass
SKU: #35588
Part: #PT526-B
UPC: 078477381007
Description
Poke-Through Cover, (2) Door-In-Door Flip Lids, Brass - Floor Box Cover

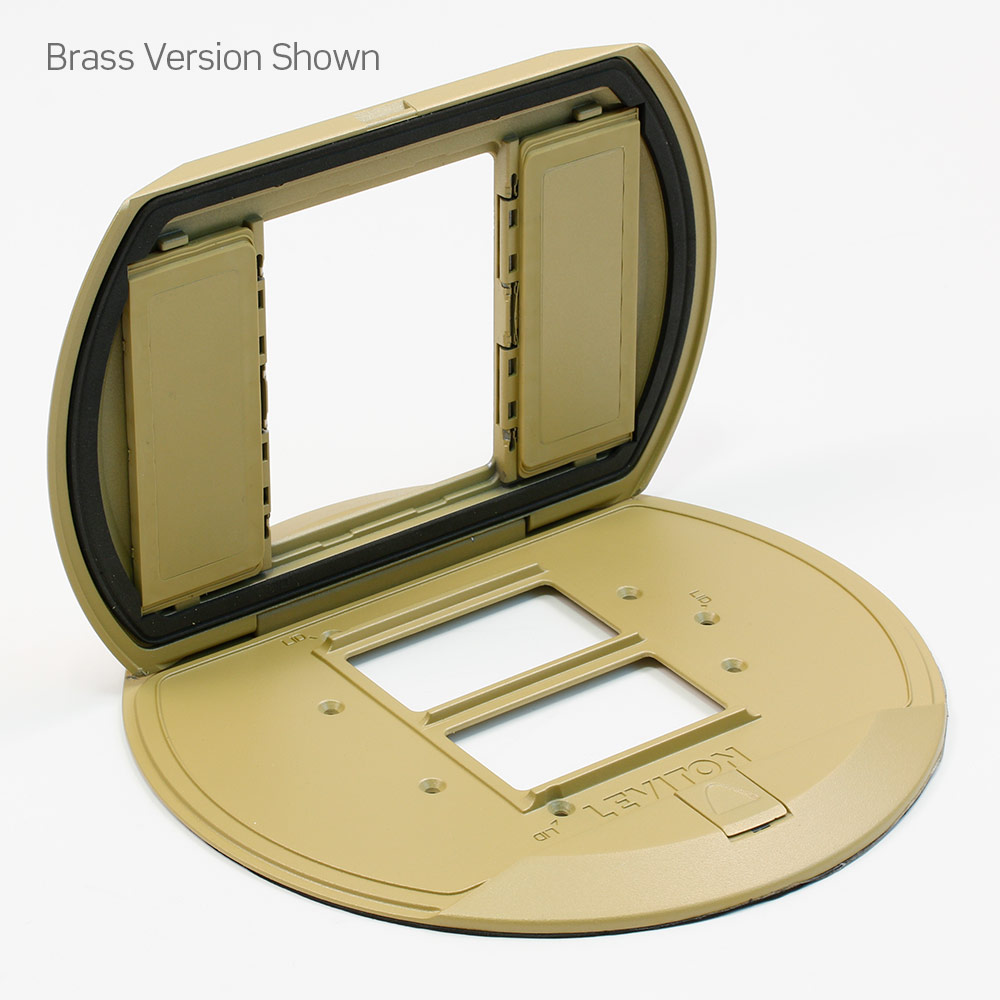

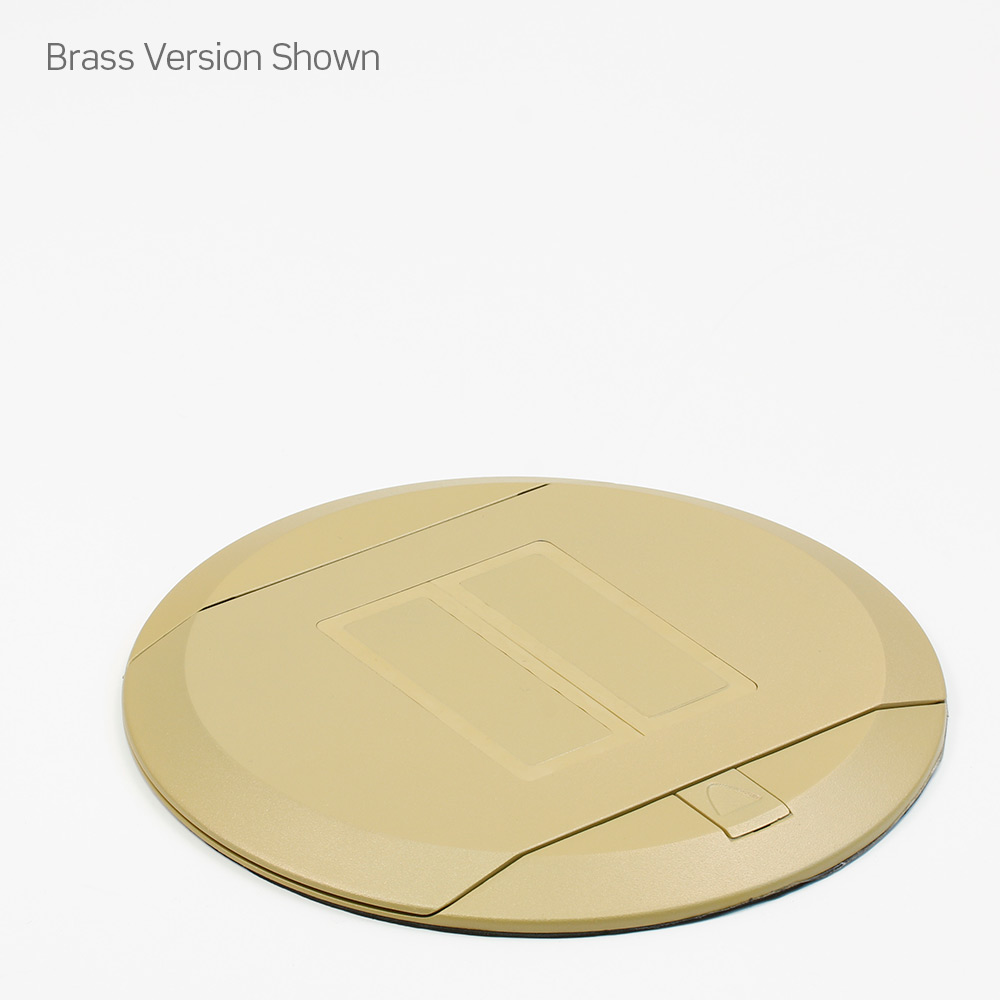

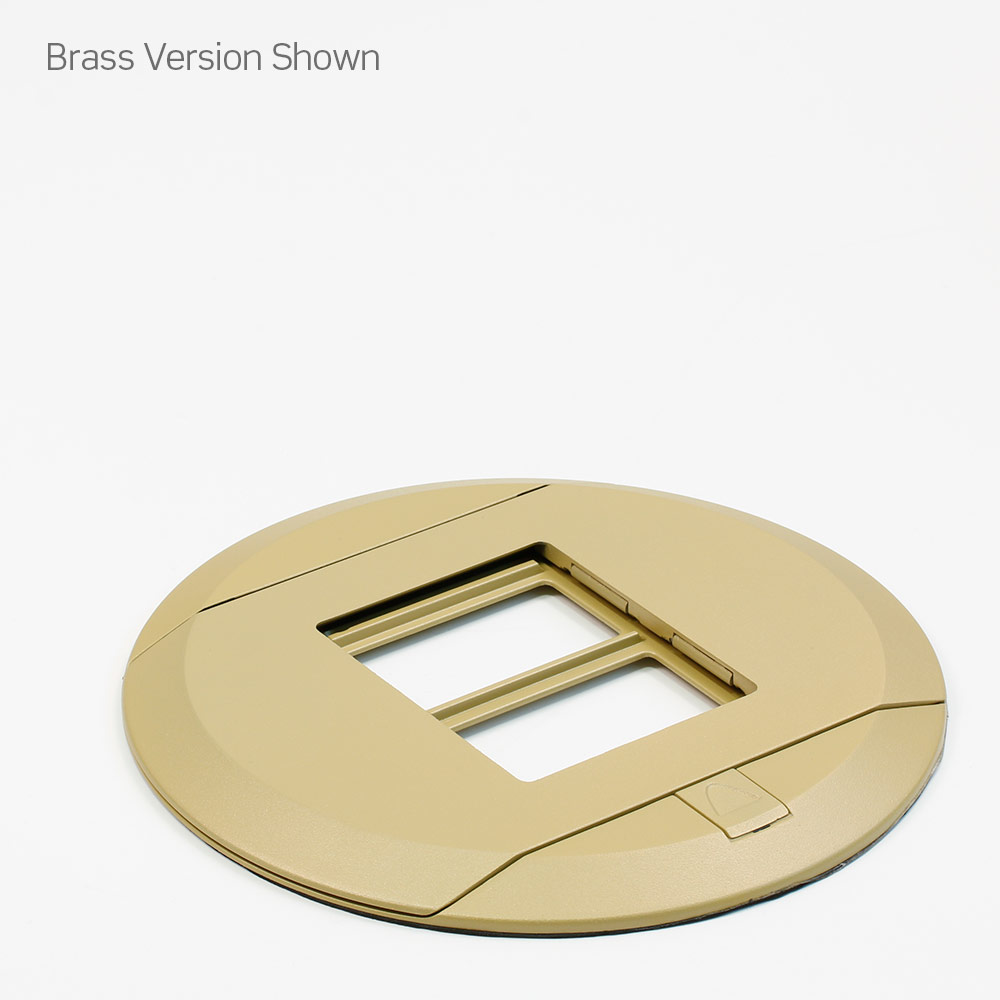

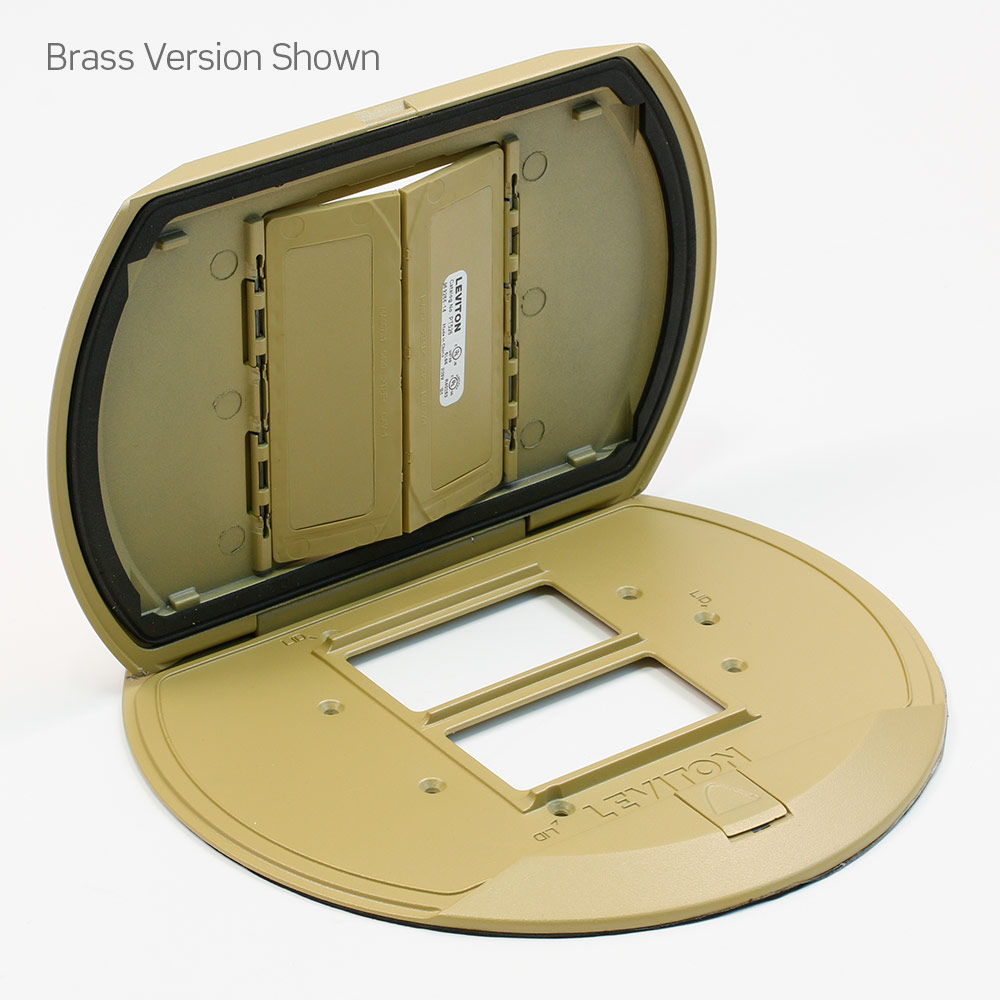

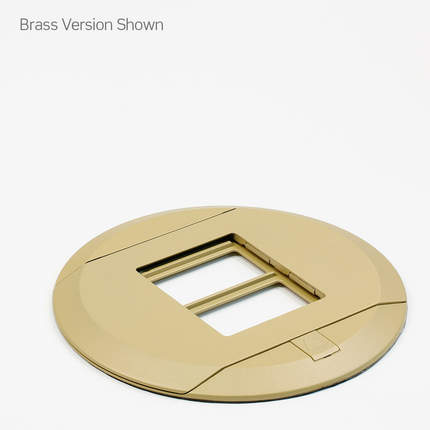

This Leviton Poke-Through Cover, model PT526-B, is designed exclusively for use with the Leviton 5" Poke Through Floor Box (PT500). It serves as a durable cover solution for electrical distributors and lighting solutions providers requiring reliable floor box covers that accommodate wiring and cable access. The cover features a "Door-In-Door" design with two flip lids that fold into the main lid, concealing hinges and doors during use. It supports Decora-style receptacles and QuickPort inserts, making it suitable for various low-voltage and power applications in commercial and institutional environments.
Specifications
- Manufacturer: Leviton
- Manufacturer Part Number: PT526-B
- Device Type: Cover
- Color: Brass
- Country of Origin: China
- Operating Temperature: -40 degrees Celsius
- Product Weight: 1.84 lbs
- Compatible Floor Box: Leviton 5" Poke Through Floor Box (PT500)
- Dimensions (Diameter): Approximately 8.38 in (212.85 mm)
- Plate Height After Installation: Approximately 0.48 in (12.2 mm)
Features
- “Door-In-Door” cover design with two flip lids folding into the main lid to hide hinges and doors while in use
- Accommodates Decora-style receptacles and QuickPort inserts for versatile wiring options
- Includes pre-assembled gasket and mounting screws for secure installation
- Constructed with brass finish for durability and aesthetic compatibility with architectural finishes
- Designed for use with copper or copper clad wiring in compliance with electrical codes
- Compatible with floor coverings up to 0.75 inches thick
- Installation torque for cover screws recommended between 4 to 6 in-lbs
