Poke-Through Cover, (2) Door-In-Door Flip Lids, Black
SKU: #35598
Part: #PT526-E
UPC: 078477381021
Poke-Through Cover, (2) Door-In-Door Flip Lids, Black
SKU: #35598
Part: #PT526-E
UPC: 078477381021
Description
Poke-Through Cover, (2) Door-In-Door Flip Lids, Black – Floor Box Cover for Electrical Distributors

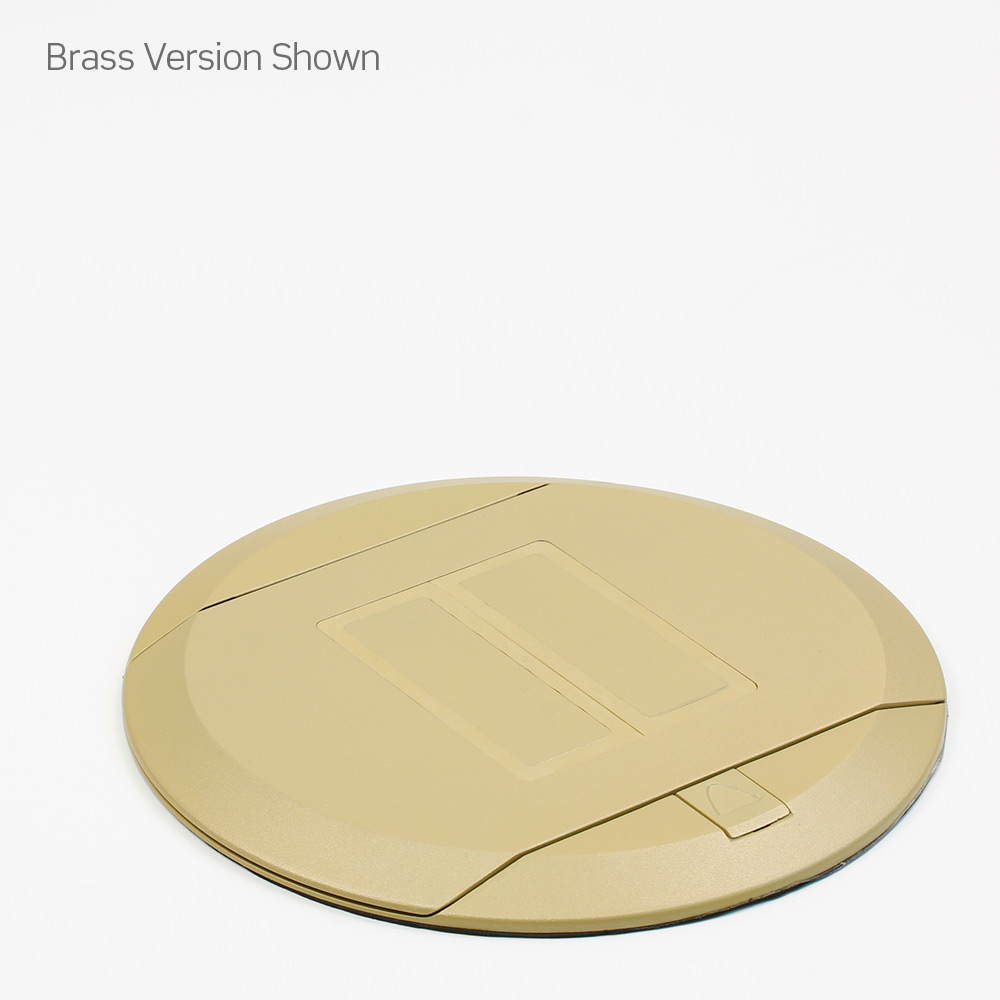

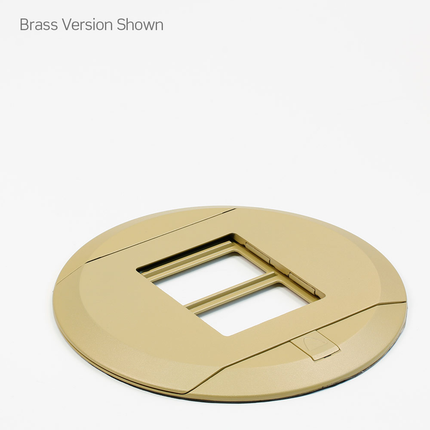

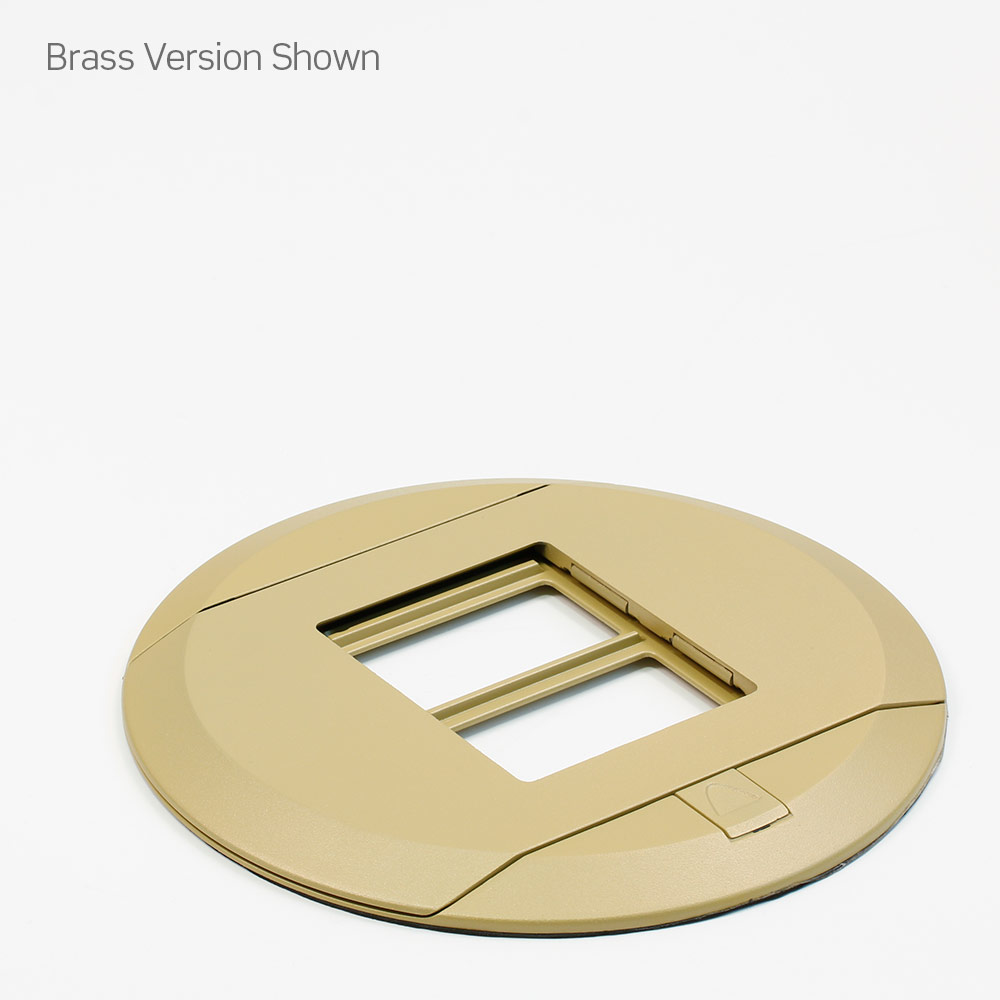

This Leviton Poke-Through Cover (Cat. No. PT526-E) is designed exclusively for use with the Leviton 5" Poke Through Floor Box (PT500). It features a "Door-In-Door" design with two flip lids that fold into the main lid, concealing all hinges and doors while in use. The cover accommodates Decora-style receptacles and QuickPort inserts, providing a versatile solution for electrical distributors and lighting solutions requiring floor box access. The product is suitable for installation in concrete floors with various finishes including carpet, polished/painted concrete, vinyl, terrazzo, tile, and wood, supporting wire and cable management in commercial and residential settings.
Specifications
- Manufacturer: Leviton
- Manufacturer Part Number: PT526-E
- Color: Black
- Device Type: Cover
- Operating Temperature: -40 degrees Celsius
- Product Weight: 1.76 lbs
- Country of Origin: China
- Compatible with: Leviton 5" Poke Through Floor Box (PT500) only
- Dimensions: Diameter approximately 8.38 inches (212.85 mm), Plate height after installation approximately 0.48 inches (12.2 mm) (from technical drawing on page 1)
Features

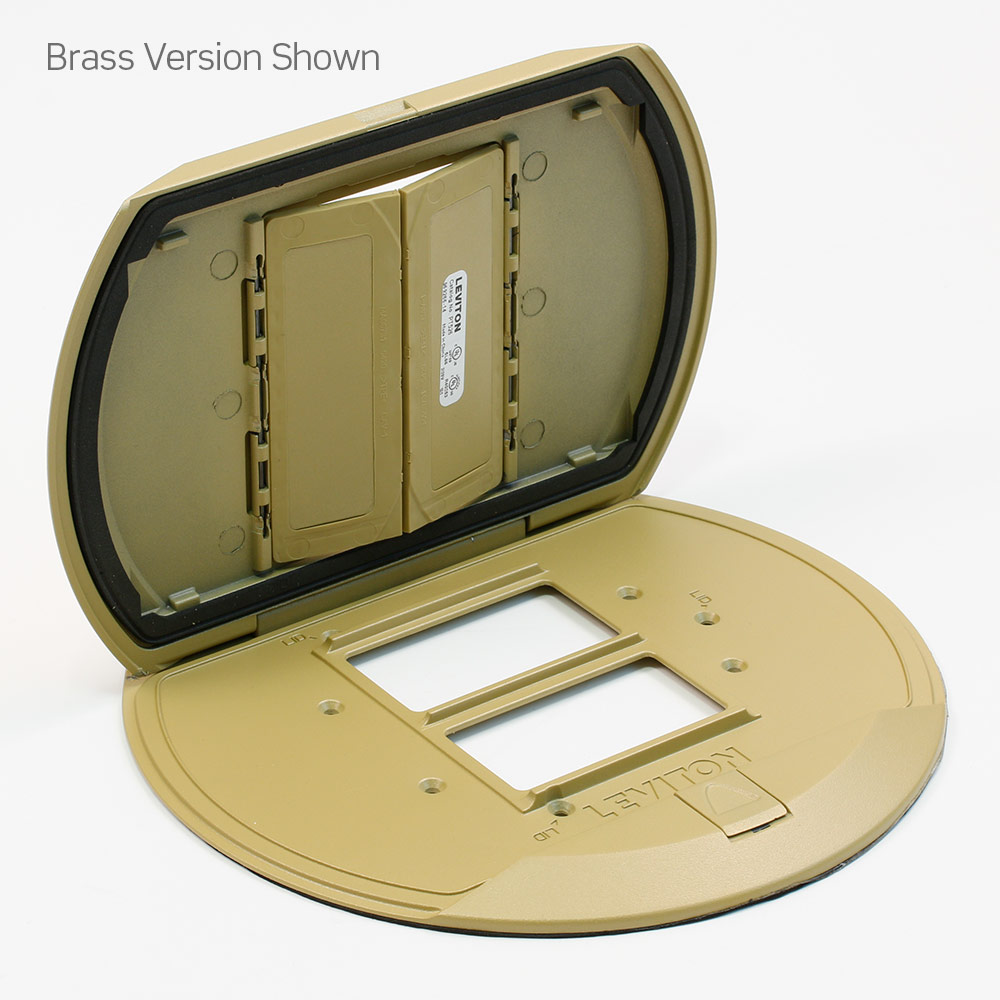

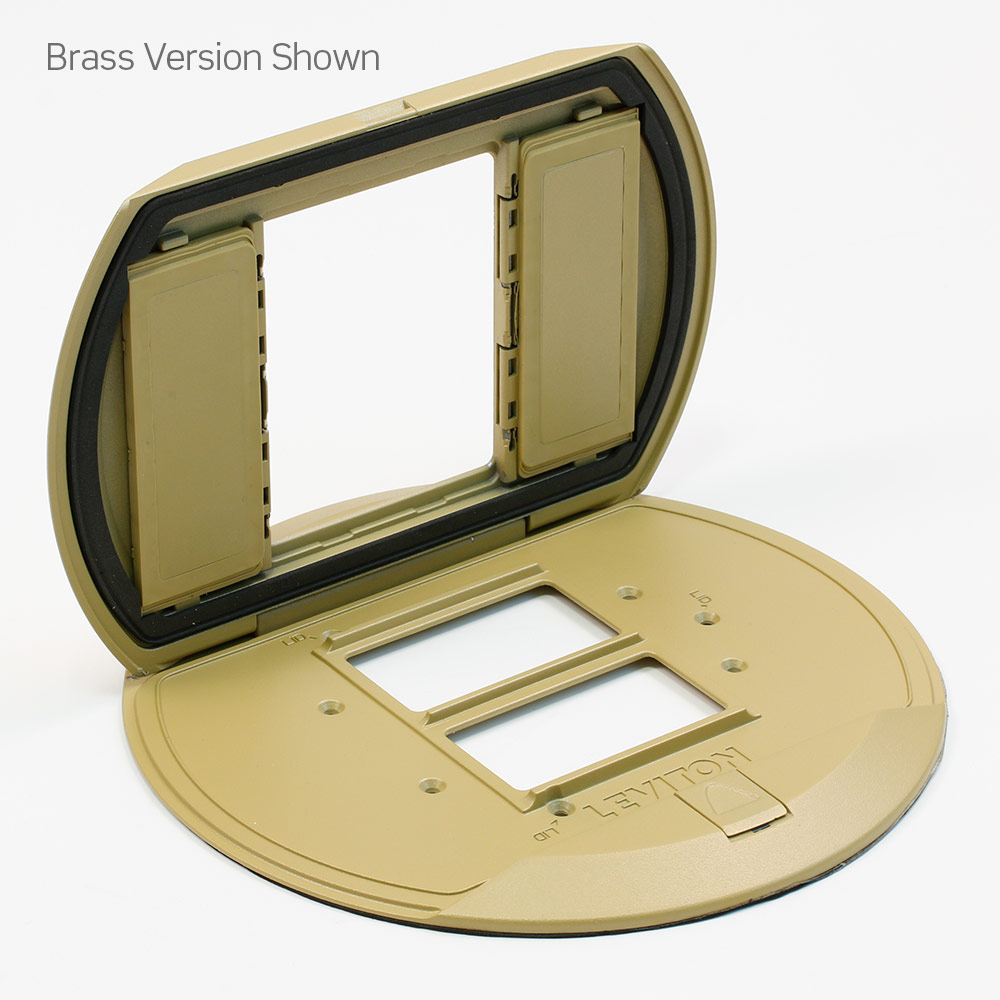

- “Door-In-Door” cover plate with two flip lids that fold into the main lid to hide hinges and doors
- Includes pre-assembled gasket and mounting screws for secure installation
- Designed to accommodate Decora-style receptacles and QuickPort inserts
- Black finish for professional aesthetic and durability
- Meets fire rating requirements when installed with appropriate Leviton poke-through components in concrete floors
- Compatible with power circuits, data, and audio/visual cables in compliance with electrical codes
