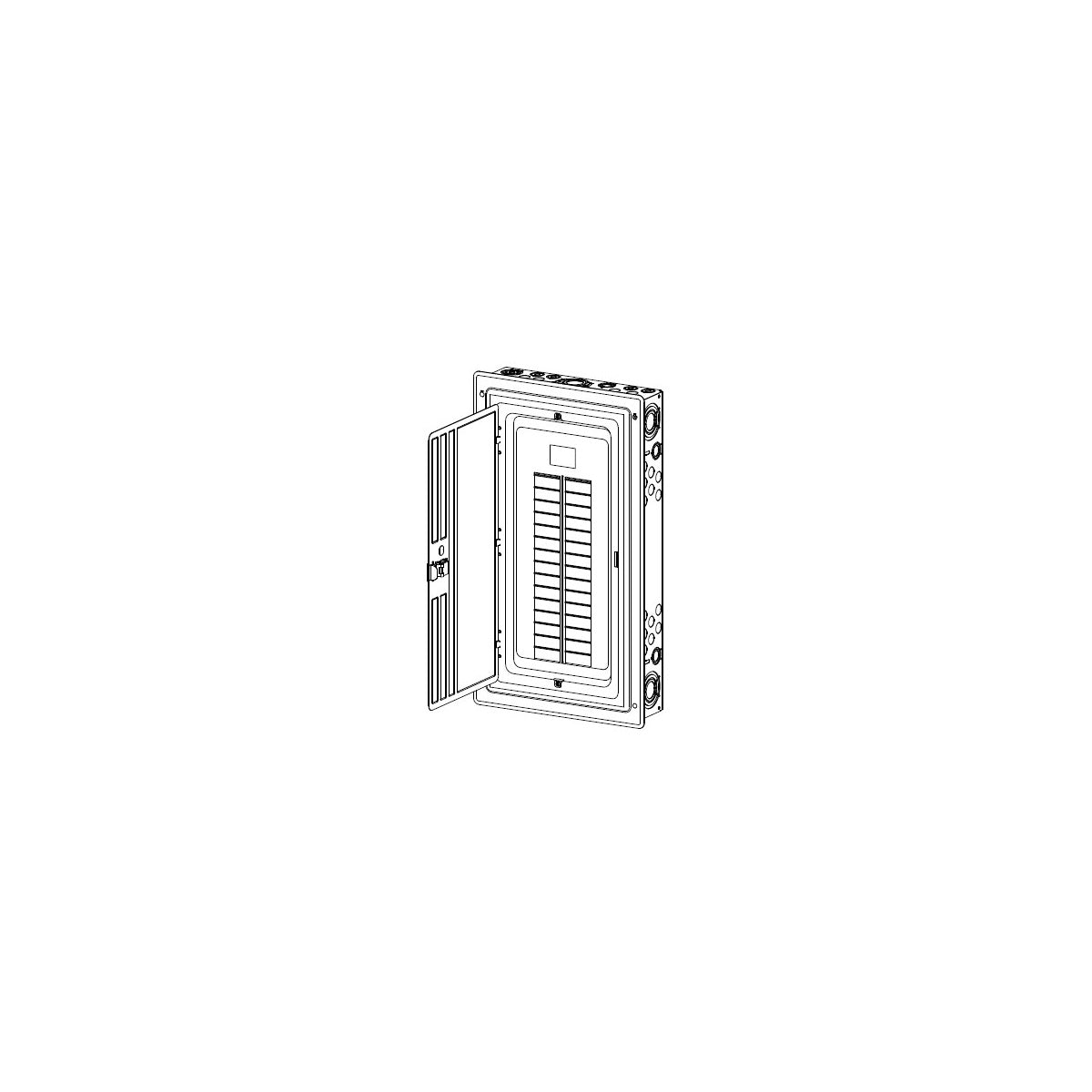

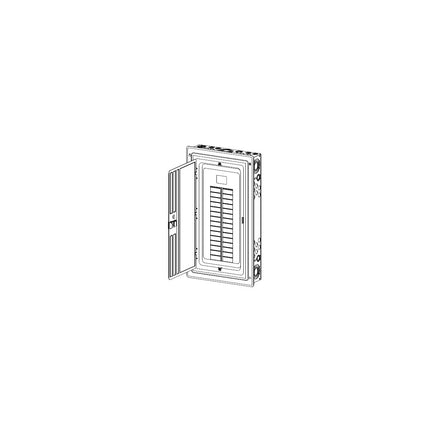

PN3048L1125C Low Voltage Load Center

The PN3048L1125C is a Siemens low voltage load center designed for residential and light commercial electric distribution. It serves as a critical component in electrical systems, providing reliable circuit protection and distribution. This load center is suitable for use by electrical distributors and switchgear suppliers looking for durable and efficient solutions in wire and cable management and lighting solutions.

Specifications

• Manufacturer: Siemens
• Product Type: Plug-On Neutral Ready Pro Series Load Center
• Application: Residential and Light Commercial Electric Distribution
• Amperage Rating: 125 A
• Current: 125 amperes
• Interrupt Rating: 100 kA
• Number of Spaces: 30
• Number of Feeders/Circuits: 48
• Bus Rating: Copper Bus
• Enclosure Type: NEMA Type 1 (Indoor use)
• Dimensions (W x H x L): 15.94 in x 5.62 in x 28.13 in
• Voltage Rating: 120/240 V (1-phase, 3-wire system)
• Certification: UL Listed
• Product Weight: 30.938 lbs
• Color/Trim: Grey Trim
• UPC: 804766702891

Features

• Plug-on neutral ready design for simplified installation
• Copper bus bars for enhanced conductivity and durability
• Grey trim NEMA Type 1 enclosure suitable for indoor environments
• Supports up to 48 circuits with 30 one-inch spaces
• Main lug configuration optimized for load distribution
• UL certified for safety and compliance
