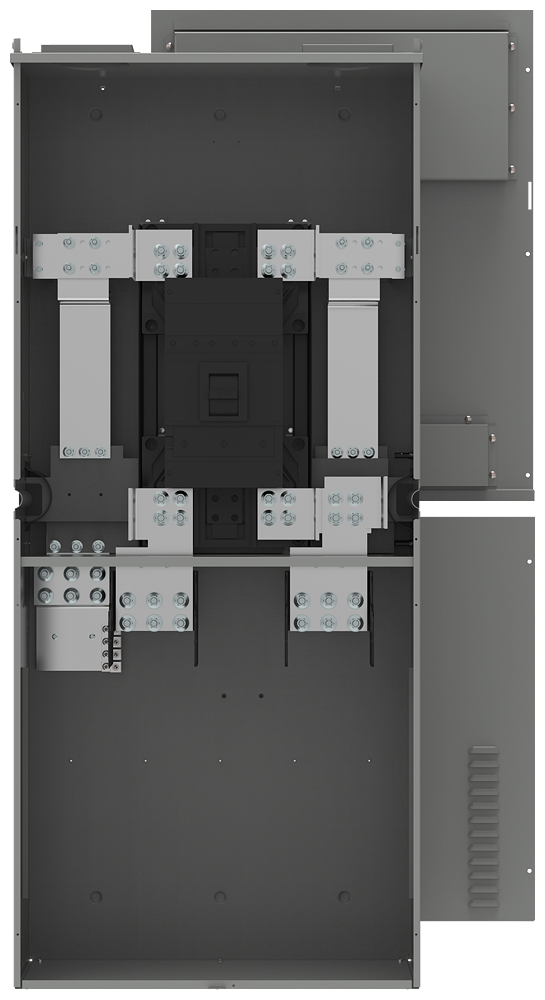

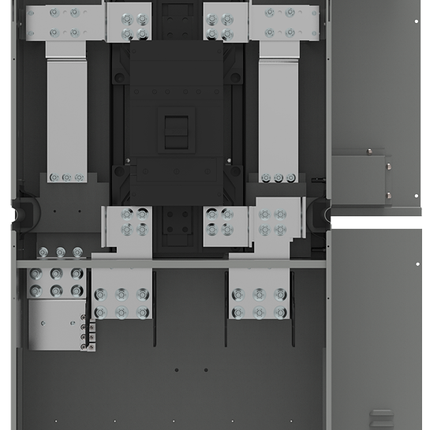

PMOD WB 1PH 2000A 65K BOT N3R Circuit Breaker Main

The Siemens PMOD WB 1-phase 2000A 65K BOT N3R is a low voltage power module designed for use as a standard circuit breaker main in electrical distribution systems. Suitable for 1-phase, 3-wire systems rated at 120/240V AC, this product provides reliable protection and service entrance capabilities for commercial and industrial applications. It is ideal for electrical distributors and switchgear suppliers seeking robust lighting solutions and wire and cable compatibility with a NEMA Type 3R enclosure for outdoor or wet locations. The unit includes a 2000A 2-pole RXD6 frame breaker with 65kA interrupting capacity.

Specifications

• Manufacturer: Siemens
• Manufacturer Part #: WB12000B
• Voltage Rating: 120/240V AC
• Phase/Wire System: 1-phase, 3-wire
• Interrupting Rating: 65kA AIC
• Breaker Frame: RXD6, 2-pole, 2000A
• Enclosure Type: NEMA Type 3R
• Dimensions (HxWxD): 71.984 in x 30.906 in x 14.266 in
• Weight: 505.48 lbs
• Country of Origin: United States
• Made in USA: Yes

Features

• Standard circuit breaker main module with balanced functionality and size constraints
• Combination overhead and underground service feed capability
• Externally accessible breaker handle with padlock capability
• Removable blank bottom endwall for flexible installation
• Broad ampacity ratings with availability of non-standard amperages
• UL Listed under UL67 standard, file number E27100
• G90 galvanized steel construction with ANSI 61 paint finish
• Suitable for use as service equipment under certain conditions
