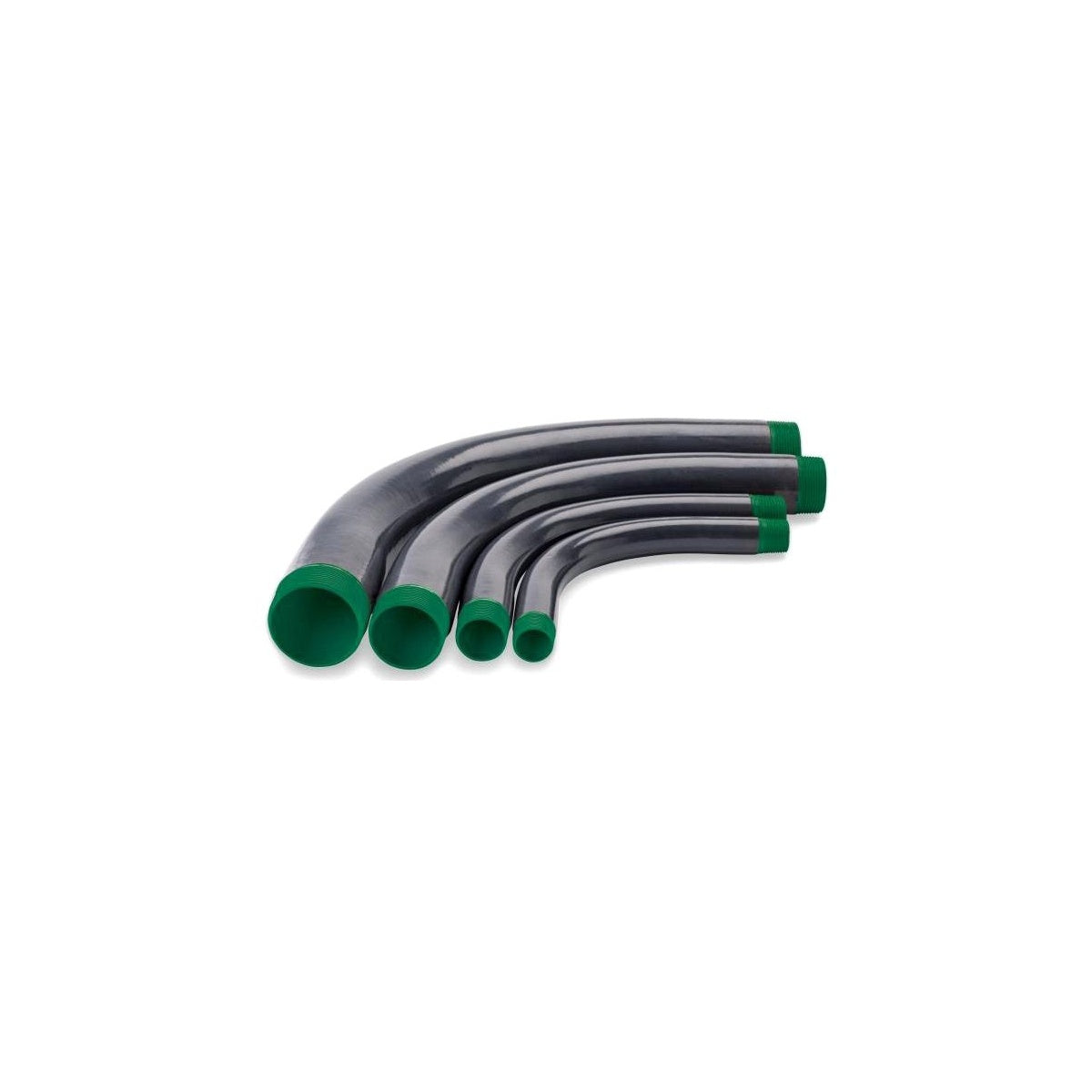

PMEL-100X90 Factory Bent Elbow – PVC-Coated Steel Elbow

The PMEL-100X90 is a factory-bent standard radius elbow designed for electrical conduit systems, providing accurate bends to reduce installation time and material waste. It is suitable for use by electrical distributors and switchgear suppliers requiring reliable conduit fittings with maintained electrical continuity across joints. This product is commonly applied in lighting solutions and wire and cable installations where durable, corrosion-resistant conduit elbows are needed.

Specifications

• Material: Steel
• Finish: 2 Mil Green Urethane Interior / 40 Mil Gray PVC Exterior Coating
• Trade Size: 1 Inch
• Bend Angle: 90 Degree
• Bend Radius: 5.75 Inch
• End Type: External Threaded
• Nipple Length: 14-3/4 Inch
• Inside Diameter: 1.063 Inch
• Outside Diameter: 1.395 Inch
• Dimensions (L x W x H): 13.3125 in x 5.75 in x 13.4375 in
• Color: Green (Interior), Gray (Exterior)
• Product Weight: 2.08 lbs
• Certifications: UL (Canada and US), UL 6, CSA C22.2, ISO 9001

Features

• Factory bent for precise, consistent bends that speed installation and reduce field labor
• Durable PVC-coated steel construction for corrosion resistance in electrical conduit applications
• Plastic thread protector caps color-coded for quick identification of conduit size
• Maintains electrical continuity across assembled joints
• Complies with UL and CSA standards for safety and performance
• Eliminates costly field bending and material waste
