PMCPL-300, Conduit Coupling – PVC-Coated Electrical Conduit Coupling

The PMCPL-300 conduit coupling is designed to connect coated conduit sections while maintaining electrical continuity across assembled joints. It is suitable for electrical distributors and lighting solutions requiring durable wire and cable protection in corrosive environments. This coupling provides a secure, threaded connection with corrosion-resistant coatings for long-lasting performance in industrial and commercial switchgear applications.

Specifications

• Trade Size: 3 Inch
• End Type: Threaded
• Material: Galvanized Steel
• Finish: 2 Mil Green Urethane (Interior/Thread), 40 Mil Gray PVC Coated (Exterior)
• Threads Per Inch: 8
• Type: Straight Tapped
• Inside Diameter: 3.000 in
• Outside Diameter: 4.250 in
• Length: 15.25 in
• Width: 10 in
• Height: 10 in
• Product Weight: 2.85 lbs
• Standard Package: 8 per Pack
• Approvals: UL (Canada and US), UL 6, CSA C22.2
• Applicable Standard: ISO 9001

Features

• 40 mil gray PVC exterior coating with molded longitudinal ribs for protection against installation damage
• 2 mil green urethane interior coating over galvanized threads to prevent corrosion and maintain electrical continuity

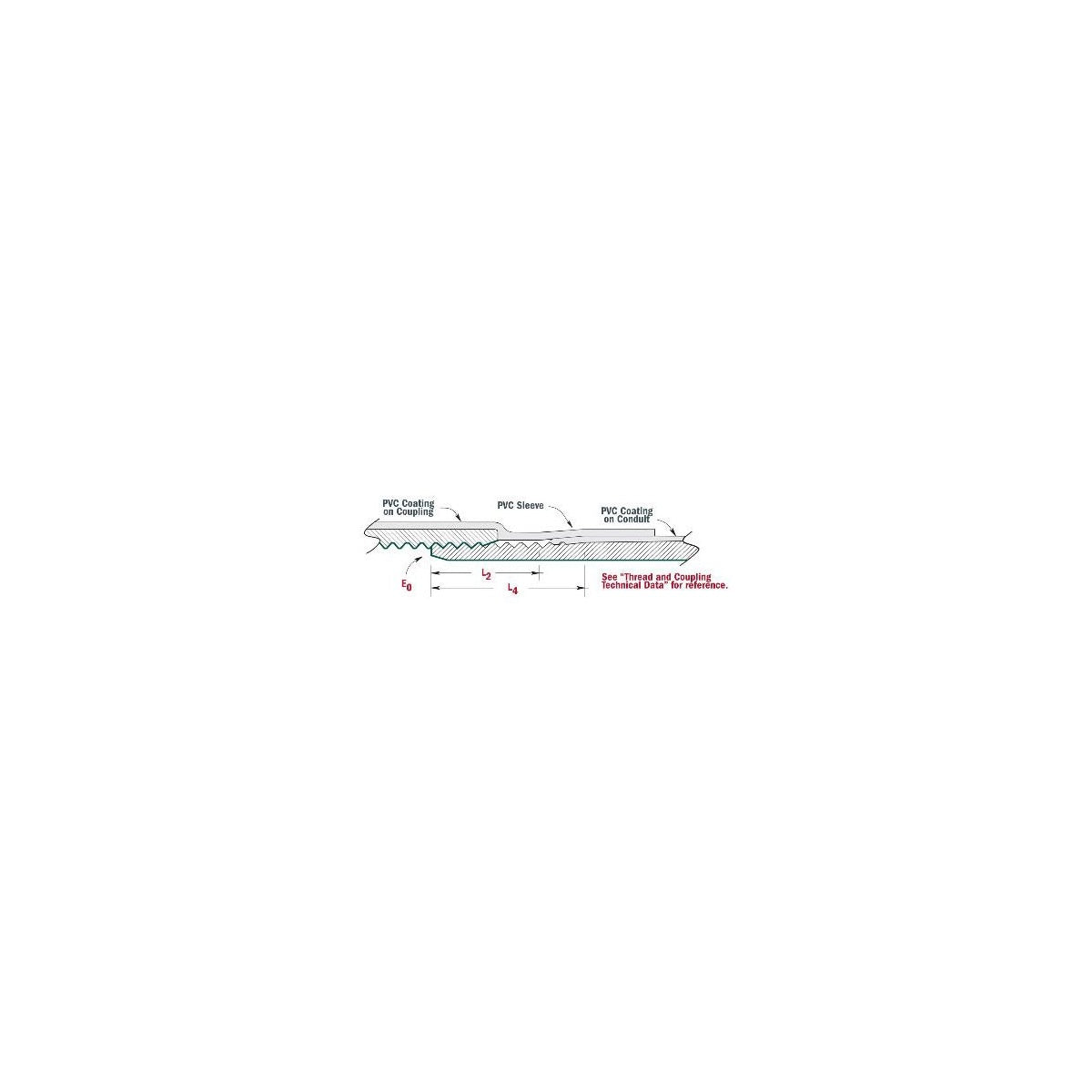

• Sealing PVC sleeves on both ends overlap conduit to prevent corrosive liquids and vapors from attacking threaded joints
• Straight tapped coupling design for reliable threaded connections
• Complies with UL 6, UL 6A, and CSA C22.2 standards for safety and performance
