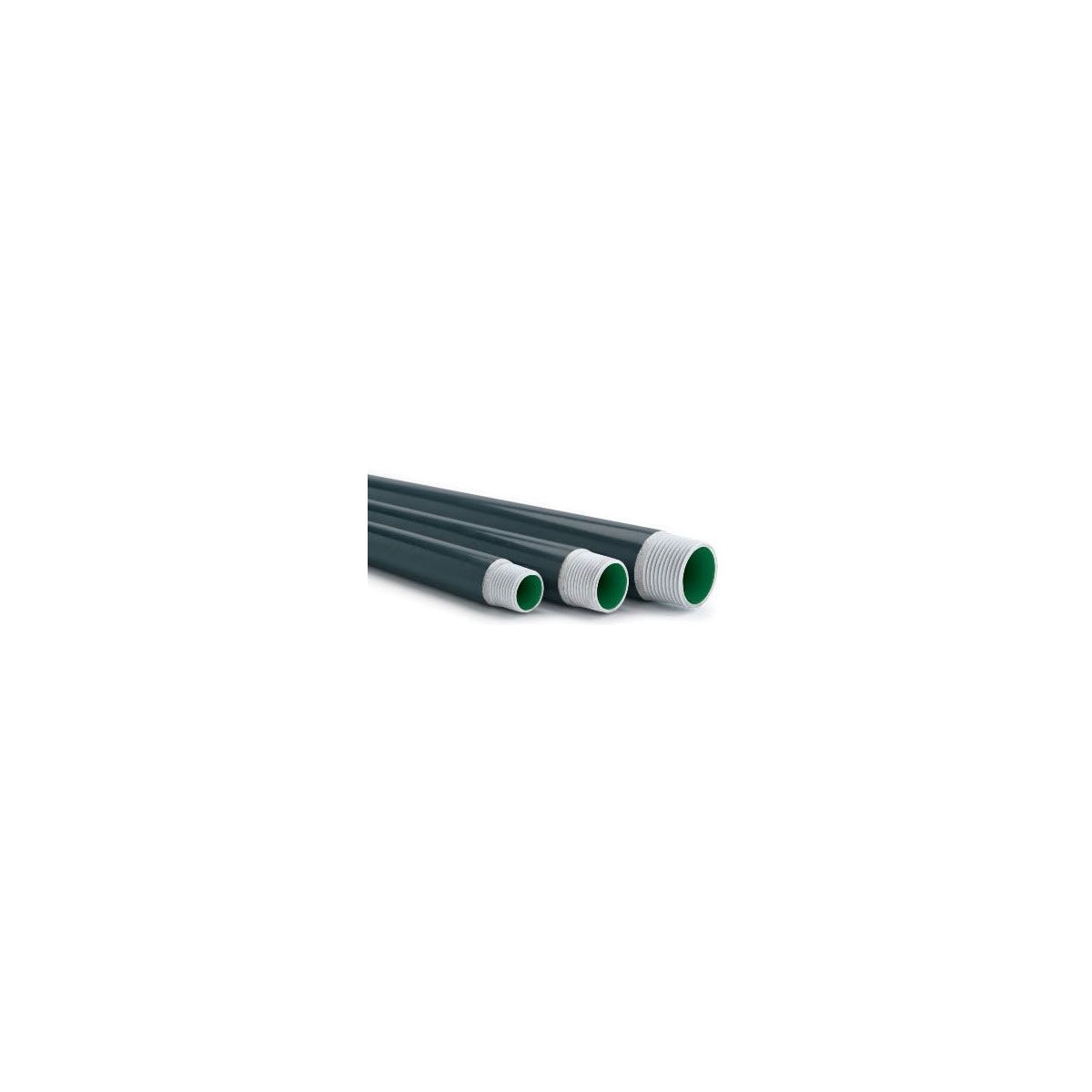

PM400-CON, Rigid Conduit – PVC Coated Steel Electrical Conduit Pipe

The PM400-CON rigid conduit is a PVC coated galvanized steel conduit designed for electrical distribution and lighting solutions in corrosive environments. It provides durable protection for wire and cable installations, suitable for use by electrical distributors and switchgear suppliers requiring a corrosion-resistant conduit system. The conduit features threaded ends for secure connections and includes couplings for installation continuity.

Specifications

• Material: Steel
• Finish: PVC coated Steel Electrical Conduit Pipe with 2 Mil Green Urethane interior, 40 Mil Gray PVC exterior, and clear urethane coated threads
• Trade Size: 4 Inch
• Length: 10 Foot (120 in)
• Inner Diameter: 4.05 Inch
• Outer Diameter: 4.58 Inch
• Wall Thickness: 0.225 Inch
• End Style: Threaded
• Color: Green (interior), Gray (exterior)
• Weight: 100.9 lbs
• Standard Package: 190 Foot per Pack
• Approval: UL (Canada and US), UL 6, CSA C22.2, ETL Verified
• Applicable Standards: ANSI C80.1, ISO 9001
• Thread Protector Color: Black
• Traverse Area: 12.882 Square Inch
• Includes: Coupling

Features

• Hot-dip galvanized inside and out with hot galvanized threads for enhanced corrosion resistance
• Durable PVC exterior coating with longitudinal ribs on couplings to protect against tool damage during installation
• Interior urethane coating of nominal 2 mil thickness for additional corrosion protection
• ETL Verified to Intertek ETL SEMKO High Temperature H2O PVC Coating Adhesion Test Procedure ensuring coating adhesion and longevity
• Suitable for field bending without cracking or flaking at temperatures above 30¬∞F (-1¬∞C)
• Meets UL 6 Standard for Safety and is CSA and ETL certified for use in electrical conduit systems
• Threaded ends ensure secure and reliable conduit connections
• Includes couplings and thread protectors to maintain system integrity
