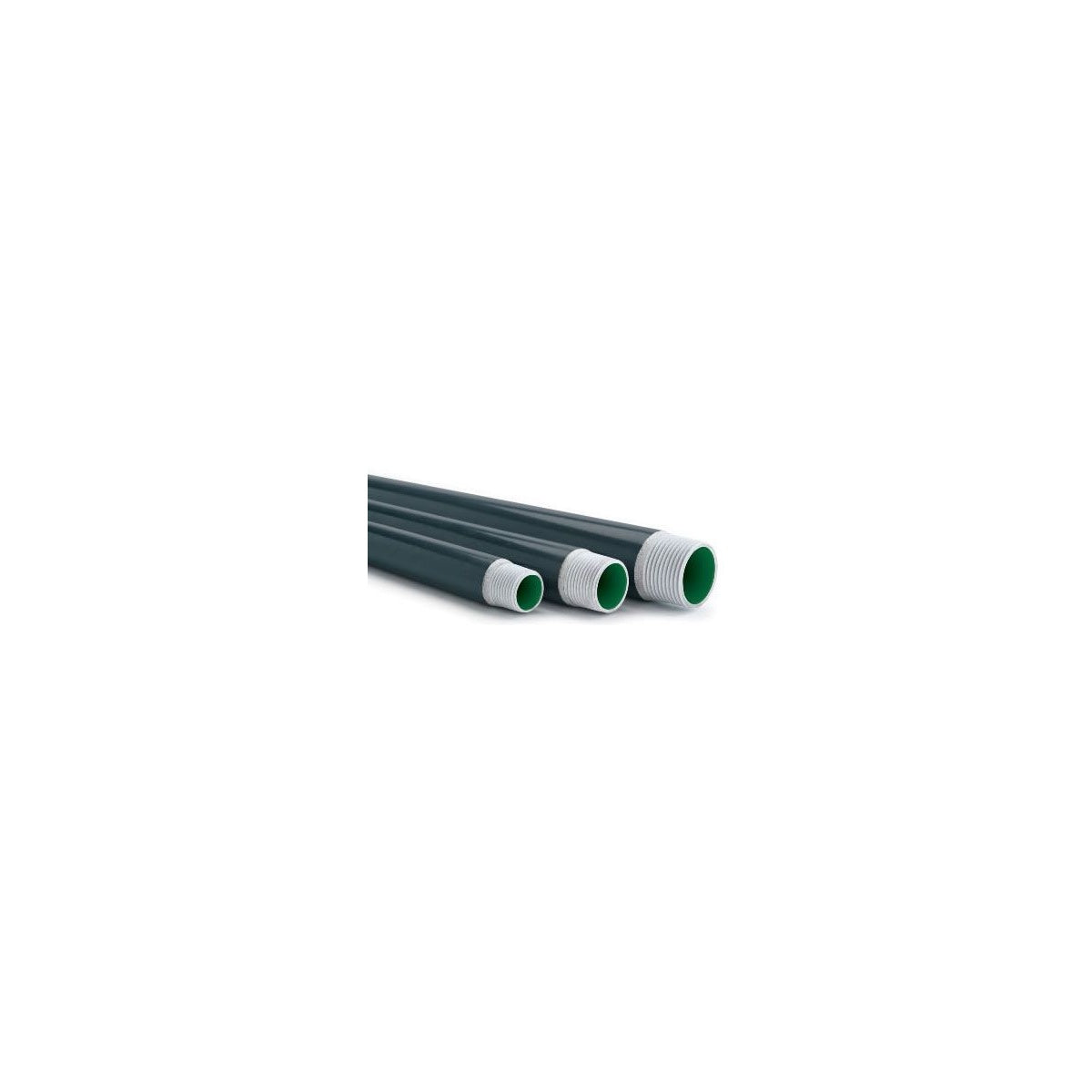

PM150-CON, Rigid Conduit – PVC Coated Steel Electrical Conduit

The PM150-CON rigid conduit by Perma-Cote is a galvanized steel conduit with a durable PVC coating designed for corrosion resistance in electrical installations. This conduit is suitable for use by electrical distributors and lighting solutions providers requiring reliable wire and cable protection in harsh environments. It is threaded and coated both internally and externally to meet stringent UL and CSA standards, making it ideal for applications demanding robust switchgear supplier components and rigid metal conduit systems.

Specifications

• Trade Size: 1-1/2 Inch
• Length: 10 Foot (120 in)
• Inside Diameter: 1.624 Inch
• Outside Diameter: 1.98 Inch
• Wall Thickness: 0.138 Inch
• Material: Galvanized Steel
• Finish: 2 Mil Green Urethane (Interior), 40 Mil Gray PVC (Exterior), Clear Urethane Coated Threads
• Weight: 26.8 Pounds
• End Style: Threaded
• Standard Package: 910 Foot per Pack
• Traverse Area: 2.071 Square Inch
• Thread Protector Color: Black
• Certifications: UL (Canada and US), UL 6, CSA C22.2, ETL
• Applicable Standards: ANSI C80.1, ISO 9001
• Manufacturer Part Number: 150-CON

Features

• Hot-dip galvanized inside and out for corrosion resistance
• Durable PVC exterior coating with longitudinal ribs to protect against installation tool damage
• Interior urethane coating of nominal 2 mil thickness for added protection
• Threaded ends with clear urethane coating to protect threads
• Includes coupling for installation convenience
• Complies with ETL Verified High Temperature H2O PVC Coating Adhesion Test
• Suitable for use in corrosive environments and meets UL and CSA electrical conduit standards
