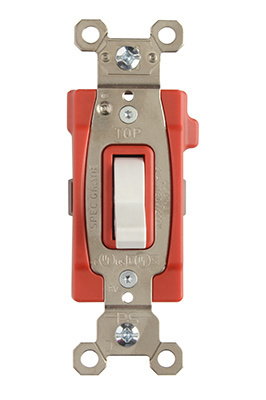

PlugTail® Three-Way 20A Toggle Switch, White - Industrial Electrical Switch

The PlugTail® Three-Way 20A Toggle Switch by Pass & Seymour is designed for commercial electrical applications requiring reliable three-way switching. This device is suitable for use by electrical distributors and lighting solutions providers seeking durable, easy-to-install wiring devices. It features factory-terminated PlugTail connectors that simplify installation by snapping into the back of the switch, eliminating the need for wire stripping or screw tightening. The switch is constructed from impact- and chemical-resistant thermoplastics, ensuring longevity and resistance to harsh environments typical in industrial and commercial settings.

Specifications

• Manufacturer: Pass & Seymour
• Manufacturer Part #: PT20AC3W
• Amperage Rating: 20 Amp
• Contact Rating: 20Amp, 120/277Vac
• Number of Poles: 3-Way
• Color: White
• Mounting: Wall
• Dimensions: 1.32 in (Width) x 3.281 in (Height)
• Insulation: Bare
• Product Weight: 0.2 lb
• Country of Origin: Mexico

Features

• Factory-terminated PlugTail connector for quick and consistent installation
• Impact- and chemical-resistant thermoplastic housing and toggle
• Auto-ground clip for assured positive grounding
• One-piece nickel-plated mounting strap for superior corrosion resistance
• Glass-reinforced nylon back body for durability and resistance to harsh cleaners
• Oversized silver alloy contacts for long life and improved heat dissipation
• No exposed terminals for finger-safe application before, during, and after installation
• Shallow design with heavy-duty bumpers for smooth and quiet operation
• UL Listed and cULus Listed, compliant with Federal Specification WS896 and CSA standards
