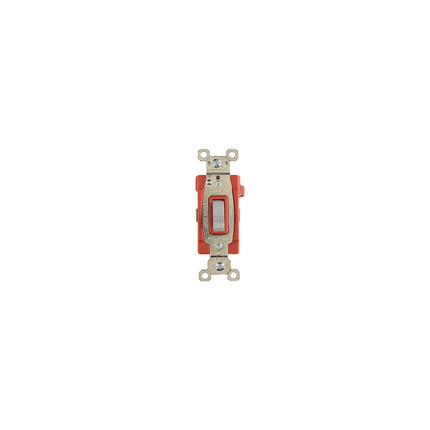

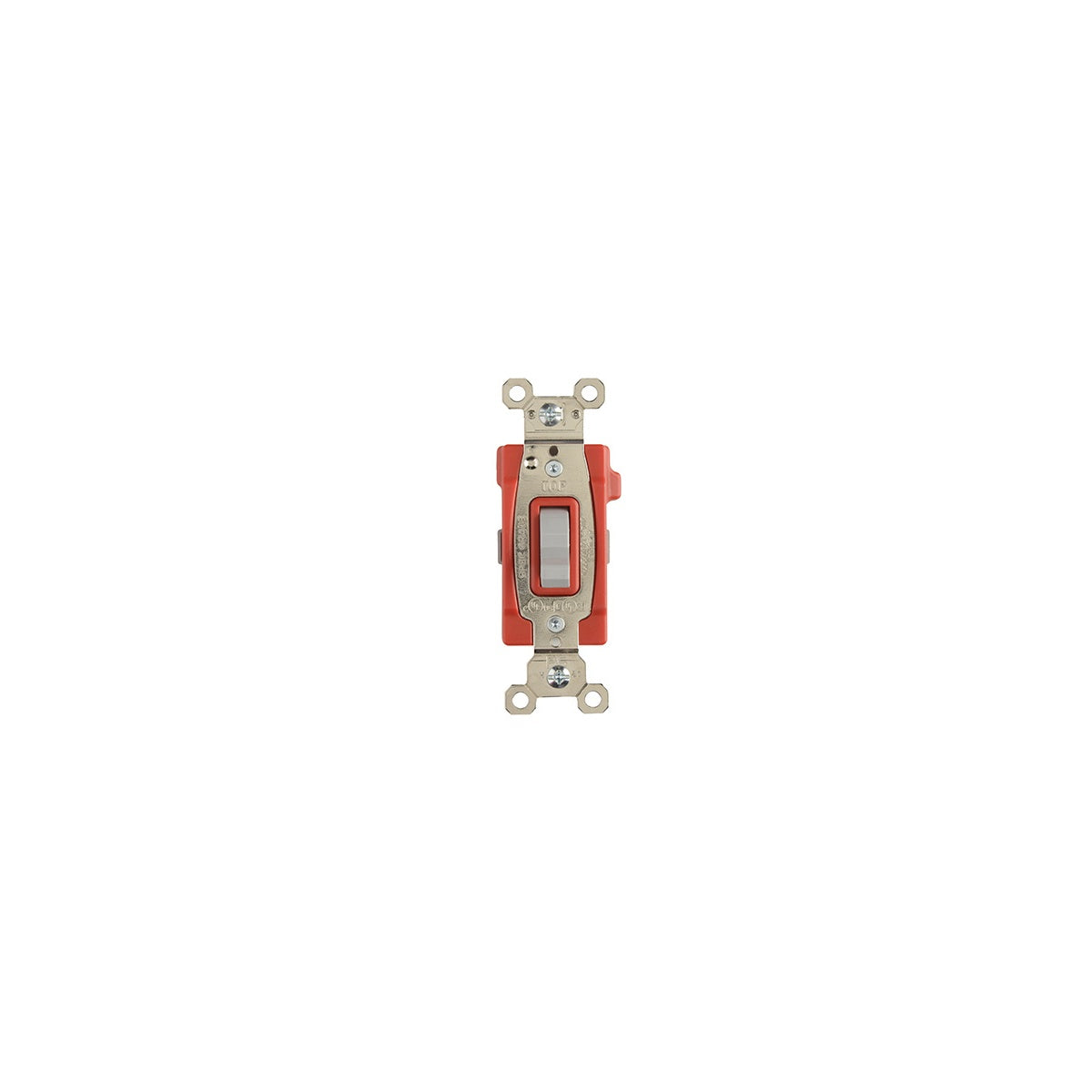

PlugTail® Three-Way 20A Toggle Switch, Gray - Industrial Electrical Switch

The PlugTail® Three-Way 20A Toggle Switch by Pass & Seymour is designed for commercial electrical applications, providing reliable switching for lighting and other electrical circuits. This industrial-grade switch features factory-terminated PlugTail connectors for quick, consistent installation, suitable for electrical distributors, lighting solutions providers, wire and cable specialists, and switchgear suppliers.

Specifications

• Manufacturer: Pass & Seymour
• Manufacturer Part #: PT20AC3GRY
• Application: Commercial
• Amperage Rating: 20 Amp
• Contact Rating: 20Amp, 120/277Vac
• Number of Poles: 3-Way
• Mounting: Wall
• Color: Gray
• Dimensions (W x H x L): 1.32 in x 3.281 in x 2.187 in
• Insulation: Bare
• Product Weight: 0.18 lbs
• Country of Origin: Mexico

Features

• Factory-terminated PlugTail connectors simplify installation with no wiring, stripping, or screw tightening required
• Impact- and chemical-resistant thermoplastic cover and toggle for durability in demanding commercial environments
• Glass-reinforced nylon back body provides strength and resistance to harsh cleaners
• One-piece nickel-plated brass mounting strap for superior corrosion resistance
• Auto-ground clip assures positive grounding
• Oversized silver alloy contacts reduce contact bounce and arcing for long life and reliable performance
• Finger-safe design with no exposed terminals before, during, or after installation
• UL Listed, cULus Listed, and compliant with Federal Specification WS896 and NEMA WD-1 and WD-6 standards
• Operating temperature range from -40¬∞C to +60¬∞C without impact
• Endurance rated for a minimum of 50,000 cycles under resistive and inductive loads
