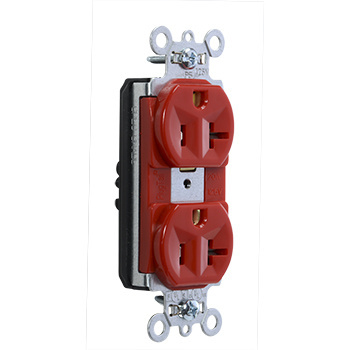

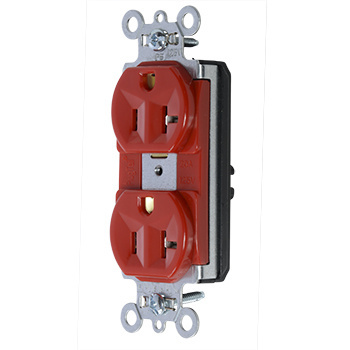

PlugTail® 20A 125V Spec-Grade Duplex Receptacle, Red
SKU: #319921
Part: #PT5362RED
UPC: 785007091717
PlugTail® 20A 125V Spec-Grade Duplex Receptacle, Red
SKU: #319921
Part: #PT5362RED
UPC: 785007091717
Next day delivery
Description
PlugTail® 20A 125V Spec-Grade Duplex Receptacle, Red – Specification Grade Electrical Receptacle
The PlugTail® 20A 125V Spec-Grade Duplex Receptacle by Pass & Seymour is designed for commercial electrical applications, providing a reliable and fast installation solution for electrical distributors, lighting solutions providers, and switchgear suppliers. This red receptacle features factory-terminated PlugTail® connectors that ensure consistent wiring installation regardless of installer skill level. With UL-Listed, finger-safe connectors and a matte nylon finish, it supports secure and safe electrical connections in wall-mounted applications.
Specifications
- Amperage Rating: 20A
- Voltage Rating: 125V
- NEMA Rating: 5-20R
- Number of Poles: Double Pole
- Number of Wires: 3
- Material: Nylon
- Finish: Matte
- Mounting: Wall
- Dimensions: 2.75 in (Height) x 1.5 in (Width)
- Dielectric Strength: Withstands 2000V minimum
- Environmental Conditions: UL94 V2 flammability rating
- Product Weight: 0.19 lb
- Country of Origin: Mexico
- Manufacturer: Pass & Seymour
- Manufacturer Part Number: PT5362RED
Features
- Factory-terminated PlugTail® connectors enable fast, error-free installation
- UL-Listed connectors keyed for proper wiring installation
- Finger-safe design with no exposed terminals before, during, or after installation
- Large crimped and welded brass contacts ensure reliable electrical connection
- Audible snapping latch confirms secure connector engagement and allows release
- Pre-stripped connector leads facilitate easier fastening to conductors compared to standard pigtails
- Durable nylon face with matte finish for commercial environments
- Complies with NEC and UL standards for safety and performance
