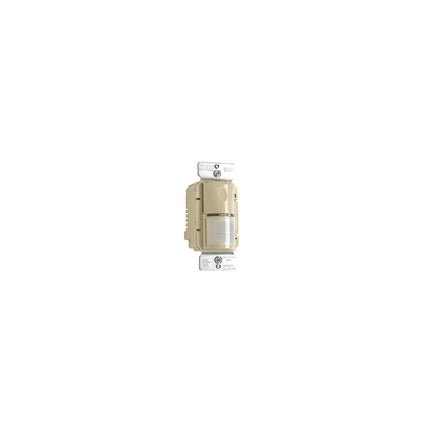

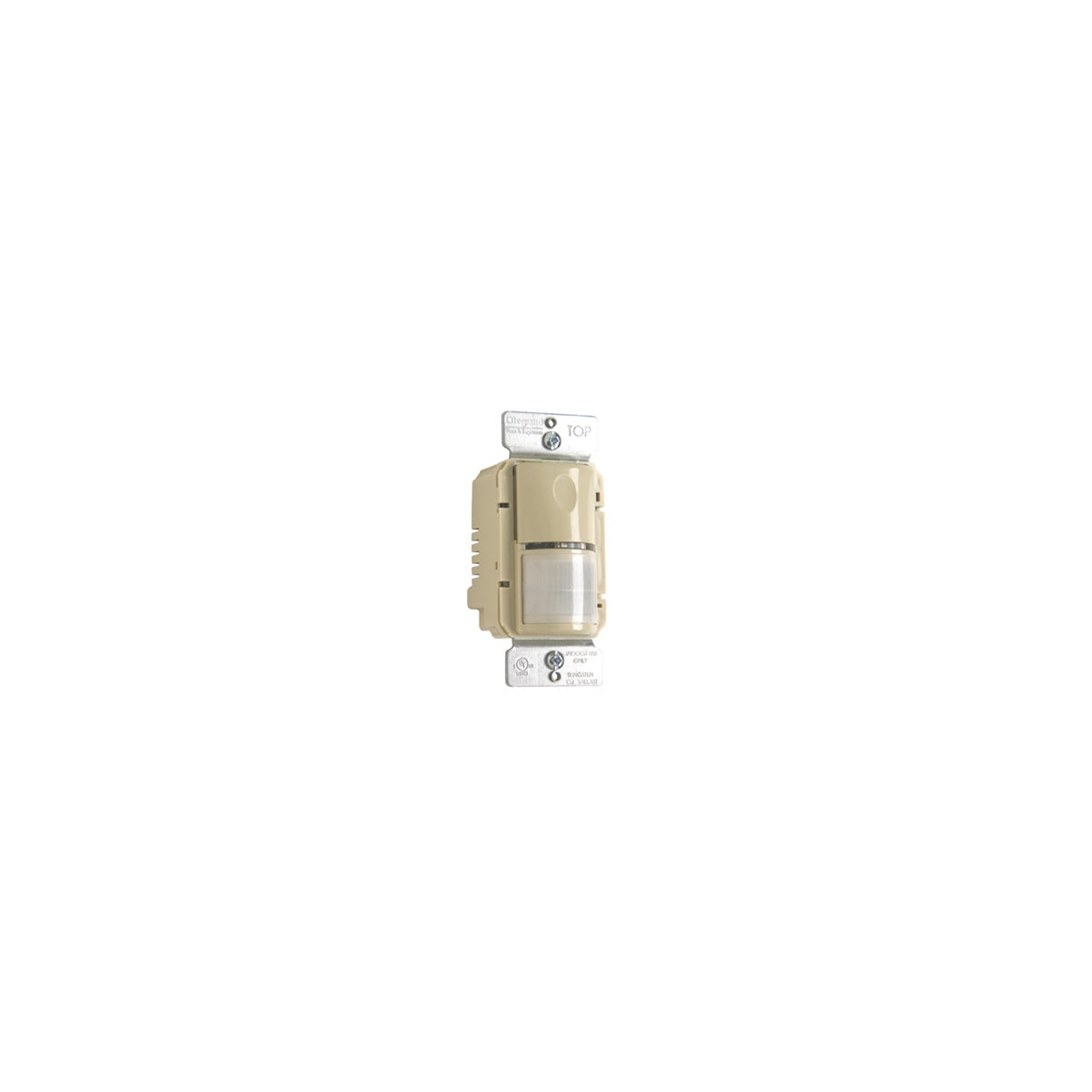

PlugTail Commercial Passive Infrared (PIR) Wall Switch détecteur, Ivory PTWSP250I - Occupancy Sensor for Electrical Distributor and Lighting Solutions

The PlugTail Commercial Passive Infrared (PIR) Wall Switch détecteur, Ivory PTWSP250I, is designed for commercial and industrial occupancy sensing applications. It features PlugTail® technology with a 3-wire connection system for reliable installation and operation. This compact decorator-style automatic wall switch includes a shallow 1" back body and a positive detection LED indicator. It operates without a minimum load requirement, making it suitable for a variety of lighting and electrical distributor applications requiring occupancy sensing and energy management.

Specifications

• Application: Commercial/Industrial
• Load: 120/277VAC
• Color: White
• Dimensions: 4.5 in (Height) x 2.5625 in (Width) x 1.55 in (Depth)
• Mounting Type: Wall
• Number of Wires: 3
• Indicator: LED
• Product Weight: 0.3080 lbs
• Environmental Conditions: Indoor Use Only
• Manufacturer: Pass & Seymour
• Manufacturer Part Number: PTWSP250I
• UPC: 785007016970

Features

• Commercial occupancy sensor with Passive Infrared (PIR) technology for automatic lighting control
• PlugTail® connector system for fast, accurate installation with finger-safe UL Listed housing
• Compact decorator design with shallow 1" back body to fit standard wall boxes
• Positive detection LED indicator for visual confirmation of occupancy sensing
• No minimum load requirement, compatible with a wide range of lighting loads
• Available in multiple colors including Ivory, White, Gray, and Light Almond for design flexibility

Downloads & Links

• PlugTail¬Æ Receptacle & Switch Connectors
• Dimmers & Fan Speed Controls Brochure
• Pass & Seymour Commercial and Industrial Products
• PlugTail‚Ñ¢ Passive Infrared Wall Switch Occupancy Sensor, PTWSP250
