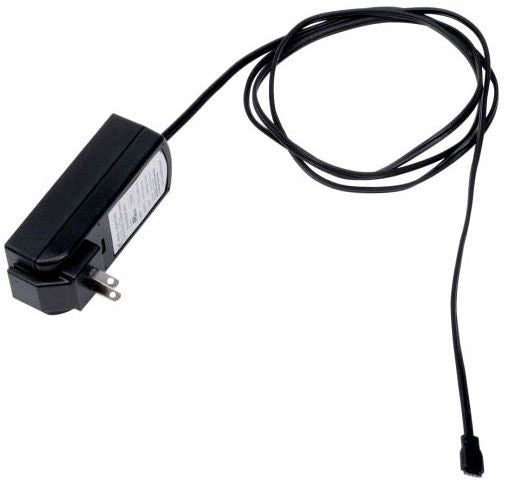

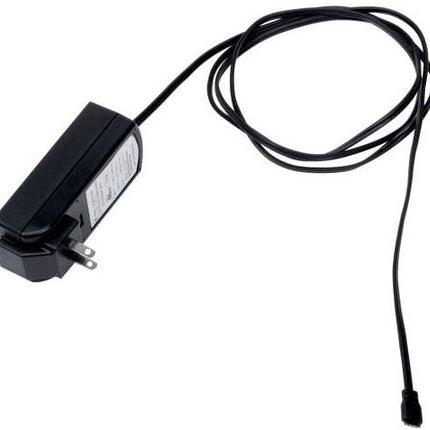

Plug-in Electronic Transformer for InvisLED Tape Light 120V Input 24V Output 100 Watt

This plug-in electronic transformer is designed for low voltage Class 2 applications, providing a reliable power source for InvisLED Tape Light systems. It features a 120V input and 24V output with a maximum load of 100 watts, suitable for under cabinet and tape lighting installations. The transformer includes an on/off toggle switch and a 72-inch detachable cord, enabling easy plug-and-play use. It is inherently protected and power limited, offering short circuit, overload, and thermal protection with an auto-reset function. The soft start feature reduces inrush current to extend lamp life, making it compatible with dimmable lighting systems. Ideal for electrical distributors and lighting solution providers seeking efficient wire and cable power supplies or switchgear components.

Specifications

• Input Voltage: 120V
• Output Voltage: 24V
• Maximum Load: 100 Watt
• Product Weight: 0.51 lb
• Material: Aluminum
• Finish: Black
• Dimmable: Yes
• Bulb Included: No
• Manufacturer: WAC Lighting
• Manufacturer Part #: EN-24100-P-AR-T
• UPC: 790576163949

Features

• Low voltage Class 2 electronic transformer for plug-and-play use
• On/off toggle switch at the base for convenient control
• 72-inch detachable cord for flexible installation
• Inherently protected and power limited to prevent short circuits
• Built-in auto-reset for short circuit, overload, and thermal protection
• Soft start delayed start feature to extend lamp life by reducing inrush current
• Compatible with InvisLED Tape Light systems, including models with lead cables for various lighting applications
