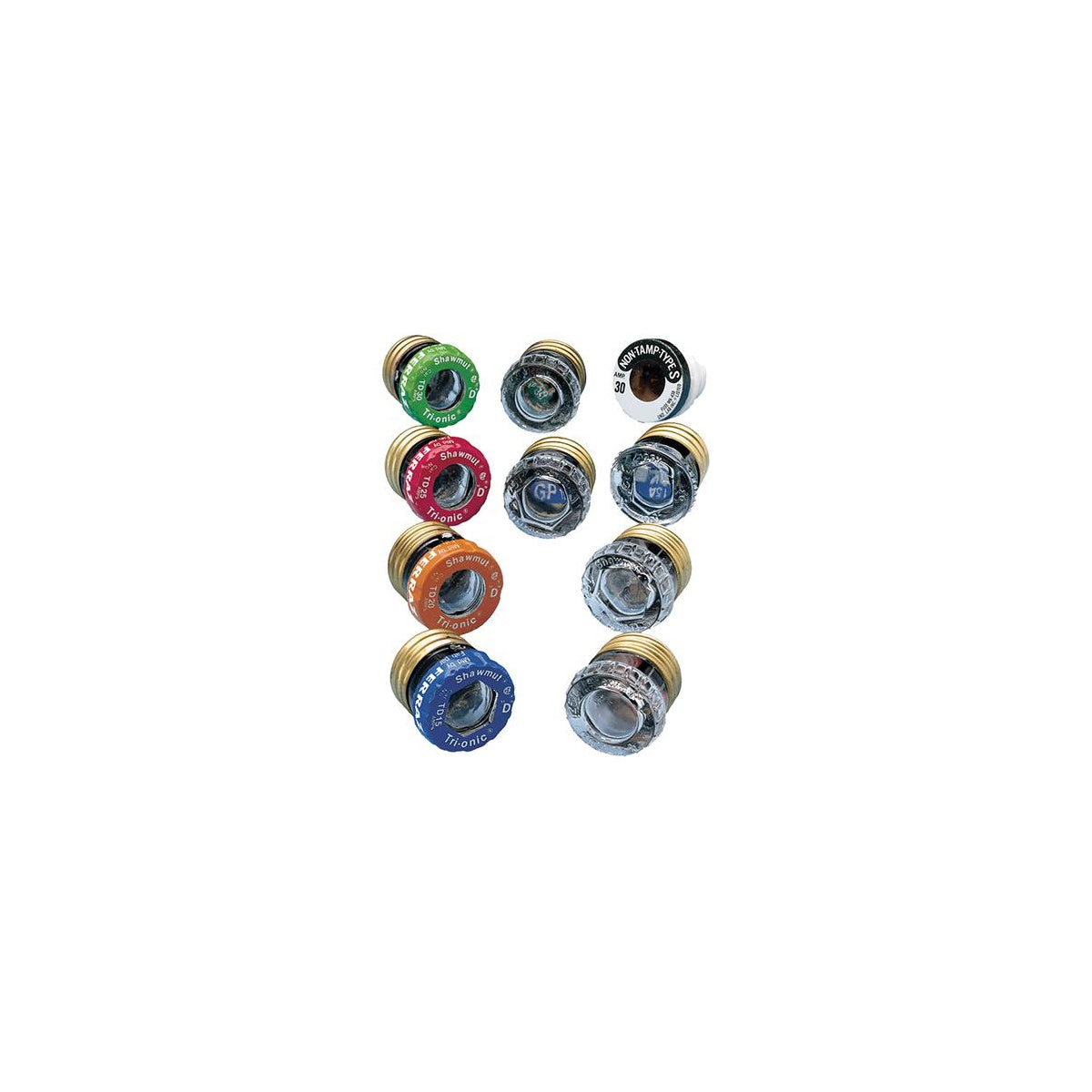

Plug Fuse 125V 30A Time-Delay Screw Mount Visual Indicator GSL Series
SKU: #196572
Part: #GSL30
UPC: 782001794071
Plug Fuse 125V 30A Time-Delay Screw Mount Visual Indicator GSL Series
SKU: #196572
Part: #GSL30
UPC: 782001794071
Description
Plug Fuse 125V 30A Time-Delay Screw Mount Visual Indicator GSL Series - Electrical Fuse
The Mersen Plug Fuse 125V 30A Time-Delay Screw Mount Visual Indicator GSL Series is designed for both industrial and residential electrical applications. It is suitable for use in receptacle and lighting circuits as well as motor loads, providing reliable circuit protection. This fuse is compatible with screw-in mounting systems and is ideal for electrical distributors and switchgear suppliers seeking durable and certified wire and cable protection solutions.
Specifications
- Voltage Rating: 125 VAC
- Amperage Rating: 30 A
- Interrupt Rating: 10 kA
- Fuse Class: Plug
- Mounting Type: Screw
- Connection: Screw In
- Dimensions (L x W x H): 1.29 in x 1.126 in x 1.126 in
- Diameter: 1.13 inches
- Material: Screw In
- Insulation Material: Glass
- Product Weight: 0.0600 lbs
- Manufacturer Part #: GSL30
Features
- Time-delay fuse suitable for motor loads and cycling circuits
- Visual indicator for fuse status
- UL Listed and CSA Certified for safety and compliance
- Low melting-point temperature elements for reliable protection
- Compatible with Type “S” tamper-resistant plug fuse adaptors
- Designed for industrial and residential receptacle and lighting circuits
