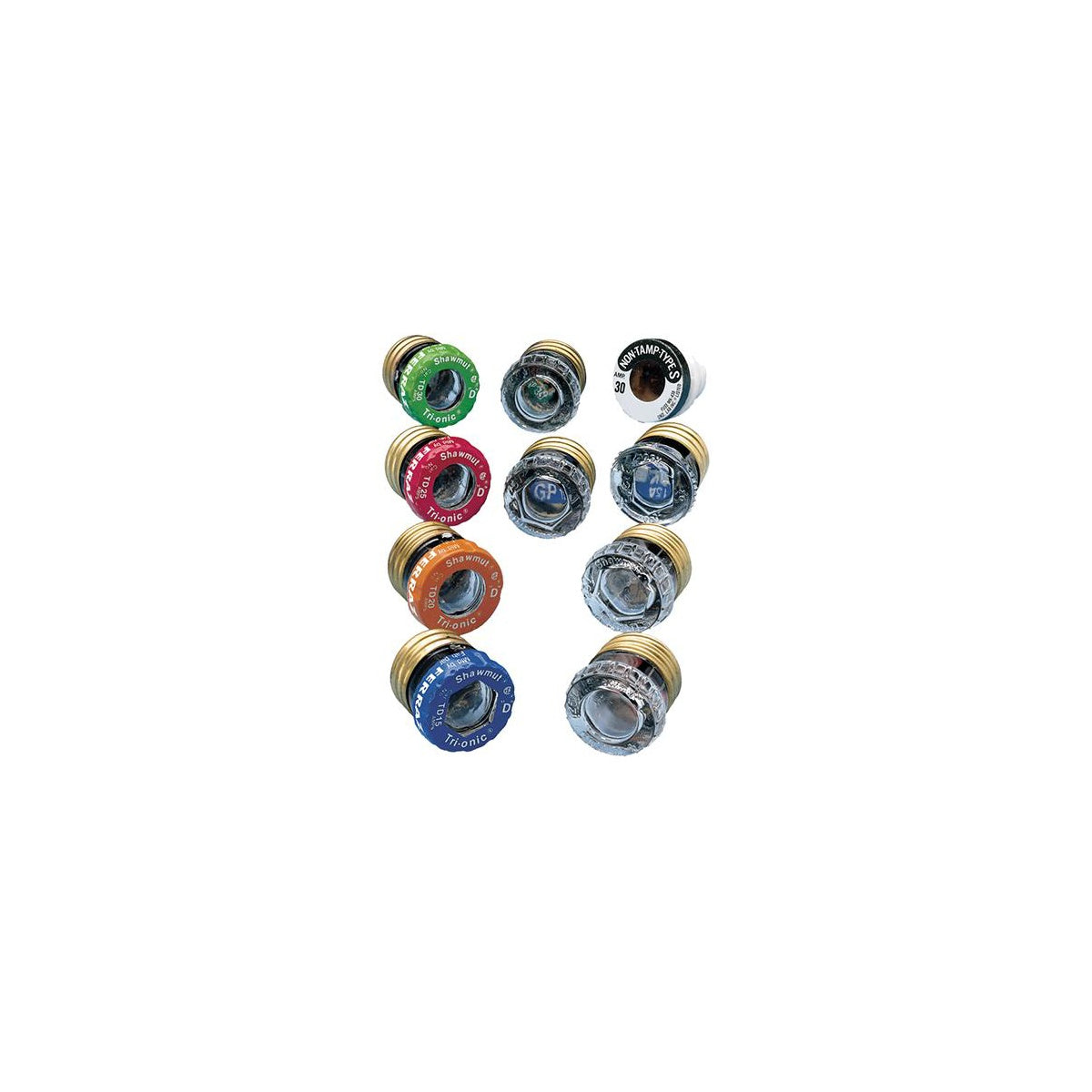

Plug Fuse 125V 20A Fast-Acting Screw Mount Visual Indicator GW Series

The Mersen Plug Fuse GW20 is designed for industrial and residential electrical applications, providing reliable circuit protection. This fast-acting, screw-mount fuse is suitable for receptacle and lighting circuits requiring a non-time delay response. It features a visual indicator for easy status checking and is part of Mersen’s GW series, known for compatibility with Edison base fuse holders. The fuse is constructed with glass insulation material and meets UL and CSA certification standards, making it an appropriate choice for electrical distributors and switchgear suppliers seeking dependable wire and cable protection solutions.

Specifications

• Voltage Rating: 125VAC
• Current Rating: 20A
• Fuse Class: Plug
• Mounting Type: Screw
• Insulation Material: Glass
• Diameter: 1.13 inches
• Manufacturer Part #: GW20
• Product Weight: 0.0600 lbs

Features

• Fast-acting fuse for non-time delay protection
• Visual indicator for fuse status
• Screw mount design for secure installation
• UL Listed and CSA Certified for safety compliance
• Compatible with Edison base fuse holders

Downloads & Links

• Drawings
• Spec Sheet
