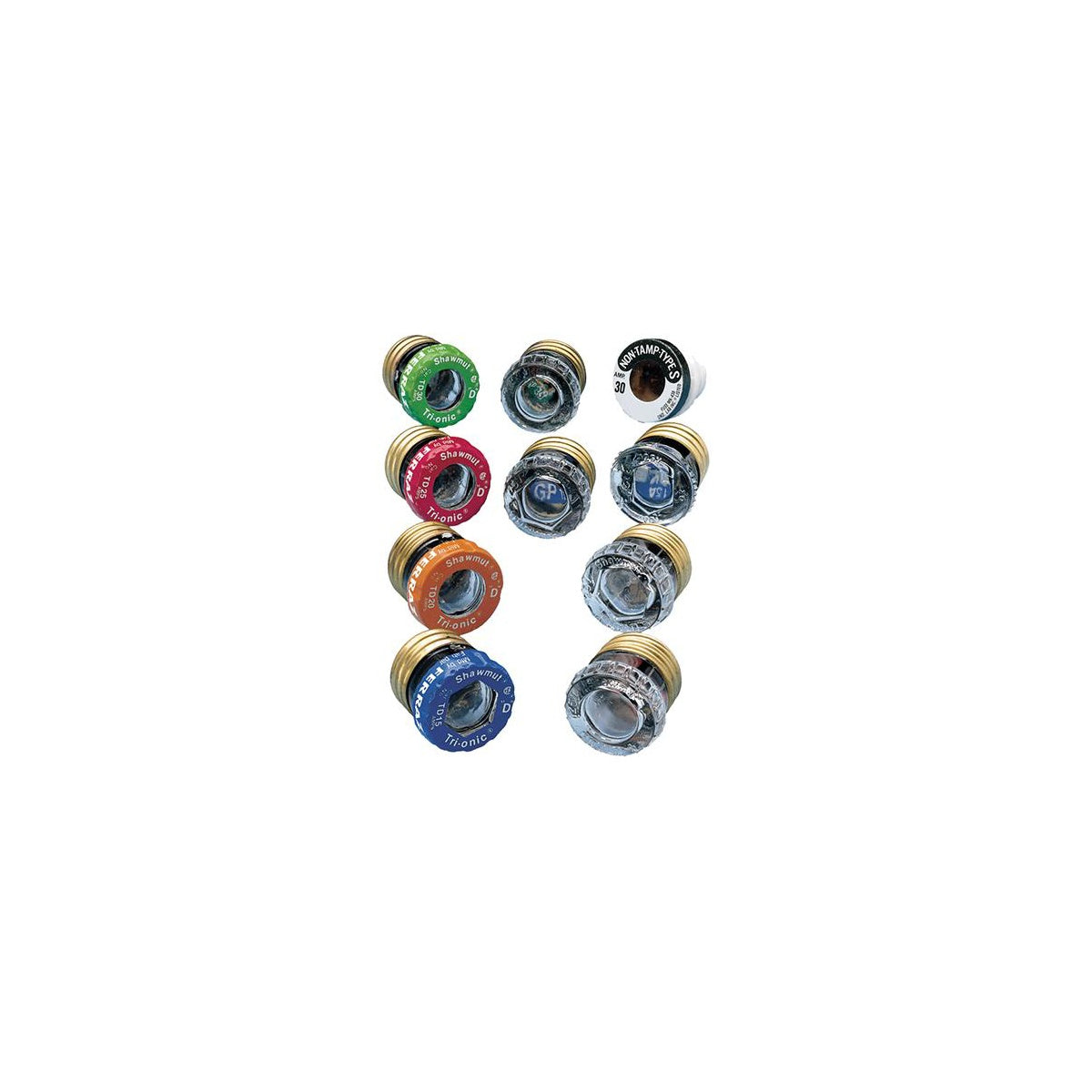

Plug Fuse 125V 15A Time-Delay Screw Mount Visual Indicator GSL Series

The Mersen Plug Fuse GSL Series is designed for industrial and residential electrical applications, specifically for motor loads requiring time delay protection. This fuse is a time-delay type with a visual indicator, suitable for use in receptacle and lighting circuits as well as motor circuits. It is engineered for screw-in mounting, making it compatible with Edison base fuse holders. Ideal for electrical distributors and switchgear suppliers, this fuse supports safe interruption of electrical faults with a 10 kA interrupt rating.

Specifications

• Voltage Rating: 125 VAC
• Amperage Rating: 15 A
• Interrupt Rating: 10 kA
• Fuse Class: Plug
• Mounting Type: Screw
• Connection: Screw In
• Dimensions (L x W x H): 1.29 in x 1.126 in x 1.126 in
• Diameter: 1.13 inches
• Material: Screw In
• Insulation Material: Glass
• Manufacturer Part Number: GSL15
• Product Weight: 0.0600 lbs

Features

• Time-delay fuse for motor load protection
• Visual indicator for fuse status
• Screw mount design for secure installation
• Low melting-point temperature elements for reliable operation
• UL Listed and CSA Certified for safety compliance
• Suitable for cycling loads and motor circuits
• Tamper-resistant design (Type “S” plug fuse)
