Plug Bond, Signal – Electrical Bonding Solution

The Plug Bond, Signal is designed for electrical bonding applications specifically to the rail web, suitable for use by electrical distributors and switchgear suppliers involved in rail infrastructure projects. This product ensures reliable conductivity and mechanical fastening in wire and cable grounding or bonding systems.

Specifications

• Material: Copper, Steel, Carbon Steel
• Finish: Electrogalvanized, Tinned, Pregalvanized

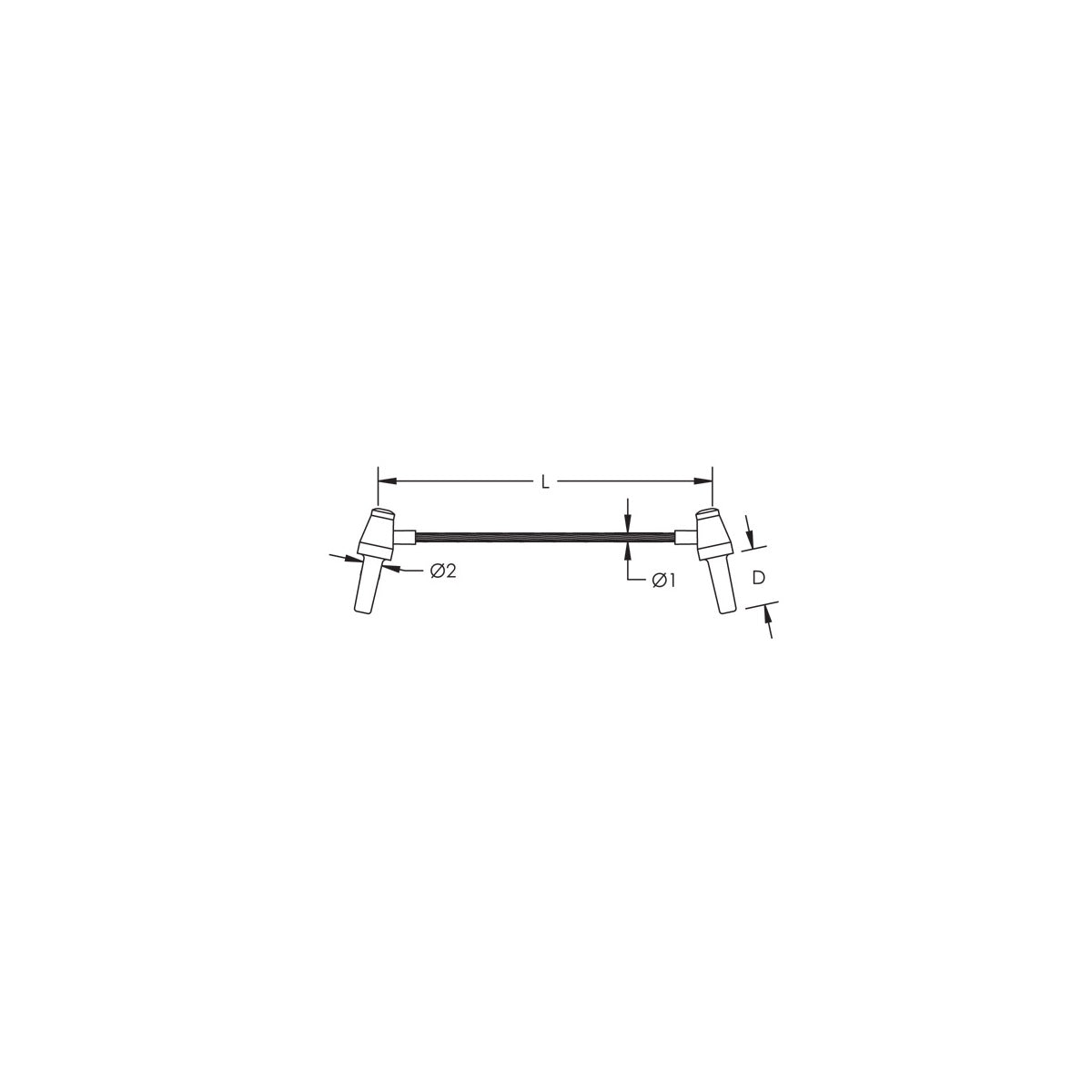

• Conductor Size: 0.330" Diameter
• Length: 48"
• Diameter 1: 0.330"
• Diameter 2: 0.413"
• Depth: 1 1/4"
• Product Weight: 28.4 lbs
• Manufacturer Part #: SBPAJA48

Features

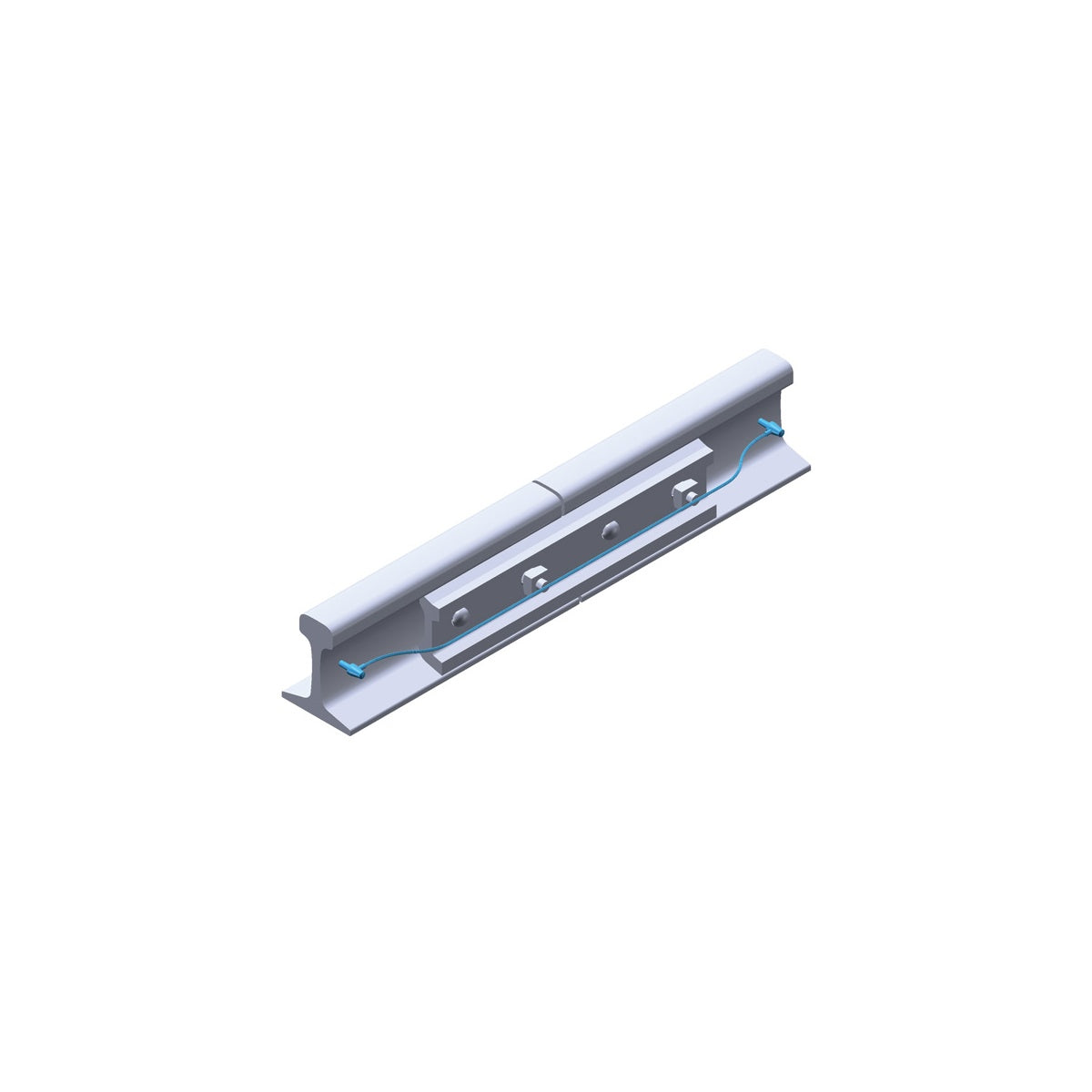

• Designed for application to the rail web
• Hammered into a 3/8" (9.5 mm) diameter hole drilled through the rail web and driven from the same side the hole was drilled
• Recommended installation requires a bond 12" (304.8 mm) longer than the splice bar
• Plug Bond Grease (T369) recommended for installation
