Plastic Bushing, 1-1/2", Plain Plastic Used with Locknut
SKU: #329122
Part: #325
UPC: 781747003256
Plastic Bushing, 1-1/2", Plain Plastic Used with Locknut
SKU: #329122
Part: #325
UPC: 781747003256
Next day delivery
Description

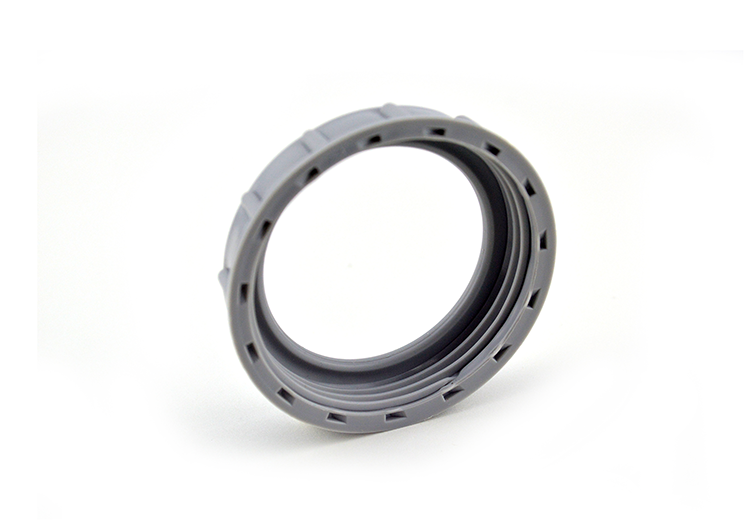

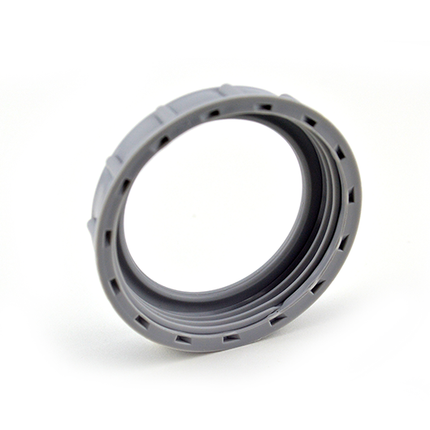

Plastic Bushing, 1-1/2" Plain Plastic Used with Locknut – Electrical Conduit Fitting
The Bridgeport 325 1-1/2-Inch Plastic Bushing is designed to terminate and protect conductors inside threaded rigid and IMC conduits when entering an electrical box. This component is used in conjunction with a locknut to prevent damage to wire insulation by providing a rounded surface inside the conduit entry point. It is suitable for electrical distributors and lighting solutions requiring reliable conduit fittings that maintain conductor integrity and meet recognized safety standards.
Specifications
- Material: Plastic
- Color: Gray
- Length: 2.1875 in
- Width: 1.5625 in
- Temperature Rating: 105°C
- Weight: 0.018375 lbs
- Manufacturer: Bridgeport Fittings
- Manufacturer Part #: 325
- Country of Origin: United States
- Made in USA: Yes
- Application: Used with locknut to terminate threaded rigid and IMC conduit to box, or with connector to prevent damage to wire insulation
Features
- Plain plastic construction for corrosion and chemical resistance
- Low-cost, maintenance-free design
- Rounded surface prevents damage to wire insulation
- Meets OSHA-recognized and NRTL-listed electrical safety standards
