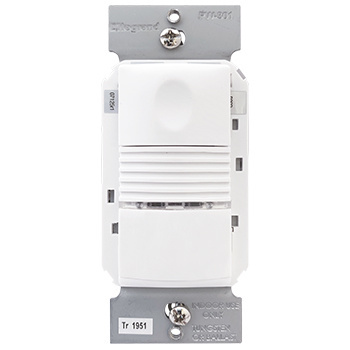

PIR Wall Switch Occupancy Sensor, White
SKU: #252827
Part: #PW301W
UPC: 754182935260
PIR Wall Switch Occupancy Sensor, White
SKU: #252827
Part: #PW301W
UPC: 754182935260
Next day delivery
Description
PIR Wall Switch Occupancy Sensor, White - Passive Infrared Lighting Control
The PIR Wall Switch Occupancy Sensor by WattStopper is a passive infrared (PIR) sensor designed to automatically turn lights ON and OFF based on room occupancy. Ideal for retrofit projects and small enclosed spaces such as offices, conference rooms, and break rooms, this sensor provides high sensitivity to both small and large movements. It supports multi-way control from up to four locations and is compatible with 2-wire or 3-wire electrical connections, making it suitable for various wiring configurations. The sensor is a reliable solution for electrical distributors and lighting solution providers aiming to optimize energy efficiency and lighting automation.
Specifications
- Voltage: 120/240/277 VAC, 50/60 Hz
- Load Rating: 1000W at 120 VAC (tungsten, ballast, LED, 1/4 HP), 1200W at 240/277 VAC
- Dimensions: Height 4.8 in, Width 2.0 in, Depth 2.99 in
- Color: White
- Number of Poles: Multi-Location
- Weight: 0.47 lbs
- Coverage: Major motion 35' x 30', Minor motion 20' x 15'
- Time Delay: Adjustable from 5 to 30 minutes
- PIR Sensitivity: High or Low (50%) adjustable
- Walk-Through Mode: Turns lights OFF after 3 minutes if no motion detected after initial 30 seconds
- Test Mode: 10 minutes with 5-second time delay
- Audible and Visual Alerts: Selectable warnings before lights turn OFF
- Multi-Way Capability: Supports wiring of up to 4 sensors for common load control
- Compliance: Meets 2017 NEC requirements; BAA/TAA-compliant models available
- Manufacturer: WattStopper
- Country of Origin: China
Features
- Advanced PIR technology for reliable occupancy detection
- Selectable manual ON or automatic ON modes for energy savings and user control
- Optional neutral connection with breakaway tab for easy installation in 2-wire or 3-wire setups
- Vandal-resistant lens with precise coverage and durability
- LED indicator for occupancy detection status
- Compatible with standard decorator wall plates
- Service mode allows operation as a manual service switch in case of sensor failure
- Supports multi-location control with consistent sensor communication via signal wire
- Light level sensing holds load OFF when adequate daylight is present, with simple setup
