PIR Wall Switch Occupancy Sensor, 24V, White - Passive Infrared Occupancy Sensor

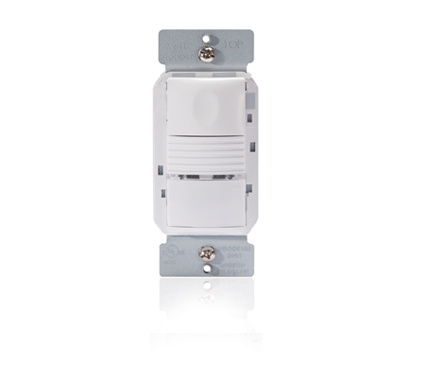

The PIR Wall Switch Occupancy Sensor PW-100-24 is a low voltage passive infrared (PIR) sensor designed to automatically turn lighting ON and OFF based on occupancy detection. It is suitable for small enclosed spaces such as offices, conference rooms, and lunch/break rooms where line voltage wiring is unavailable or restricted. This sensor offers high sensitivity to both small and large movements, making it an effective solution for energy savings in commercial lighting applications. It integrates easily with building automation systems through its isolated relay output, providing enhanced control capabilities for electrical distributors and lighting solutions providers.

Specifications

• Voltage: 18-24 VDC, 24 VAC, and half-wave rectified AC
• Current Consumption: 20 mA
• Relay Rating: Single-pole, double-throw isolated relay rated for 1 A @ 30 VDC
• Time Delay Settings: 5, 10, 15, 20, 25, or 30 minutes, plus walk-through and test modes
• Coverage: Major motion 35‚Äô x 30‚Äô, Minor motion 20‚Äô x 15‚Äô
• Sensitivity Adjustment: PIR high/low
• Dimensions: 2.73‚Äù x 1.76‚Äù x 1.83‚Äù (69.3 mm x 44.7 mm x 46.5 mm)
• Color: White
• Product Weight: 0.3 lb
• UL and cUL Listed
• Country of Origin: China
• Five Year Warranty

Features

• High sensitivity to detect small and large movements for reliable occupancy sensing
• Selectable Manual-ON or Auto-ON operation modes for energy savings and user convenience
• Detection Signature Processing eliminates false triggers and provides immunity to RFI and EMI
• Zero-crossing relay switching for extended relay life
• Vandal-resistant lens combining precise coverage with durability
• Selectable walk-through mode to turn lights off shortly after brief occupancy
• Test mode for quick and easy sensor adjustments
• LED indicator for occupancy detection status
• Selectable audible and/or visual alerts for impending shutoff
• Automatic return to Auto-ON mode after manual light off for presentation settings
• Optional light level sensing with simple setup to prevent unnecessary lighting
• Service mode allows operation as a service switch in case of sensor failure
• Compatible with decorator-style wall plates
