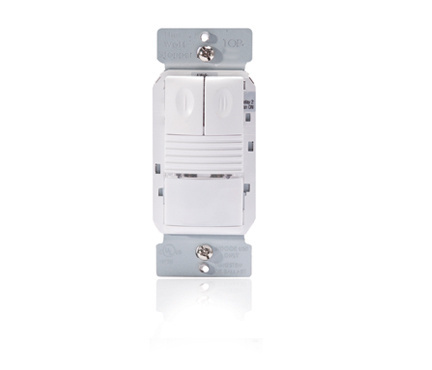

PIR Wall Switch Occupancy Sensor, 120/277V, White
SKU: #252915
Part: #PW302W
UPC: 754182935321
PIR Wall Switch Occupancy Sensor, 120/277V, White
SKU: #252915
Part: #PW302W
UPC: 754182935321
Description
PIR Wall Switch Occupancy Sensor, 120/277V, White – Passive Infrared Lighting Control
The WattStopper PW-302 is a passive infrared (PIR) wall switch occupancy sensor designed to automatically turn lighting loads ON and OFF based on room occupancy detection. It features dual relays for controlling two independent lighting circuits, making it suitable for applications requiring bi-level switching or multi-load control. Ideal for electrical distributors and lighting solution providers, this sensor supports retrofit and new construction projects in small enclosed spaces such as offices, conference rooms, and break rooms. The device complies with NEC 2017 requirements and is compatible with 120/240/277 VAC wiring systems, supporting both 2-wire and 3-wire installations.
Specifications
- Voltage: 120/240/277 VAC; 50/60 Hz
- Load Rating: Relay 1 - 0-1000W ballast, LED, tungsten, 1/4 HP @120VAC; Relay 2 - 0-800W ballast, LED, tungsten, 1/6 HP @120VAC
- Dimensions (L x W x D): 2.73” x 1.75” x 1.81” (69mm x 44mm x 46mm)
- Coverage: Major motion 35’ x 30’, Minor motion 20’ x 15’
- Time Delay Settings: 5, 10, 15, 20, 25, or 30 minutes; includes walk-through and test modes
- Sensitivity Adjustment: PIR high/low
- Multi-location control: Supports multi-way wiring from up to four locations
- UL and cUL Listed
- Product Weight: 4.85 lbs
- Color: White
- Country of Origin: China
- Manufacturer Part #: PW302W
- Five year warranty
Features
- Dual relays allow independent control of two lighting loads or circuits
- Advanced PIR technology detects occupancy and automatically controls lighting
- Selectable Manual-ON or Auto-ON modes for each relay
- Walk-through mode turns lights off after 3 minutes if no motion is detected following initial occupancy
- Zero-crossing relay switching for extended relay life
- Optional neutral connection with break-off tab for flexible wiring in 2-wire or 3-wire applications
- Selectable audible and visual alerts for impending light shutoff
- Optional light level sensor holds secondary lights off when ambient light exceeds preset threshold (affects relay 2)
- Vandal resistant lens for durability and precise coverage
- Compatible with decorator-style wall plates
- Service mode allows sensor to operate as a manual service switch in case of failure
