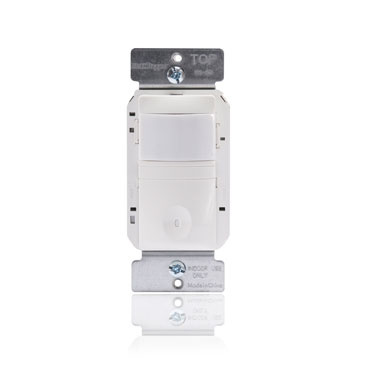

PIR Vacancy Sensor, 2-wire, White – Lighting Control Sensor

The PIR Vacancy Sensor CS-50 is designed for automatic shutoff in single-pole lighting control applications, suitable for residential and light commercial use. Engineered to comply with California’s Title 24-2013 energy code, this sensor uses passive infrared (PIR) technology to detect motion and control lighting or fan motors without the need for a neutral wire. It is ideal for electrical distributors and lighting solution providers seeking reliable vacancy sensors that integrate easily with standard decorator wall plates.

Specifications

• Manufacturer: WattStopper
• Model Number: CS50W
• Voltage: 120 VAC, 60 Hz
• Load Rating: 0-600W incandescent, LED, fluorescent, CFL, MLV, ELV, or 1/6 hp motor
• Coverage: 180¬∞, maximum 600 ft¬≤ (56 m¬≤)
• Time Delay Settings: Adjustable from 30 seconds to 30 minutes
• Dimensions (L x W x D): 4.5 in x 3.0 in x 2.74 in
• Color: White
• Operating Conditions: 32-131¬∞F (0-55¬∞C), 95% RH non-condensing, indoor use only
• UL and cUL Listed
• Country of Origin: China
• Product Weight: 0.35 lbs

Features

• Manual-on, automatic-off control with pushbutton activation
• Passive Infrared (PIR) sensing technology for motion detection
• Adjustable time delay with preset 30-minute default
• LED status indicator blinks when motion is detected (optional)
• Low-profile styling compatible with decorator wall plates
• Relay-based switching with no current leakage in off mode for safety
• Two-wire sensor design requiring no neutral connection
• Compliant with California Title 24 energy code
• Five-year warranty
