PIR Low Temp Ceiling Occupancy Sensor, 24VDC, 90 linear ft – Passive Infrared Occupancy Sensor

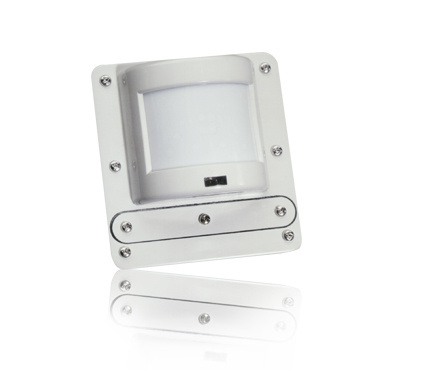

The WattStopper CB-100 is a passive infrared (PIR) occupancy sensor designed for reliable operation in cold and damp environments, including outdoor applications when used with a light level sensor. It is engineered to control indoor or outdoor lighting and HVAC systems based on occupancy detection within its coverage area. Ideal for electrical distributors and lighting solutions providers requiring robust wire and cable compatible sensors and switchgear supplier integration.

Specifications

• Voltage: 24VDC
• Current Consumption: 20mA
• Power Supply: Wattstopper Power Packs (BZ series)
• Isolated Relay Rating: 1A @ 30VDC
• Operating Temperature Range: -40°F to 95°F (-40°C to 35°C)
• Time Delay Adjustment: 15 seconds, 5 minutes, 10 minutes
• Sensitivity Adjustment: 4 settings
• Dimensions (W x H x D): 4.0 in x 3.3 in x 4.0 in
• Product Weight: 0.59 lbs
• Country of Origin: China
• Manufacturer Part Number: CB-100-1

Features

• Passive Infrared (PIR) sensor technology for motion detection through changes in infrared energy
• Designed for installation in cold and damp conditions, suitable for outdoor use with light level sensor
• 24VDC isolated relay with normally open (NO) or normally closed (NC) contacts based on occupancy
• Compatibility with WattStopper Power Packs supporting up to 7 sensors per power pack
• Swivel bracket mount for adjustable sensor alignment on walls or ceilings
• Four sensitivity levels and selectable time delay settings for customizable operation
• Coverage optimized for ceiling mounting heights between 10 to 15 feet, with adjustable coverage patterns
