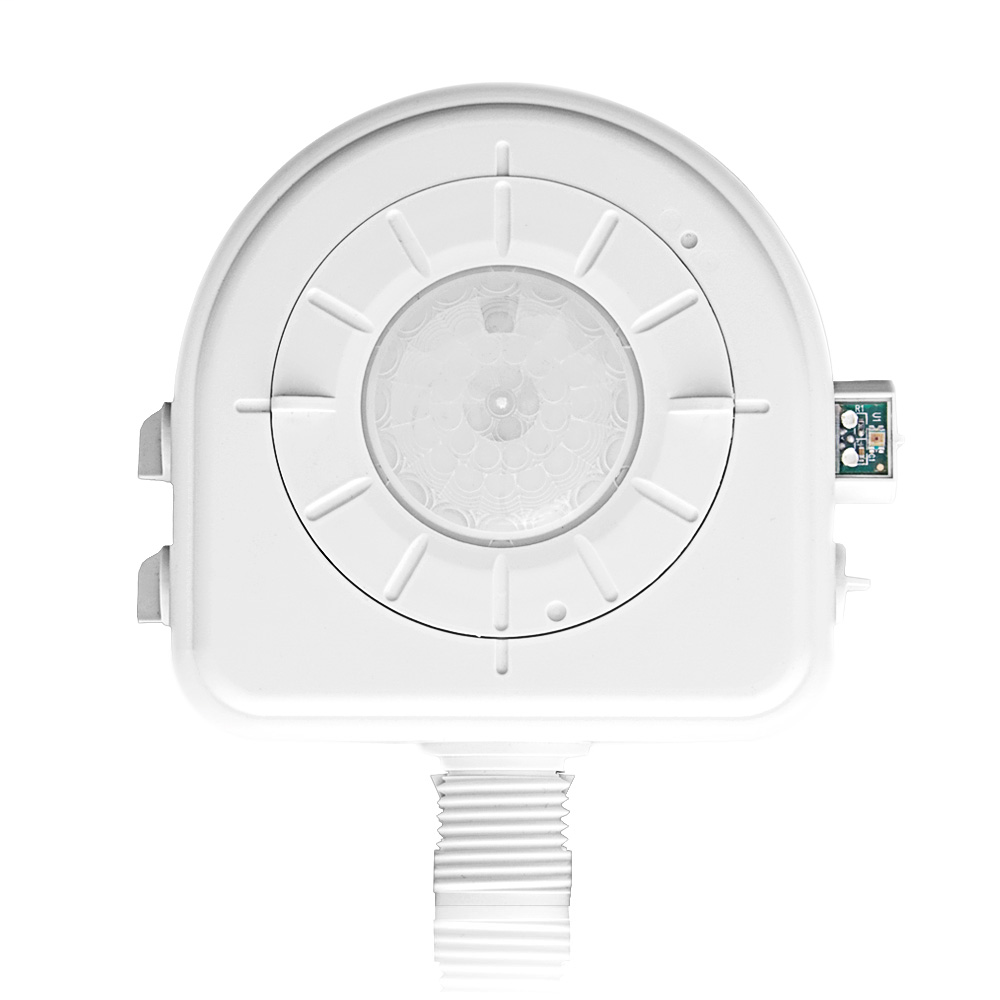

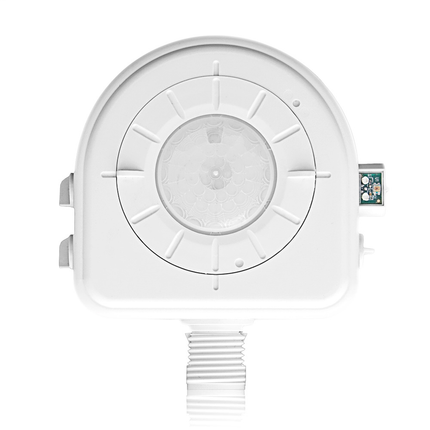

PIR Fixture Mount High Bay Occupancy Sensor Lighting Control with Light Sensor, 120-347V, Title 24 Compliant, ASHRAE 90.1 Compliant

This PIR fixture mount high bay occupancy sensor by Leviton is designed for efficient lighting control in commercial and industrial applications such as warehouses, manufacturing, and cold storage facilities. It integrates passive infrared (PIR) occupancy detection with an adjustable light sensor (photocell) for daylight harvesting, enabling automatic activation of lighting only when occupancy is detected and ambient light levels are low. The sensor supports a wide voltage range of 120-347V and complies with Title 24 and ASHRAE 90.1 standards, making it suitable for energy-efficient lighting solutions distributed by electrical distributors and switchgear suppliers.

Specifications

• Coverage: 8-40 square feet
• Frequency: 50/60 hertz
• Color: White
• Product Weight: 0.6660 lbs
• Manufacturer: Leviton
• Manufacturer Part Number: OSFHP-ITW
• UPC: 078477528136

Features

• Integrated rotating adjustable light sensor for light hold-off and daylight harvesting
• 24-hour auto-calibration for set-it-and-forget-it operation
• Dual relay and alternating relay options available for bi-level control and lamp life extension (on related models)
• Interchangeable 360° high bay and low bay lenses included for versatile coverage
• Adjustable time delay up to 30 minutes without requiring power or tools
• 42-inch pre-stripped color-coded wire leads for quick installation
• Quicksnap feature enables easy fixture mounting via standard 1/2" knockout
• H.I.S. (High Inrush Stability) technology with zero crossing circuitry and robust mechanical latching relay for reliable operation
• Non-volatile memory retains last state during power interruptions
• LED indicator blinks on motion detection, visible from long distances
• Compatible with electronic and magnetic ballasts, low-voltage transformers, and HVAC control
• Meets UL 916, CSA 22.2 No. 205 M1983, FCC certified
• Can be used to comply with 2016 Title 24, Part 6 occupancy sensing requirements
