Pipe Straps, Pipe Clamps & Hangers (Series 700) - J-Hanger for Conduit and Pipe

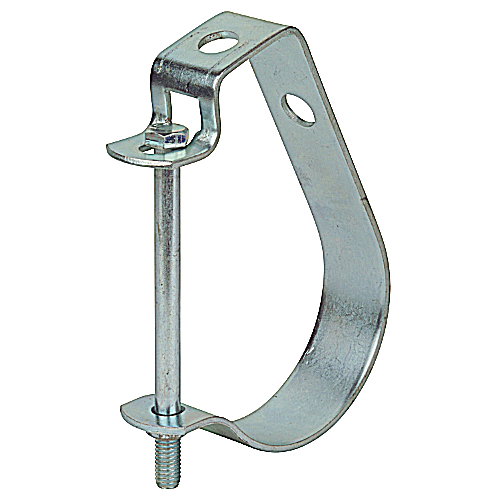

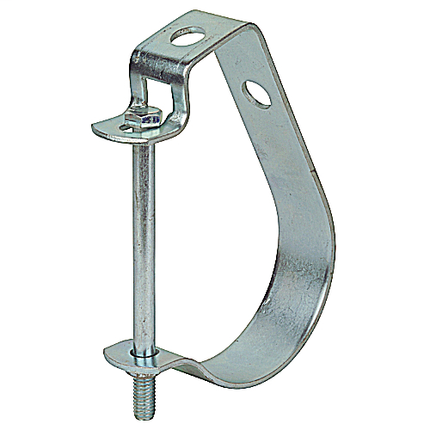

This Superstrut Pipe Strap from the Series 700 line is designed for use with conduit and pipe, providing a secure and efficient mounting solution. The hanger features a lay-in (J-Hanger) design that saves installation time by allowing conduit or pipe to be laid in place after the hanger is mounted. It is suitable for electrical distributors, lighting solutions, wire and cable installations, and switchgear suppliers requiring reliable pipe support.

Specifications

• Manufacturer Part #: C711 3/4 HDG
• Pipe Size: 3/4 Inch
• Material: Metal (Steel)
• Finish: Hot-Dip Galvanized
• Type of Fastening: Stud Bolt
• Application: For use with conduit and pipe
• Box Quantity: 50
• Product Weight: 4.5 lbs

Features

• Lay-in J-Hanger design for faster installation
• Hot-dip galvanized steel for corrosion resistance
• Compatible with 3/8 inch A rod size
• Durable metal construction suitable for various electrical and plumbing applications

Available Documents

• Technical Drawing / Data Sheet – PDF
