PIP45NW/D10 LED Floodlight by RAB – High-Efficacy Lighting Solutions

The PIP45NW/D10 is a durable, high-performance LED floodlight designed for outdoor lighting applications. Ideal for electrical distributors and lighting solution providers, this fixture delivers efficient illumination with a neutral 4000K color temperature, suitable for ground mounting in wet locations. It offers a reliable alternative to traditional 150W metal halide lamps with enhanced energy savings and long service life.

Specifications

• Manufacturer: RAB
• Model Number: PIP45NW/D10
• Input Wattage: 50 watts
• Lumens: 6,636 lumens
• Efficacy: 132 lumens per watt
• Color Temperature: 4000 kelvins (Neutral)
• Color Accuracy: 75 CRI
• Lens Material: Frosted Acrylic
• Weight: 4.6 lbs

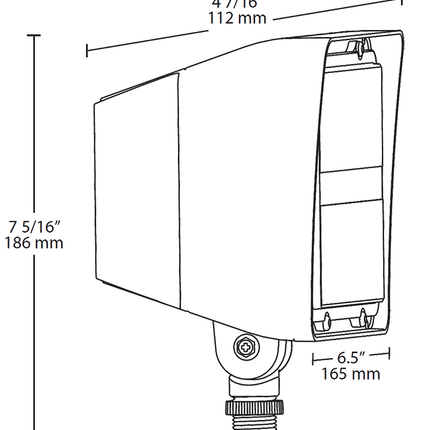

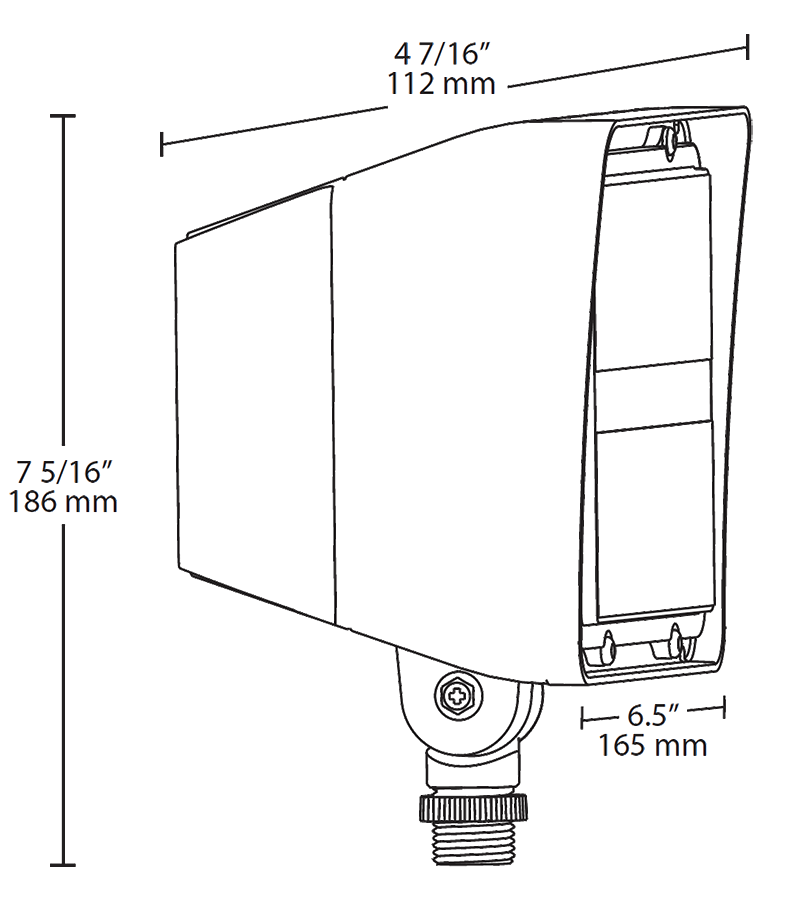

• Dimensions: 7 5/16" (H) x 6.5" (W) x 4 7/16" (D)
• Operating Temperature Range: -40°C (-40°F) minimum starting temperature to 40°C (104°F) maximum ambient temperature
• IP Rating: IP66 for dust and water ingress protection
• Beam Spread: NEMA Type 7H x 6V
• Driver Type: Constant Current, Class 2, 120-277VAC, 50/60 Hz with 0-10V dimming capability
• Surge Protection: ±1kV line-to-line, ±2kV line-to-ground
• Lifespan: 60,000 hours (L70)
• Equivalency: Replaces 150W Metal Halide
• Warranty: 5-Year Limited Warranty

Features

• Long-life, high-efficacy surface-mount LEDs
• Frosted acrylic lens with built-in optics for uniform light distribution
• Precision die-cast aluminum housing and mounting arm for robust construction
• High-temperature silicone gaskets ensure environmental sealing
• 0-10V dimming standard, dims down to 10%
• Suitable for wet locations and ground mounting
• Mercury and UV free, RoHS-compliant components
• Buy American Act (BAA) compliance available upon request

Downloads & Links

• Spec Sheet
• LM79
• Instructions
