Pin Adapter Terminal for Electrical Connections

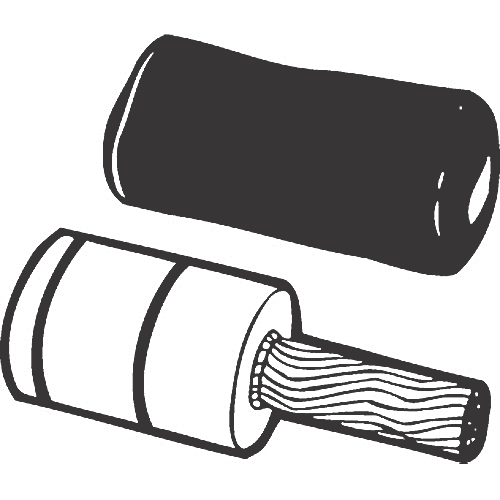

The Blackburn Pin Adapter Terminal (Catalog Number: 66627, Manufacturer Part #: PA25) is designed specifically for aluminum conductors with a wire size of 250 kcmil. This connector is suitable for use by electrical distributors and switchgear suppliers requiring reliable aluminum-to-copper transitions in wiring and cable applications. It features a tin-plated aluminum barrel pre-filled with oxide inhibitor and capped to ensure corrosion resistance and longevity. The tin-plated stranded copper wire pigtail allows insertion into either aluminum or copper connectors, facilitating versatile electrical connections in lighting solutions and electrical distribution systems.

Specifications

• Material: Aluminum
• Color: Brown
• Cable Size: 250 kcmil
• Product Weight: 40 lbs per 100 units
• UPC: 783786134083
• Packaging: Inner Quantity 10, Outer Quantity 100
• Standard: UL E63167

Features

• Connector for aluminum conductor only; pigtail may be inserted into either aluminum or copper connectors
• Tin-plated stranded copper wire pigtail for enhanced conductivity and corrosion resistance
• Tin-plated aluminum barrel pre-filled with oxide inhibitor and capped for reliable, long-term performance
• 90¬∞C rating per UL standard
• Die color code: Brown for easy identification
