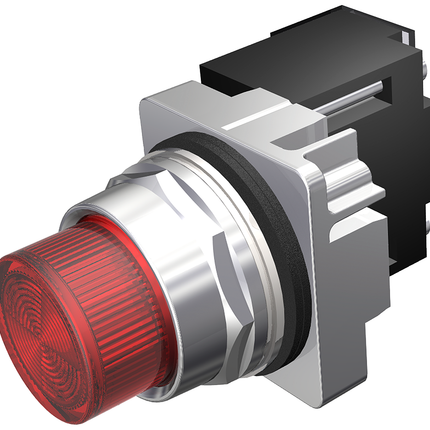

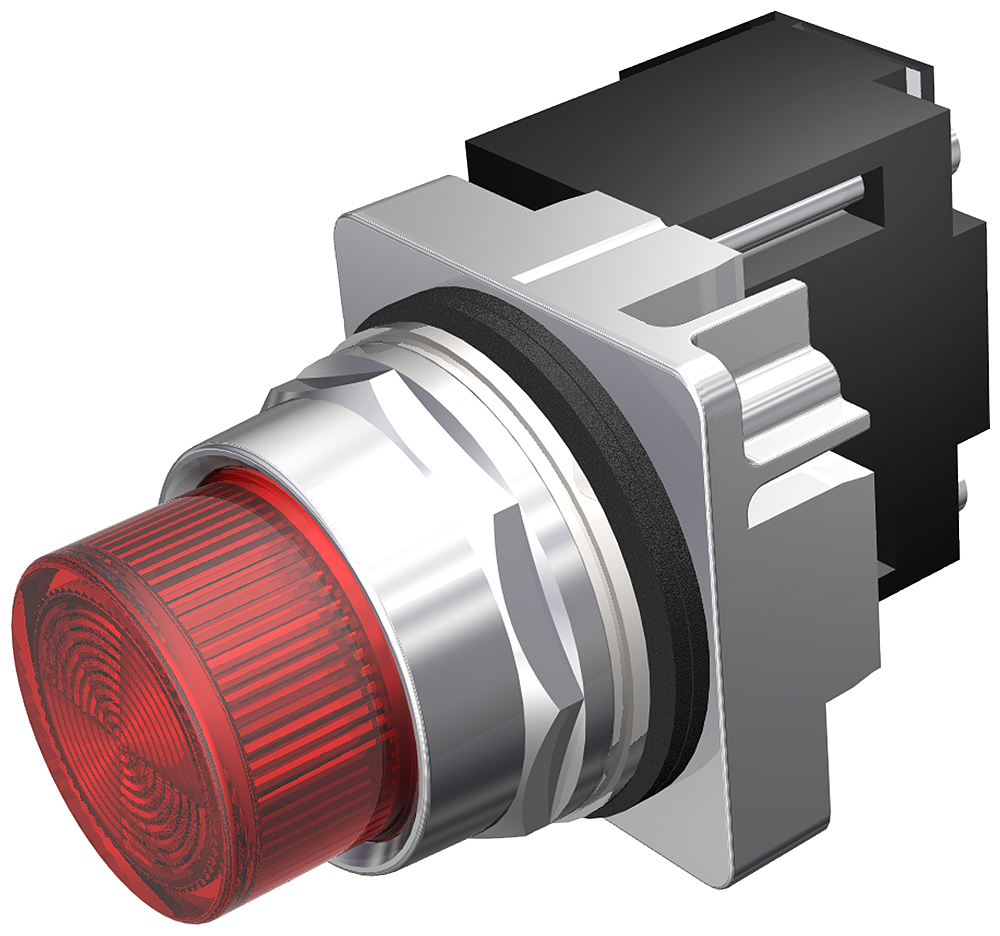

PILOT LIGHT, RED, XFMR, INC, 120V - Illuminated Indicator Light

This Siemens pilot light is a 30mm heavy-duty illuminated indicator light designed for electrical distribution and switchgear applications. Featuring a chrome finish and watertight/oiltight metal construction, it is suitable for use in demanding environments requiring reliable visual signaling. The unit operates with a 120V AC incandescent lamp and includes a red plastic lens. It is UL listed and CSA certified, meeting NEMA 1, 3, 3R, 4, 4X, 12, and 13 standards, as well as automotive standards, making it a robust choice for lighting solutions in industrial and commercial electrical systems.

Specifications

• Manufacturer: Siemens
• Manufacturer Part #: 52PL4G2
• Voltage: 120V AC
• Lens Color: Red
• Lens Material: Plastic
• Mounting Size: 30mm
• Dimensions (W x H x L): 2.45 in x 5.10 in x 3.00 in
• Weight: 0.605 lb
• Certifications: UL Listed, CSA Certified
• NEMA Ratings: 1, 3, 3R, 4, 4X, 12, 13
• Country of Origin: Mexico

Features

• Heavy-duty complete metal unit with chrome finish
• Watertight and oiltight construction for harsh environments
• Illuminated indicator light with transformer type lamp
• Suitable for electrical distributors and switchgear suppliers
• Complies with automotive and industrial standards

Downloads & Links

• 2D Wiring Diagram
