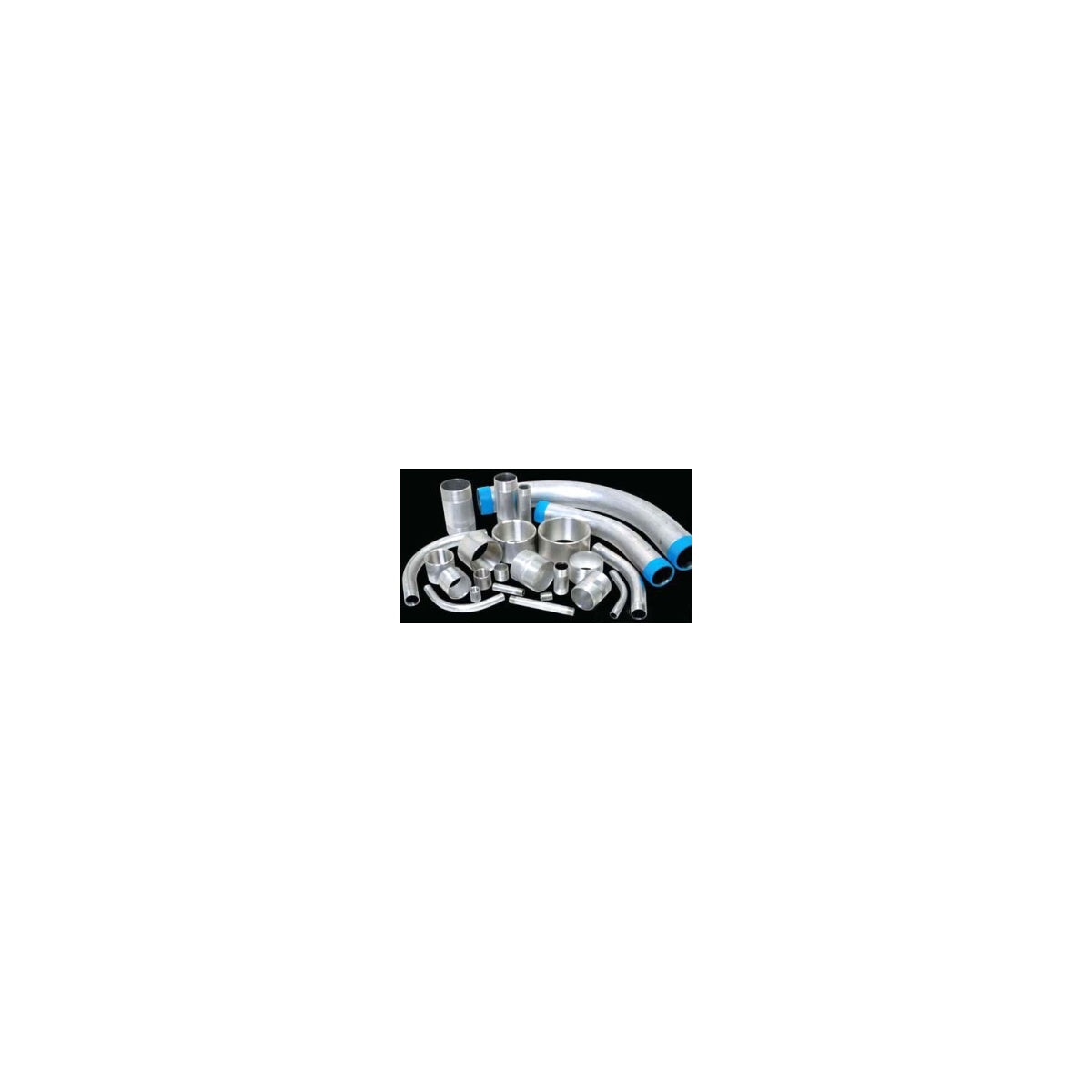

PICOMA 7468 1-1/4 ALUM ELBOW 90DEG 12RAD – Aluminum Rigid Conduit Elbow

This PICOMA 7468 aluminum rigid conduit elbow is designed to change the direction of a raceway by 90 degrees with a 12-inch radius. It is suitable for use in electrical distribution and lighting solutions where aluminum conduit fittings are required for durable and precise conduit bends. The elbow is a key component for wire and cable routing in raceway systems, providing a secure and reliable conduit pathway.

Specifications

• Manufacturer: Picoma Industries
• Manufacturer Part #: 7468
• Inside Diameter: 1.394 in.
• Outside Diameter: 1.660 in.
• Product Weight: 2.0000 lbs
• Application: Used to change the direction of a raceway
• Flexibility: No

Features

• Constructed from aluminum for corrosion resistance and lightweight handling
• 90-degree bend with 12-inch radius for smooth wire pulling and minimal stress on cables
• Threaded on both ends to mate securely with conduit threads conforming to ANSI/ASME B1.20.1 standards
• Designed for use in rigid aluminum conduit raceways

Downloads & Links

• Spec Sheet
