PICOMA 7362 6 GRC ELBOW 90DEG 48RAD – Electrical Raceway Elbow

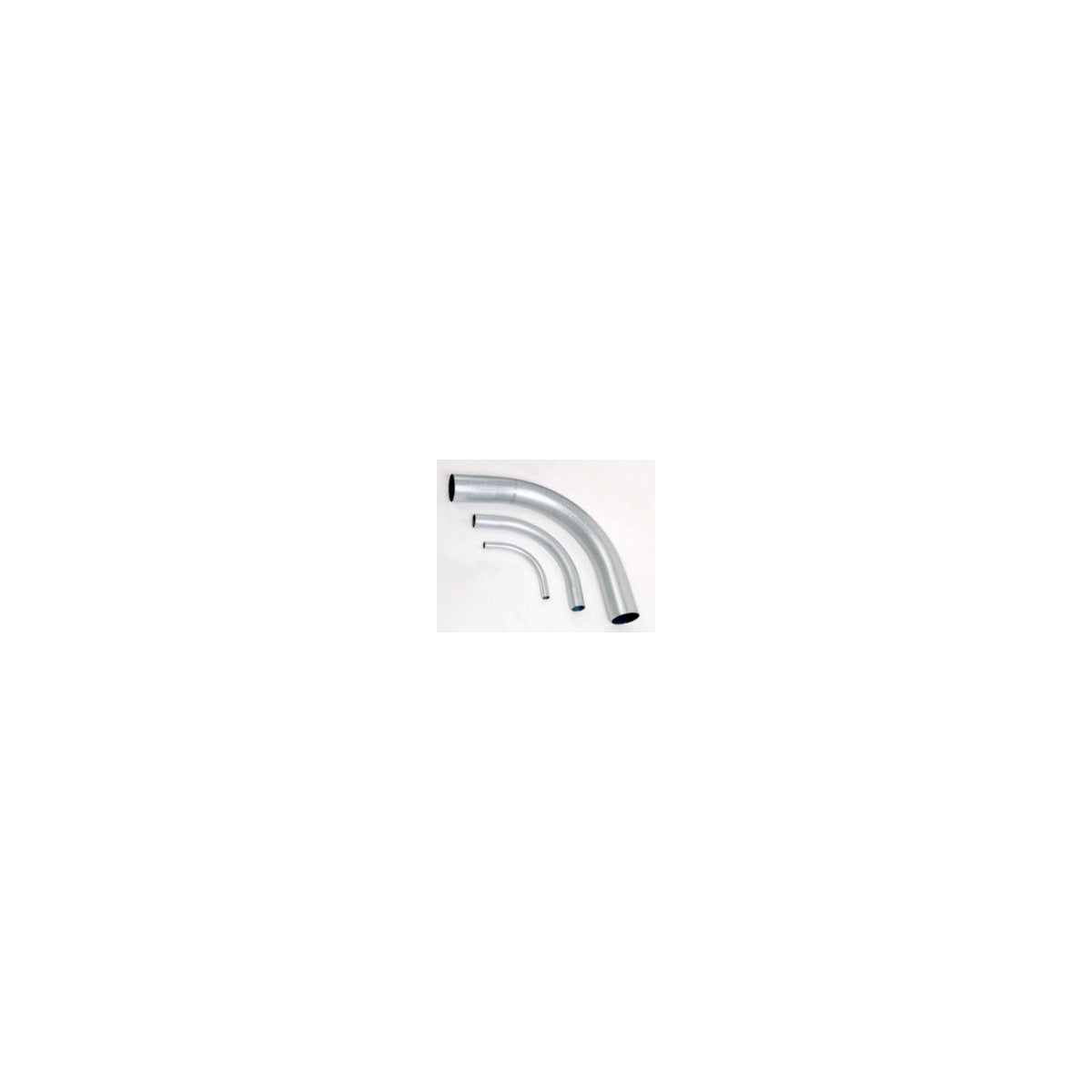

The PICOMA 7362 6 GRC Elbow is designed for use in electrical raceway systems to change the direction of conduit runs by 90 degrees with a 48-inch radius. Manufactured by Picoma Industries, this rigid aluminum conduit elbow is suitable for electrical distributors and switchgear suppliers seeking durable components for wire and cable routing. Its construction ensures reliable physical protection for electrical conductors in commercial and industrial lighting solutions and wiring installations.

Specifications

• Manufacturer: Picoma Industries
• Manufacturer Part #: 7362
• Inside Diameter: 6.093 in.
• Outside Diameter: 6.625 in.
• Product Weight: 1440 lbs.
• Flexibility: No
• Application: Used to change the direction of a raceway

Features

• Rigid aluminum construction for corrosion resistance and durability
• Designed with a 90-degree bend and 48-inch radius for smooth conduit transitions
• Complies with UL-6A, CSA C22.2 No. 45.2, ANSI C80.5, and Federal specification WW-540A standards (per industry aluminum conduit compliance)

Downloads & Links

• Spec Sheet
