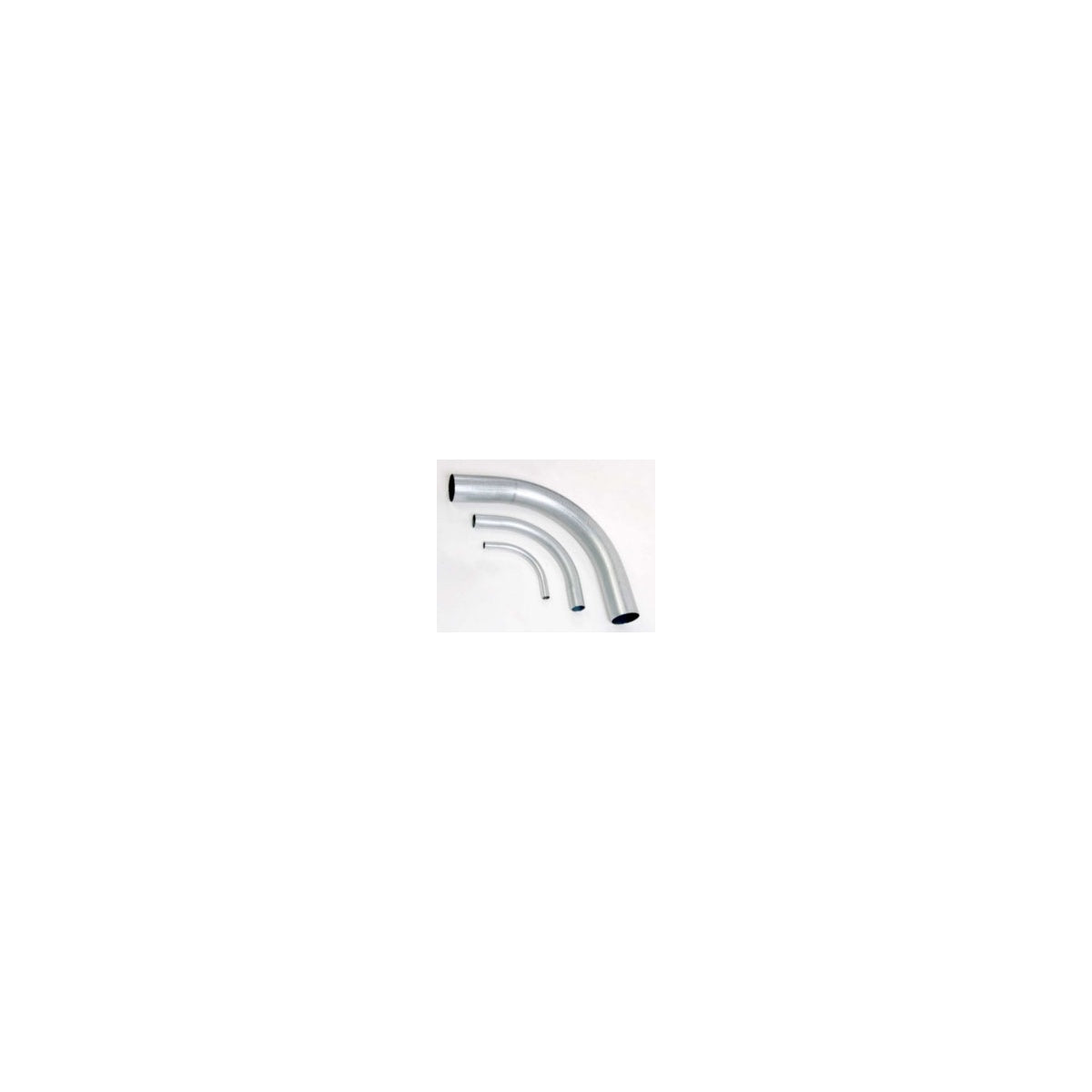

PICOMA 7303 5 GRC ELBOW 45DEG 48RAD – Electrical Conduit Elbow

The PICOMA 7303 5 GRC Elbow is designed for use in electrical distribution systems to change the direction of a raceway. This rigid aluminum conduit elbow provides a 45-degree bend with a 48-inch radius, suitable for wire and cable routing in commercial and industrial electrical installations. It is ideal for electrical distributors and switchgear suppliers requiring durable, precise conduit fittings for lighting solutions and electrical wiring protection.

Specifications

• Manufacturer: Picoma Industries
• Manufacturer Part #: 7303
• Inside Diameter: 5.073 in.
• Outside Diameter: 5.563 in.
• Product Weight: 95.2 lbs
• Flexibility: No
• Application: Used to change the direction of a raceway
• UPC: 786692025506

Features

• Rigid aluminum construction compliant with UL-6A and CSA C22.2 No. 45.2 standards (per Wheatland Tube aluminum conduit compliance on page 2)
• Designed for superior physical protection of electrical conductors
• Precision 45-degree bend with large 48-inch radius for smooth conduit runs
• Non-flexible design ensures consistent and secure conduit alignment

Downloads & Links

• Spec Sheet
