PICOMA 7012 3-1/2 GRC ELBOW 90DEG 30RAD
SKU: #9656
Part: #7012
UPC: 786692002873
PICOMA 7012 3-1/2 GRC ELBOW 90DEG 30RAD
SKU: #9656
Part: #7012
UPC: 786692002873
Description

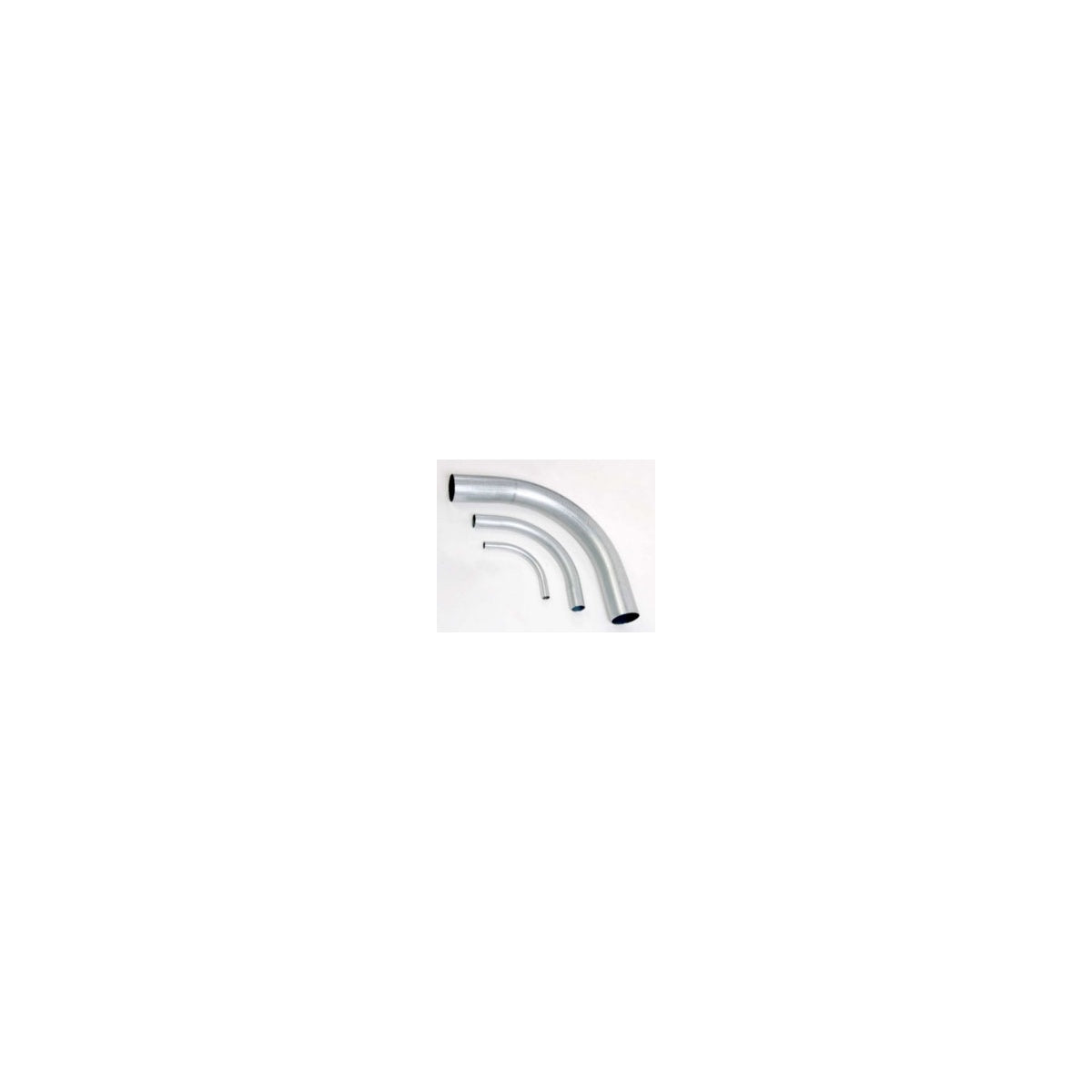

PICOMA 7012 3-1/2 GRC ELBOW 90DEG 30RAD – Rigid Aluminum Conduit Elbow
The PICOMA 7012 3-1/2 GRC Elbow is designed to change the direction of a raceway in electrical conduit systems. This rigid aluminum elbow provides reliable physical protection for electrical conductors and is suitable for use in wire and cable installations. It is a key component for electrical distributors and lighting solutions providers requiring durable conduit fittings. The elbow features a 90-degree bend with a 30-radius, facilitating smooth directional changes in conduit runs.
Specifications
- Manufacturer: Picoma Industries
- Manufacturer Part #: 7012
- Inside Diameter: 3.570 in.
- Outside Diameter: 4.000 in.
- Product Weight: 42 lbs.
- Flexibility: No
- Application: Used to change the direction of a raceway
- UPC: 786692002873
Features
- Rigid aluminum construction compliant with ANSI C80.5 and UL-6A standards
- Provides superior physical protection for electrical conductors
- Designed for use with rigid aluminum conduit systems
- Ensures smooth 90-degree directional changes with a 30-radius bend
- Non-flexible design for stable and secure conduit runs
