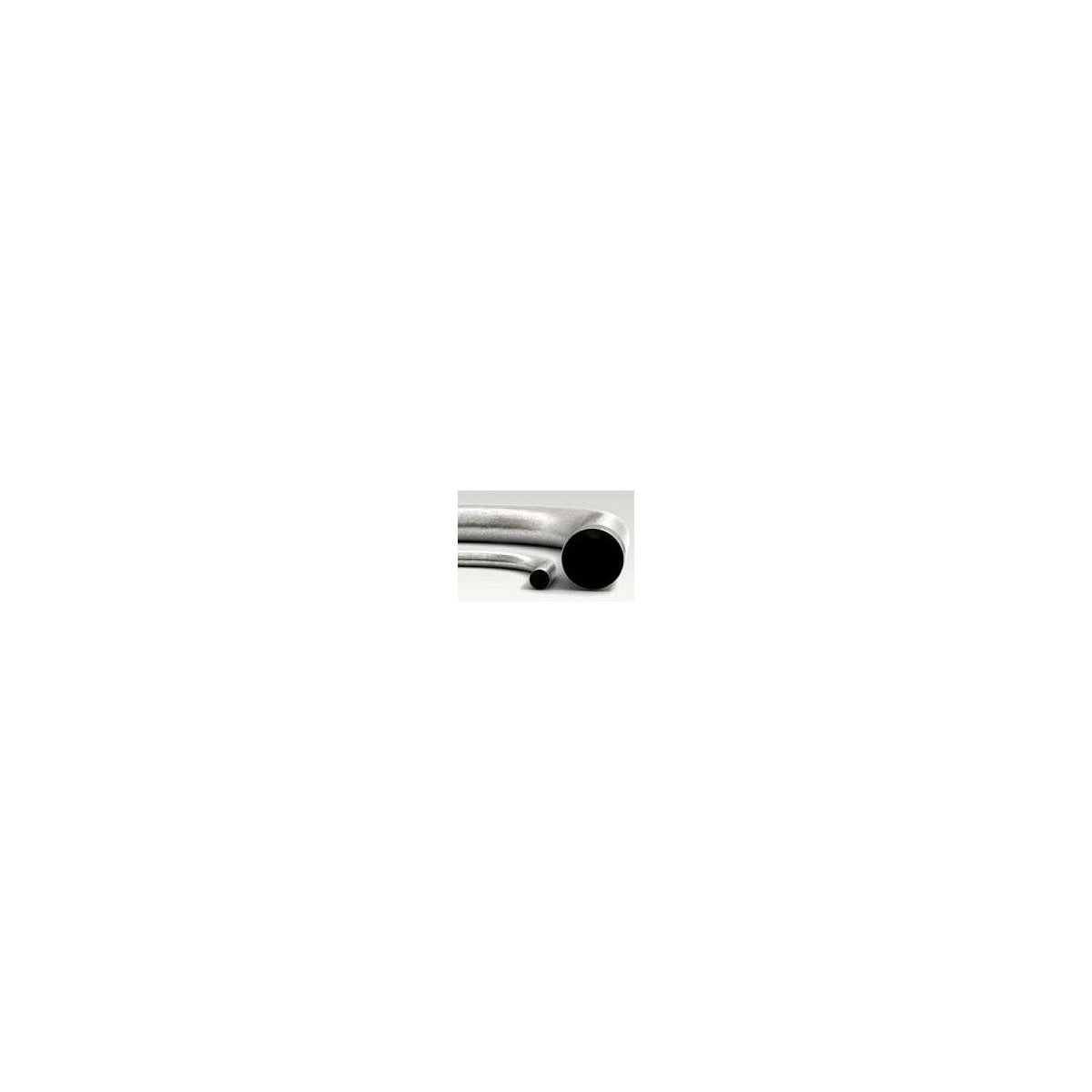

PICOMA 6898 2 GRC ELBOW 90DEG 24RAD – Electrical Conduit Elbow

The PICOMA 6898 2 GRC Elbow 90 Degree 24 Radius is designed for use in electrical distribution systems to change the direction of a raceway. This rigid metal conduit elbow is suitable for applications requiring precise conduit bends and is commonly used by electrical distributors and switchgear suppliers to facilitate wire and cable routing in lighting solutions and electrical installations.

Specifications

• Manufacturer: Picoma Industries
• Manufacturer Part #: 6898
• Inside Diameter: 2.083 in.
• Outside Diameter: 2.375 in.
• Product Weight: 14.0000 lbs
• Flexibility: No
• Application: Used to change the direction of a raceway
• UPC: 786692002644

Features

• 90-degree bend with a 24 radius for standard directional changes in conduit runs
• Rigid construction ensures durability and compliance with ANSI and UL standards
• Designed for use with 2-inch trade size rigid metal conduit systems
• Non-flexible elbow for stable and secure conduit alignment

Downloads & Links

• Spec Sheet
