PICOMA 6793 3-1/2 GRC ELBOW 90DEG 18RAD
SKU: #9522
Part: #6793
UPC: 786692002477
PICOMA 6793 3-1/2 GRC ELBOW 90DEG 18RAD
SKU: #9522
Part: #6793
UPC: 786692002477
Description

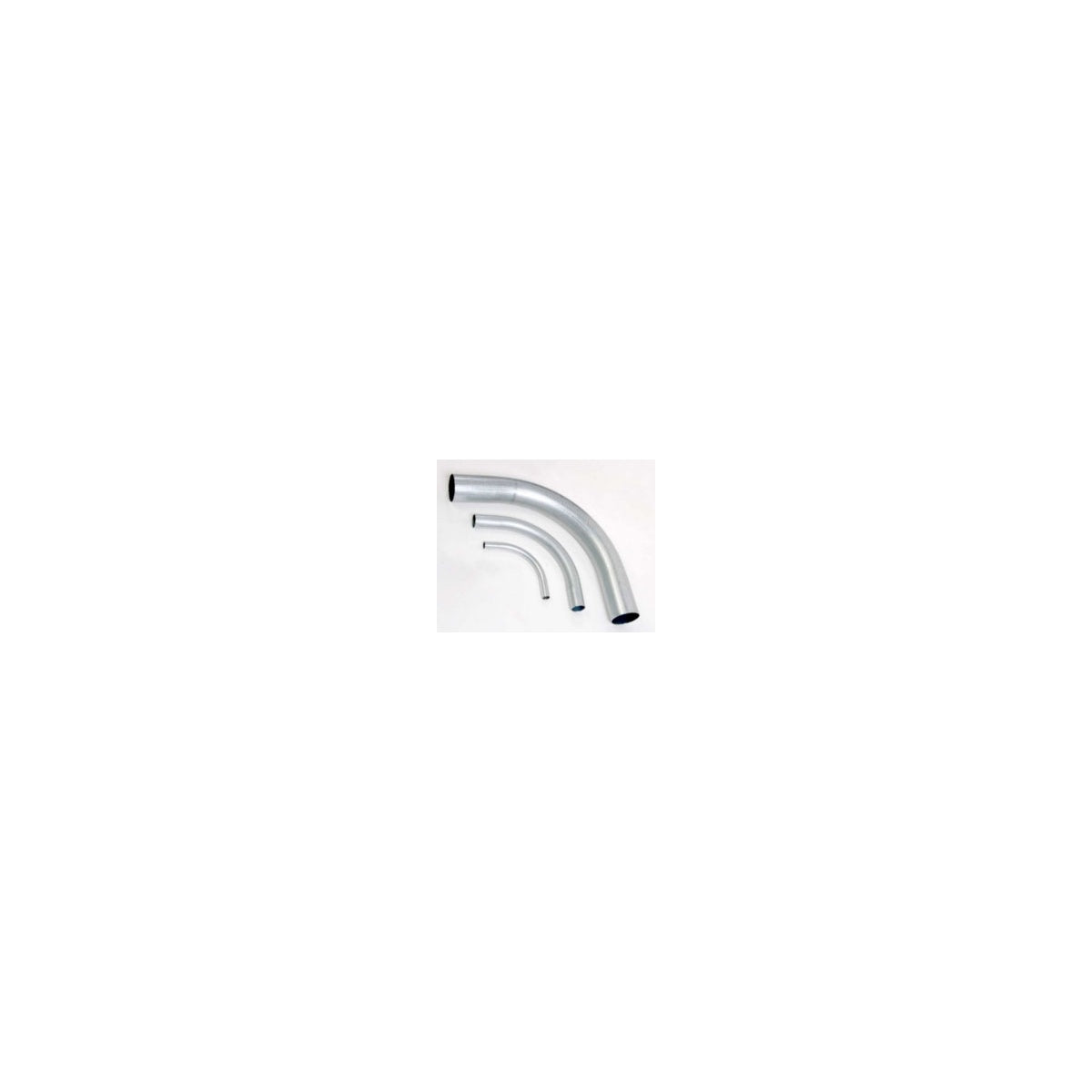

PICOMA 6793 3-1/2 GRC ELBOW 90DEG 18RAD – Aluminum Conduit Elbow
The PICOMA 6793 3-1/2 GRC Elbow is designed to change the direction of a raceway in electrical conduit systems. Manufactured by Picoma Industries, this rigid aluminum conduit elbow is a key component for electrical distributors and lighting solutions providers requiring durable and precise conduit fittings. It is suitable for use in wire and cable installations where a 90-degree bend with an 18-inch radius is needed, ensuring proper conduit routing and protection of electrical conductors.
Specifications
- Manufacturer: Picoma Industries
- Manufacturer Part #: 6793
- Inside Diameter: 3.570 in.
- Outside Diameter: 4.000 in.
- Product Weight: 31.0000 lbs
- Flexibility: No
- Application: Used to change the direction of a raceway
Features
- Rigid aluminum construction compliant with UL-6A, CSA C22.2 No. 45.2, and ANSI C80.5 standards
- Special large-radius 90° elbow with an 18-inch radius for smooth conduit bends
- Provides superior physical protection for electrical conductors
- Designed for use in electrical conduit systems requiring precise directional changes
