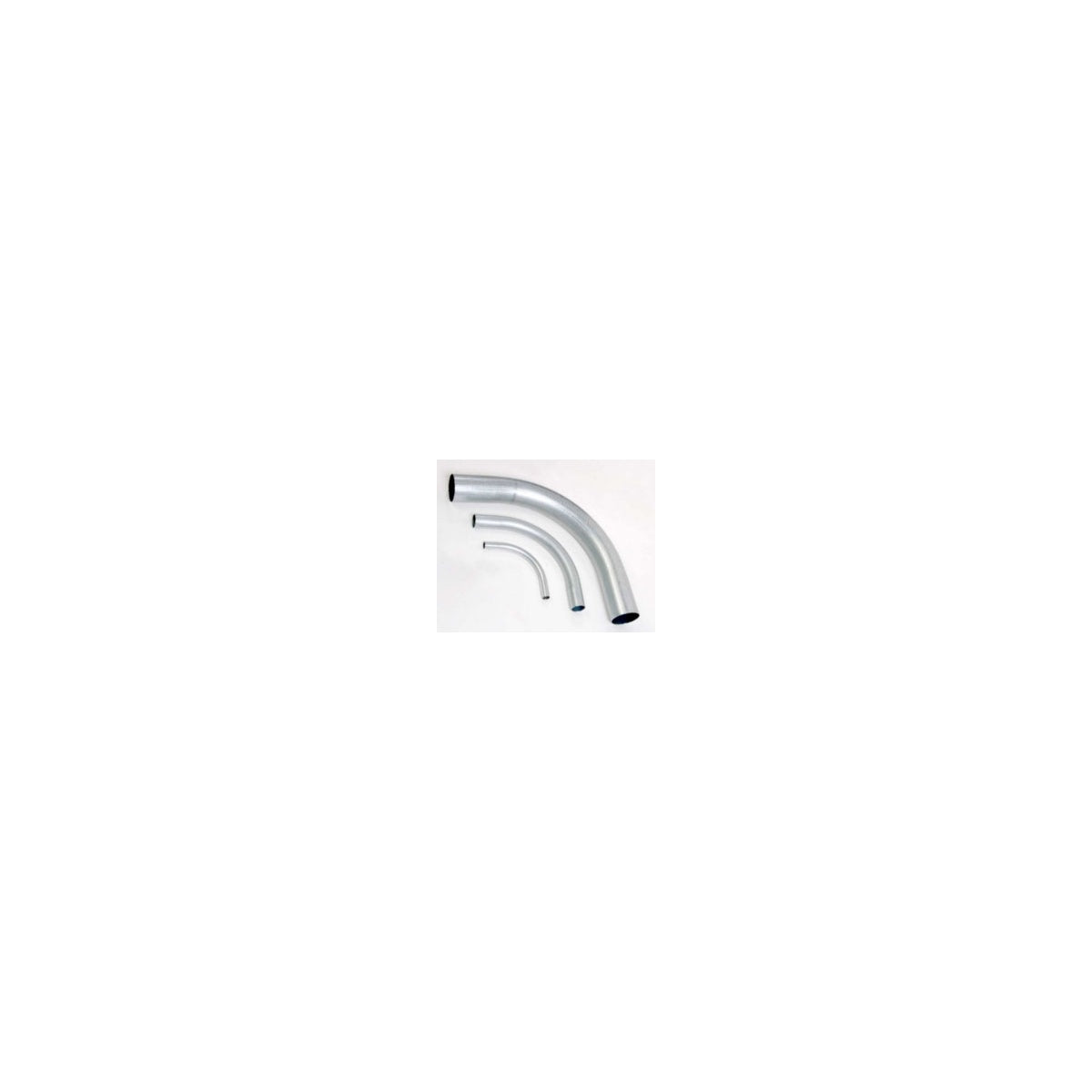

PICOMA 6788 1-1/4 GRC ELBOW 90DEG 18RAD – Rigid Aluminum Conduit Elbow

The PICOMA 6788 is a 90-degree large-radius rigid aluminum conduit elbow designed to change the direction of a raceway in electrical conduit systems. Manufactured by Picoma Industries, this elbow provides durable physical protection for electrical conductors and is suitable for use by electrical distributors and switchgear suppliers requiring reliable conduit fittings. It is specifically engineered for wire and cable routing in lighting solutions and general electrical installations.

Specifications

• Manufacturer: Picoma Industries
• Manufacturer Part #: 6788
• Inside Diameter: 1.394 in.
• Outside Diameter: 1.660 in.
• Product Weight: 7.0000 lbs
• Application: Used to change the direction of a raceway
• Flexibility: No

Features

• Large radius 90-degree bend (18 radius) reduces conduit stress and facilitates easier wire pulling
• Rigid aluminum construction ensures corrosion resistance and long service life
• Designed for compatibility with 1-1/4 inch trade size rigid aluminum conduit systems
• Provides superior physical protection for electrical conductors

Downloads & Links

• Spec Sheet
