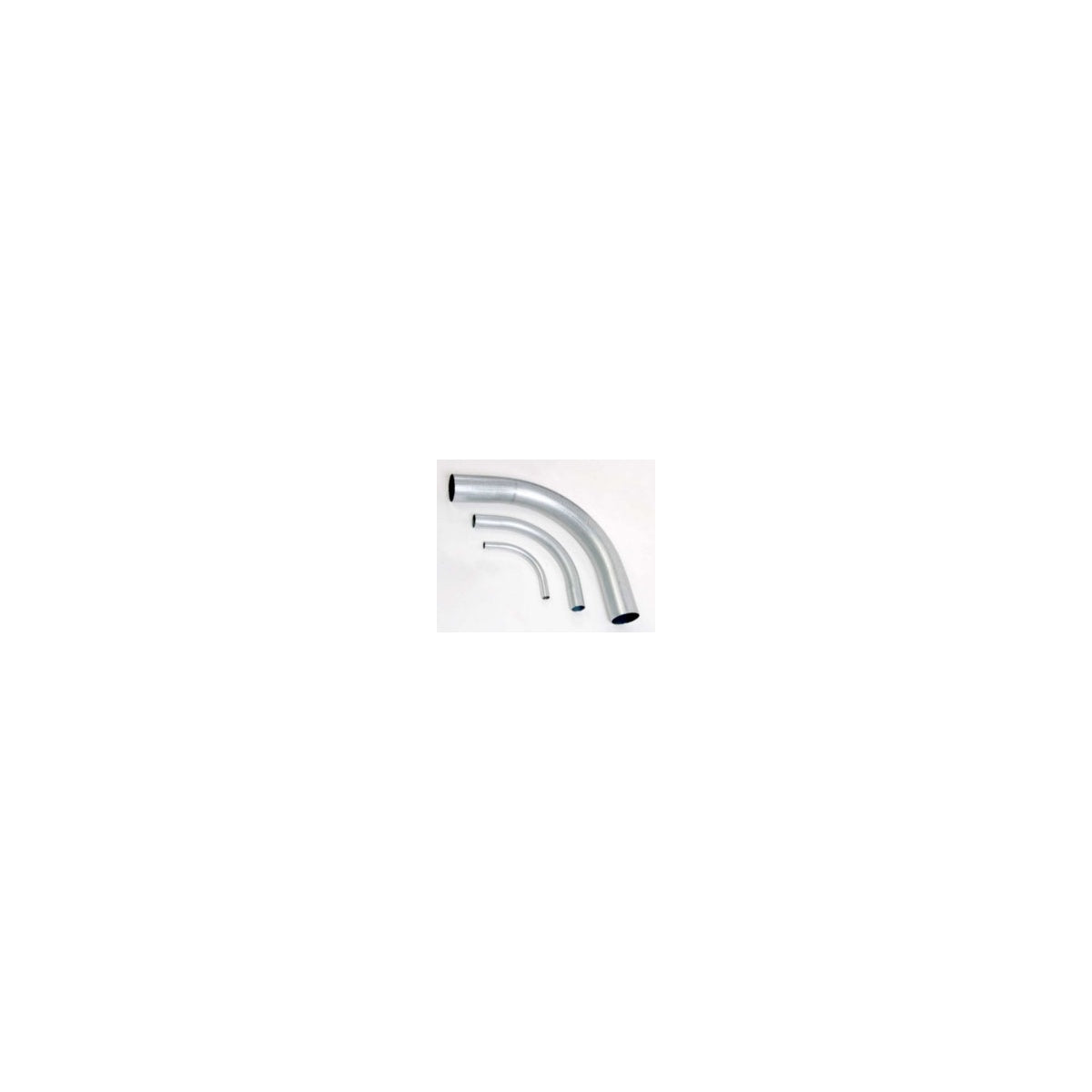

PICOMA 6686 3 GRC ELBOW 90DEG 15RAD – Rigid Aluminum Conduit Elbow

The PICOMA 6686 3 GRC Elbow is designed to change the direction of a raceway by 90 degrees with a 15-inch radius. This rigid aluminum conduit elbow provides superior physical protection for electrical conductors and is suitable for use in electrical distribution and lighting solutions. Manufactured by Picoma Industries, it is a reliable component for wire and cable installations in commercial and industrial applications.

Specifications

• Manufacturer: Picoma Industries
• Manufacturer Part #: 6686
• Inside Diameter: 3.090 in.
• Outside Diameter: 3.500 in.
• Product Weight: 25.0000 lbs.
• Application: Used to change the direction of a raceway
• Flexibility: No
• UPC: 786692002262

Features

• Rigid aluminum construction for durability and corrosion resistance
• 90-degree bend with 15-inch radius for smooth directional changes
• Complies with UL-6A, CSA C22.2 No. 45.2, ANSI C80.5, and Federal specification WW-540A standards (as per rigid aluminum conduit compliance on page 2)
• Provides superior physical protection for electrical conductors

Downloads & Links

• Spec Sheet
