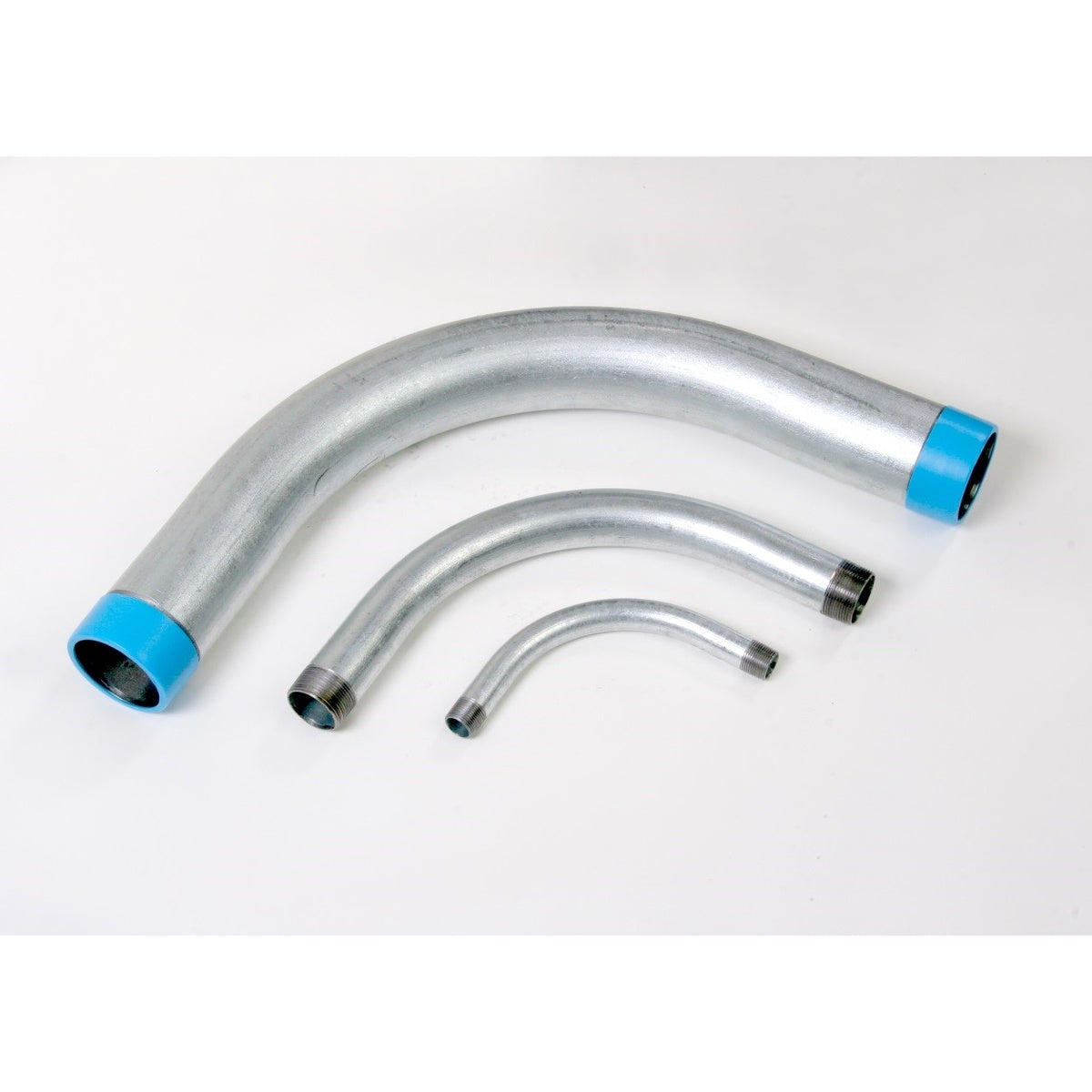

PICOMA 6503 2-1/2 ALUM ELBOW 90DEG – Aluminum Electrical Conduit Elbow

The PICOMA 6503 2-1/2 Aluminum Elbow is designed to change the direction of a raceway in electrical conduit systems. Manufactured by Picoma Industries, this rigid aluminum elbow is suitable for electrical distributors and lighting solutions providers requiring durable and compliant fittings for wire and cable management. It is commonly used in switchgear supplier applications and other electrical installations where a 90-degree directional change is needed.

Specifications

• Manufacturer: Picoma Industries
• Manufacturer Part #: 6503
• Inside Diameter: 2.489 in.
• Outside Diameter: 2.875 in.
• Product Weight: 250 lbs.
• Flexibility: No
• UPC: 786692011677

Features

• Rigid aluminum construction for corrosion resistance and longevity
• Designed for 90° directional changes in raceways
• Complies with UL-6A, CSA C22.2 No. 45.2, ANSI C80.5, and Federal specification WW-540A (as per industry standards for rigid aluminum elbows)
• Thread protectors supplied on each end for protection during handling and installation (standard practice for trade sizes 2 ½ and larger)

Downloads & Links

• Spec Sheet
