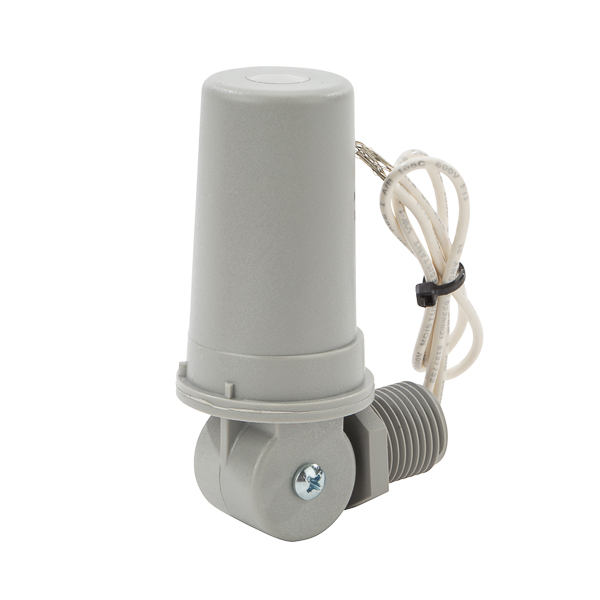

Photo Sensor for DLC Zone Control - Outdoor Lighting Sensor

This Photo Sensor for DLC Zone Control by NSI Industries is designed for outdoor lighting and HVAC control applications. It serves as a low voltage photosensor compatible with DLC 400BP time switches, enabling automated lighting control based on ambient light levels. The sensor is suitable for use by electrical distributors and lighting solutions providers integrating wire and cable with switchgear supplier systems for energy-efficient outdoor lighting management.

Specifications

• Manufacturer Part #: EPC2
• Manufacturer: NSI Industries
• Mounting: Conduit Mount
• Product Weight: 0.3 lbs
• Application: Outdoor Lighting - HVAC Control
• Base: NSI
• UPC: 786261821201

Features

• Low voltage photosensor compatible with DLC 400BP time switches
• All Lexan® enclosure for impact and vandal resistance
• Mounts on ½” conduit with 180° swivel for adjustable positioning
• Dome and base ultrasonically welded for maximum strength
• Light level adjustment available from 1 to 100 footcandles on compatible time switches
• Maximum twisted pair wire run length: 250 ft with 22 AWG, 500 ft with 18 AWG
