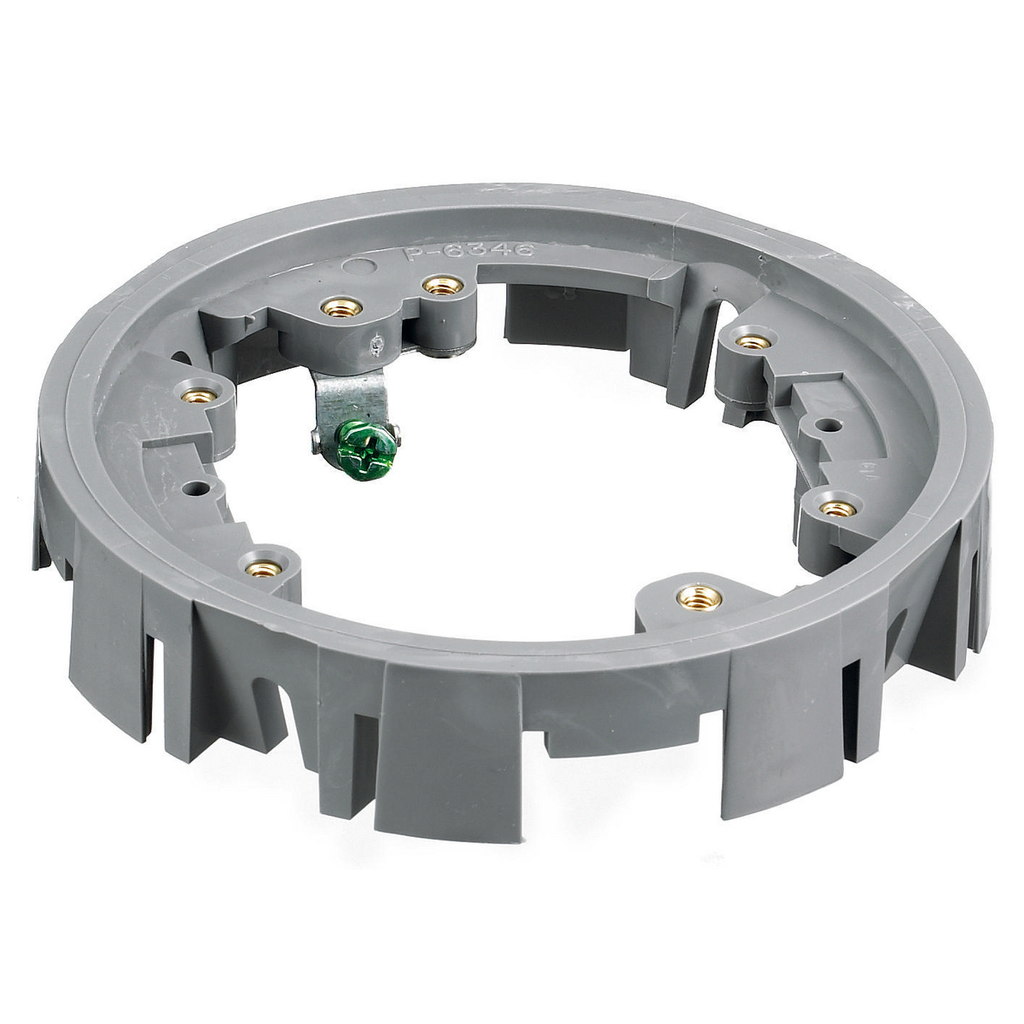

PFB1 Adapter for Concrete Floor Boxes

The PFB1 Adapter is a molded thermoplastic adapter ring designed for use with concrete floor boxes. It provides a secure mounting solution with screw mount installation, suitable for both plastic and metallic floor box covers. This adapter is ideal for electrical distributors and switchgear suppliers looking for reliable components in lighting solutions and wire and cable installations in concrete flooring applications.

Specifications

• Application: For Use with Concrete Floor Boxes
• Material: Thermoplastic (PVC)
• Color: Gray
• Mounting Type: Screw Mount
• Dimensions: 4.79 in (Length) x 4.79 in (Width) x 0.97 in (Height)
• Construction: Molded
• Adapter Version: Round
• Retainer Clips: Clips slide into slots in box wall
• Industry Standards: UL/CSA, UL514
• EU RoHS Indicator: Yes
• UPC: 783585342474
• Country of Origin: United States
• Made in USA: Yes

Features

• Includes four hangers that snap onto the adapter providing added support
• Hangers designed for tile floors, along with four retainer clips and screws included
• Compatible with both plastic and metallic floor box covers
