Permaground Copper U-Bolt Ground Clamp, Conductor Range 250-2/0 Sol, Pipe Size 3-1/2in, Ground Rod Sizes 3-1/2 to 4in, UL, CSA
SKU: #257056
Part: #GPL-52
UPC: 783669262988
Permaground Copper U-Bolt Ground Clamp, Conductor Range 250-2/0 Sol, Pipe Size 3-1/2in, Ground Rod Sizes 3-1/2 to 4in, UL, CSA
SKU: #257056
Part: #GPL-52
UPC: 783669262988
Description

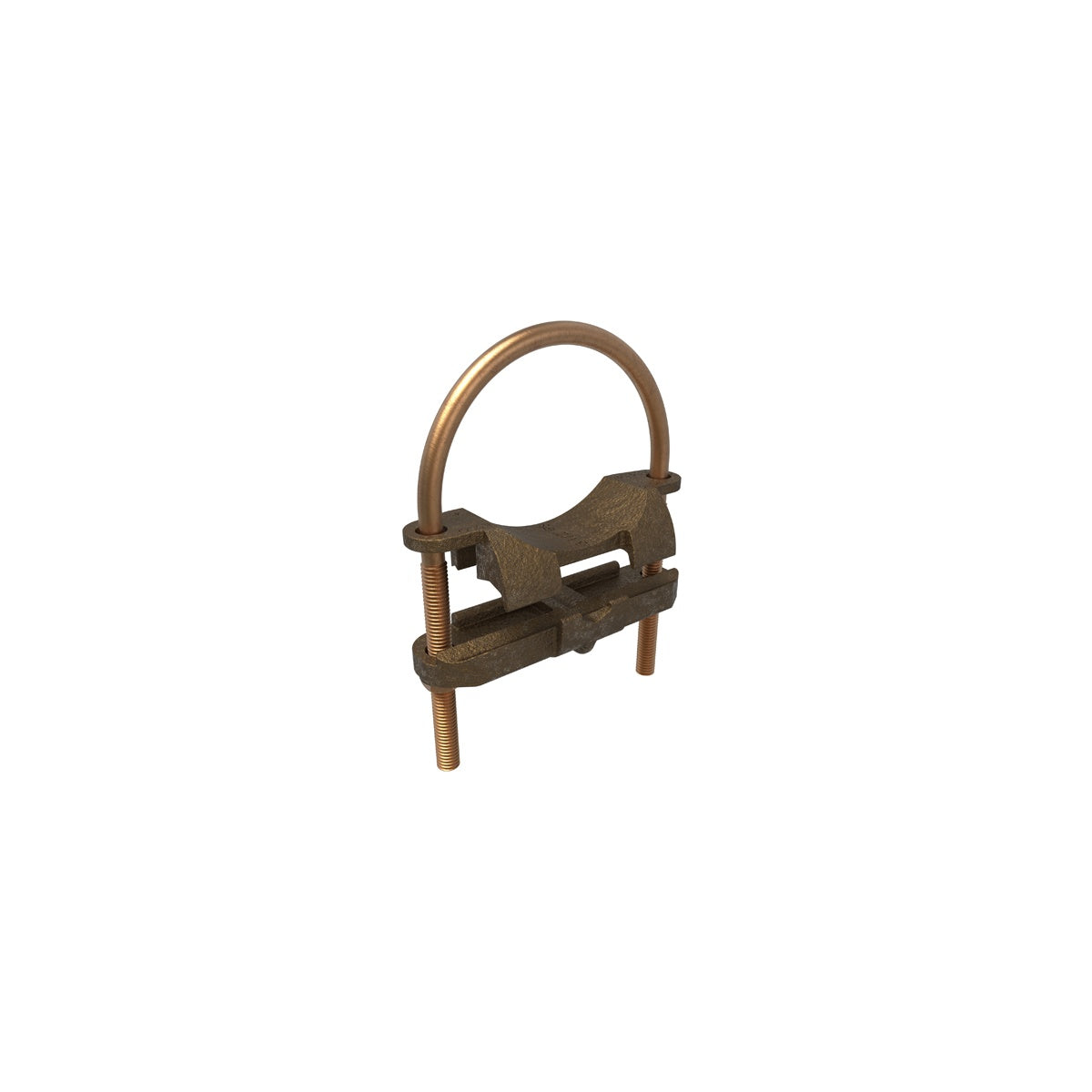

Permaground Copper U-Bolt Ground Clamp – Electrical Grounding Solutions
The Permaground Copper U-Bolt Ground Clamp by ILSCO is designed for secure grounding connections in electrical systems. Suitable for use in wire and cable grounding applications, this clamp accommodates conductor sizes ranging from 250 to 2/0 solid copper, pipe sizes of 3-1/2 inches, and ground rod sizes from 3-1/2 to 4 inches. It is UL and CSA listed, making it a reliable component for electrical distributors and switchgear suppliers requiring certified grounding hardware.
Specifications
- Manufacturer Part #: GPL-52
- Conductor Range: 250-2/0 Solid Copper
- Pipe Size: 3-1/2 inches
- Ground Rod Size: 3-1/2 to 4 inches
- Product Weight: 2.1920 lbs
- Certifications: UL, CSA
- Dimensions: Height 6.790 in, Width 5.250 in, Depth 1.599 in
Features
- Constructed with a copper U-bolt for enhanced conductivity
- Includes post clamp and conductor clamp for secure attachment
- Utilizes 3/8 lock washers and 3/8-16 hex nuts for reliable fastening
- Designed for durable and long-lasting grounding connections
- Compatible with a range of conductor and rod sizes for versatile use
