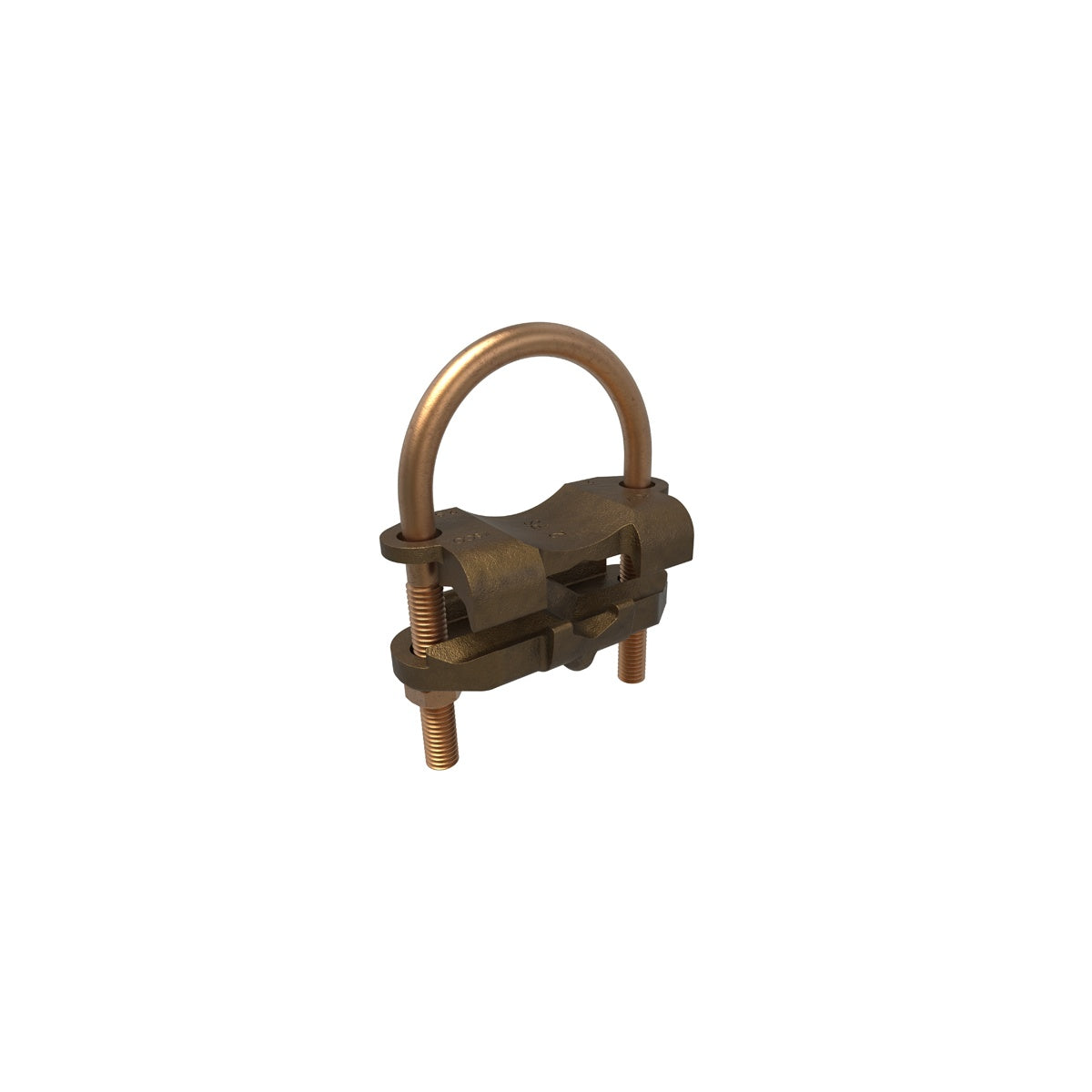

Permaground Copper U-Bolt Ground Clamp, Conductor Range 250-2/0 Sol, Pipe Size 2in, Ground Rod Sizes 2 to 2-3/8in, UL, CSA
SKU: #257027
Part: #GPL-34
UPC: 783669262629
Permaground Copper U-Bolt Ground Clamp, Conductor Range 250-2/0 Sol, Pipe Size 2in, Ground Rod Sizes 2 to 2-3/8in, UL, CSA
SKU: #257027
Part: #GPL-34
UPC: 783669262629
Description
Permaground Copper U-Bolt Ground Clamp – Electrical Grounding Solutions
The Permaground Copper U-Bolt Ground Clamp by ILSCO is designed for secure grounding connections in electrical distribution and wire and cable installations. It accommodates conductor sizes from 250 to 2/0 solid, fits 2-inch pipe sizes, and supports ground rod sizes ranging from 2 to 2-3/8 inches. This clamp is UL and CSA certified, making it suitable for professional electrical contractors and switchgear suppliers requiring reliable grounding components.
Specifications
- Manufacturer: ILSCO
- Manufacturer Part Number: GPL-34
- UPC: 0783669262629
- Conductor Range: 250-2/0 Solid
- Pipe Size: 2 inches
- Ground Rod Sizes: 2 to 2-3/8 inches
- Product Weight: 1.2410 lbs
- Certifications: UL, CSA
- Dimensions: Height 4.665 in, Width 3.625 in, Depth 1.562 in (from assembly drawing)
Features
- Constructed with copper for optimal conductivity and corrosion resistance
- U-bolt design ensures secure and stable clamping of conductors and ground rods
- Includes components such as conductor clamp, post clamp, U-bolt, lock washers, and hex nuts for complete assembly
- Designed for use in grounding applications in electrical distribution systems
